SmartSystem Matrix One R2 Bundle Vlock

- Matrix R2 Sled -
Every technology in cinema production has its peculiarities.

The goal is to look forward how to mix them to create something new, something special.

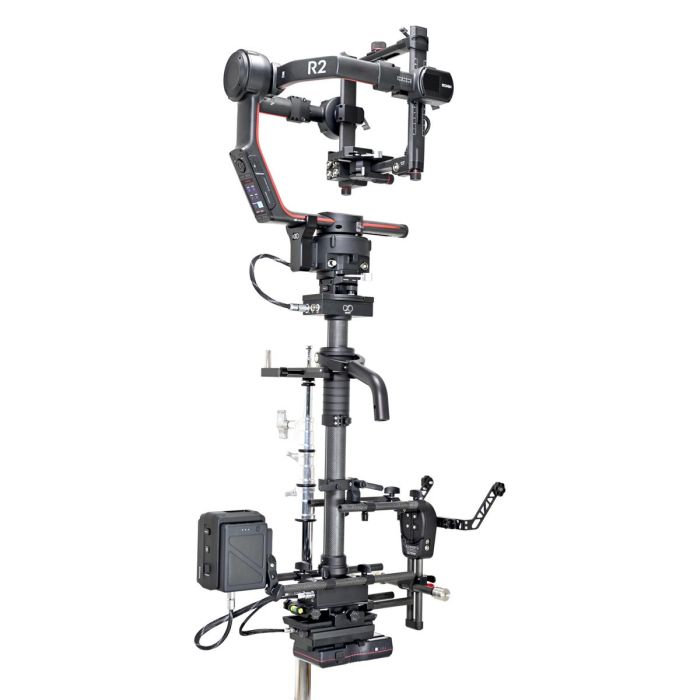

DJI RONIN 2 + Matrix SLED = Matrix R2

Ultra smooth gimbal 5-AXIS CNC machined completely Tool Free 40mm (1.57 ") telescopic carbon fiber post[from 20.86 " to 37 " (530mm to 940mm)]

Unique Ronin 2 tilt-able Battery plate Use them as standard on a sled NO EXTERNAL cable to power your favourite gimbal the MAGIC is all INSIDE the sled

Exclusive Monitor Stabilization System
Your monitor will be always horizontal no matter what is the angle of the sled post.

Thanks to Ronin 2 YAW Locker forget the annoying sound when used in PAN Lock mode. The exclusive Ronin 2 Plate Adapter let you mount the gimbal securely to the sled post.

The modularity of Matrix Sleds let you mount the micrometric head used for camera on the lower part of the sled for a perfect balance of the whole system.

An useful advantage: It can be reconfigures to became a standard Sled with all the bells and whistels of a pro system. The micrometric non floating head with automatic locking system can be putted back on its original position in seconds.

Vlock Battery Plate equipped with 1/4 and 3/8 threaded holes can be mounted on standard position over the Ronin 2 Battery plate adapter.

The horizontal system can be detached to let a standard monitor mount to be attached to the sled and of course, the lower part can be equipped with C-Battery like PRO Sled or Extreme Sled


- Arm X1 -
Designed, engineered, manufactured and hand built exclusively in Italy.

Every single part of Arm X1 is CNC milled inside our facility from the starting stock to the end shape. There are various Aluminum alloys out there but only AL7075 Ergal alloy, the most performing one, was used for Arm X1. Ergal 7075 aluminum guarantees performance similar to that offered by carbon steel at a fraction of the weight. For this reason it is used on high performance automotive, aerospace and robotics industry. Special alloys can lead to special dimensions. Arm X1 is currently the slimmest arm on the market with an outstanding load capabilities.

Tons of Features within an Unique Design
Different design, different approach to problems... like the Arm post system, thought to be reliable and rigid with plenty of options available.

Mathematically speaking, the best answer that a system can give to an external stimulus is what is called "Critically damped" one. The tricky part is this answer is strictly connected to the load applied and to the "force" of the springs used to counterbalance that load. So the question is: How can I get that?

The patented design of XTune, let you tune your ArmX1 to answer exactly as you prefer interacting as a "selective multiplier" of the force of the springs installed.

From super smooth to very responsive... you have the control!

The set life is frantic and setting up an arm for a new load could be time consuming, especially when the new setup is dramatically different respect to the previous shot...

The use of compression springs and the unique leverism obtained with XTune led us to embrace the power of the springs inside the canisters...The result is a design that give to you plenty of space be canisters so no more accidentally stuck clothes, cables and you know.... fingers!

Based on industry standard mating block with a specific attention to right-handed or left-handed operators as well as front mount and backmount vest.

Despite the tiny dimensions, Arm X1 can lift 32kg (70.4 lbs) with an ultimate maximum payload of 34kg (74.9 lbs). The maximum boom range is 728mm (28.5"). Ranging from 6kg (13.2lbs) up to 34kg (74.9lbs), you can definitely fly your current or future setup.

Since March 2021, all the ArmX1 will be equipped with DYNASPRING exclusive Patent Pending Technology that dynamically change and adapt the overall elastic response of the installed spring all over the boom range ensuring an extremely soft operation.

The Suitable Protection for a Valuable Product
A custom resin case with Military specs like DEF STAN 81-41 / STANAG 4280, ATA300 and IP67 is included to carry safely, on your next adventure, your brand new Arm X1.


- Vest Lite -
Engineered around a proven design and based on top quality materials.

Especially for female operators, the possibility to move the thoracic plate on the fly means the ability of the vest to perfectly adapt itself to the female body. Every single plate can be moved independently ensuring the the maximum comfort for operators. The shape of the hip pad and hip support ensures maximum leg freedom and, at the same time, stability for the vest.

The thoracic pads can be stacked in order to give to the operator the best possible comfort. Based on Industry Standard Mating block made from solid Ergal T7075 Aluminum. The ratchet system let you increase the tightening force progressively. The passage from Regular to Goofy operation is fast and straightforward.

The Black/Yellow handle on the back was designed not only to ensure a safe grab for the operator assistant, but it can be used as safety handle in emergency cases. Every textile part can be detached from the Vest and can be easily washed. The 100% cotton lining ensures strengths and durability.

Every component of Vest lite is not molded but milled from solid aluminum, shoot peened and hard anodized to ensure the maximum durability. Extensive tests and studies were made to grant strength to every component but above all to ensure the maximum lightness.

With only 2.9kg (6.4lbs) of weight, Vest lite is most probably the lightest Vest on the market today. A padded backpack is included in the package to carry safely your new vest.


- Hard Case -
Trolley based on Explorer Cases 7745 modified in order to allow the protection for a SMARTCAM ARM (X-LITE or X1) and for a SMARTCAM SLED (MATRIX series).

SmartSystem Matrix One R2 Bundle Features

• Arm X1 Features
• Double section articulated stabilization arm with an ultimate payload of 34kg (74.9lbs) based on an exclusive Patented Design
• Extremely light and compact: it's one of the smallest and lightest stabilizer arm in the market (only 45mm of width)
• Exclusive X-Tune system allows the operator to set up Arm X1 to obtain the correct dynamic response for its needs
• Completely milled from highest quality Ergal 7075 aluminum, shot peened and hard anodized for ultimate strength and lightness (only 4.5kg in its heavier configuration)
• Equipped with Patent Pending DynaSpring Technology that dynamically adapt the answer of the springs all over the boom range
• Perfectly compatible with every type of professional stabilizer Vest or Sled on the market
• Matrix Sled R2 Features
• Professional Sled with 40mm Telescopic Post designed to work with DJI Ronin 2 thanks to the Ronin 2 Plate adapter included in the bundle
• No external cable needed to power Ronin 2. Forget the umbilical cable era
• The standard Ronin 2 Battery can be attached as regular batteries with the ability to move fore-aft on carbon fiber rods and to tilt +90 Degree -90 Degree for perfect Balance
• Horizon Monitor system included in the bundle
• The topstage can be assembled directly on the lower part of the sled to grant ultra precision balancing with the Standard VLock or 3Studs battery plate included in the bundle
• Vest Lite Features
• Great comfort and Perfect fit to any operator height and weight, male or female
• Most probably, the lightest vest on the market: just 2.9kgs (6.4 lbs)
• Buckle system for quick tighten and release operation
• Memory foam padding
• Balanced weight distribution
• Removable and washable textile parts
• Standard Arm connector. Compatible with all Professional Arms on the market
• Hard Case Features
• Polypropylene outer case
• Foam rubber inner padding
• Transport handle
