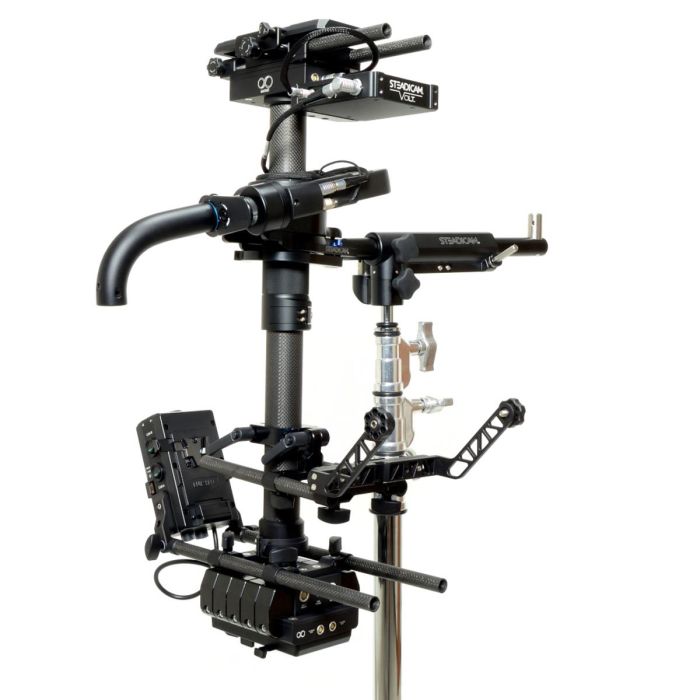

SmartSystem Matrix Sled Chimera Vlock

by SmartSystem
Dostupnost: Isporuka 14-20 dana
SKU
smart-8561
  • As for the EXTREME sled, it can be possible to balance the heavier cameras
  • The Micrometric non floating head backlash compensated topstage
  • The Monitor LCD holder on separate rods it is possible to achieve max stiffness & flexibility
25.161,00 € 20.128,80 €

Sadržaj pakiranja

  • Camera Sled
  • Smarthead Camera Platform
  • 2-Section Carbon Fiber Center Post
  • Dual V-Lock Mount Battery Plate
  • C-Battery V-Lock Mount Battery Plate
  • 10x Counterweight (8 oz)
  • Docking Bracket
  • LCD Monitor Mount
  • Hard-Shell Carry Case

Various mounting options for Volt brain
• Under top stage junction box with optional bracket and top stage rods for additional use
• Directly on top stage with in bundle bracket to be extremely close to camera
• Directly on top stage as close as possible to camera with optional brackets and carbon fiber rods for a safe and decoupled connection for your low mode monitor

It is a fact that the best performance can only be obtained on gimbals designed to natively integrate the Volt system. To grant the most integrated experience and best stabilization, Matrix Sled Chimera is genetically equipped with M2 gimbal designed by

Dedicated or shared power solutions
Every brushless gimbal user knows that motors are power hungry and if underpowered, vibrations or unwanted glitches are just behind the corner.

Thanks to the dedicated power line present on every Matrix Sleds the vibrations perceived on the gimbal due to insufficient power are an ancient memory. SmartSystem recommends, whenever possible, to prefer the dedicated power path via C-battery.

The Chimera version is the ultimate tool for Cinema cameras. The perfect fusion between all the specs of Matrix Sled Extreme and the technology offered by Volt system from Steadicam

As for the Extreme sled, it can be possible to balance the heavier cameras thanks to additional counterbalance weights included. The Micrometric non floating head backlash compensated topstage give to you a super stable Camera mount.

Thanks to the Monitor LCD holder on separate rods it is possible to achieve maximum stiffness and flexibility. The Innovative Battery management based on Double Vlock or 3Studs Batteries slots let you choose to operate +12V or 24V with an extra C-Battery Slots. A 1.575" / 40mm Carbon fiber Telescopic center post grants the ultimate rigidity of the system defining a total weight of 5.5kgs without counterbalance weights.

SmartSystem Matrix Sled Chimera Features

  • As for the EXTREME sled, it can be possible to balance the heavier cameras thanks to additional counterbalance weights included
  • The Micrometric non floating head backlash compensated topstage give to you a super stable Camera mount
  • Thanks to the Monitor LCD holder on separate rods it is possible to achieve maximum stiffness and flexibility
  • The Innovative Battery management based on Double 3Studs Batteries slots let you choose to operate +12V or 24V with an extra C-Battery Slots
  • A 1.575" Carbon fiber Telescopic center post grants the ultimate rigidity of the system defining a total weight of 5.5kgs without counterbalance weights

SmartSystem Matrix Sled Chimera Specifications

Mount

V-Lock Mount

Material

Carbon Fiber

Stabilizer Type

Single-Grip Handheld

Camera Mount

Camera Plate

Center Column Diameter

1.6" (40.0mm)

Number of Sections

2x

Power I/O

2x LEMO 2-Pin (14.8 VDC) Output
1x LEMO 4-Pin (14.8 VDC) Output

Video

1x BNC Input/Output

Counterweights

10x 8 oz (227g)

Battery Info

Required, not included

Battery Material

Lithium-ion

Battery Type

Non-universal

Battery Quantity

3

Weight

12.1 lbs (5.5kg)
