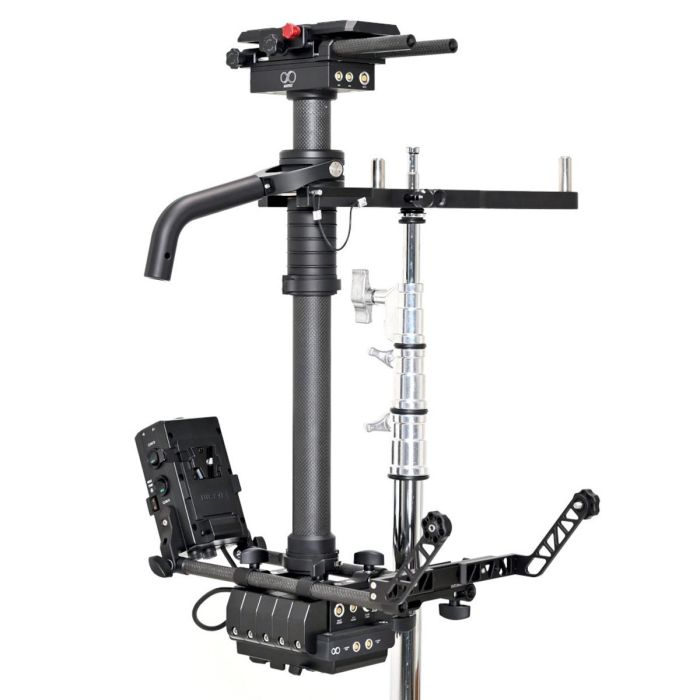

SmartSystem Matrix Sled Pro Vlock

by SmartSystem
Dostupnost: Isporuka 14-20 dana
SKU
smart-3550
  • Matrix Sled turns Static Balancing and Dynamic Balancing extremely easy
  • The PRO version is perfect for ENG cameras, even the heavier ones
  • Equipped with Cinema grade functionalities like Ultra fluid Gimbal/Micrometric non floating head
9.954,25 € 7.963,40 €

Sadržaj pakiranja

  • Camera Sled
  • Smarthead Camera Platform
  • 2-Section Carbon Fiber Center Post
  • Dual V-Lock Mount Battery Plate
  • C-Battery V-Lock Mount Battery Plate
  • 10x Counterweight (8 oz)
  • Docking Bracket
  • LCD Monitor Mount
  • Hard-Shell Carry Case

The SmartSystem Matrix Sled Pro makes Static Balancing and Dynamic Balancing extremely easy. The PRO version is perfect for ENG cameras, even heavier models, thanks to the additional counterbalance weights included. It has been equipped with cinema-grade sled functionalities like an ultra fluid gimbal and micrometric non-floating head. The Matrix Sled accommodates an LCD Monitor as well as duo Vlock Battery slots and additional C-Battery slots. Matrix Sled Pro is convenient to transport with its included hard case.

Matrix is Tool Free
• You won't need to use keys any longer to set up your Matrix Sled
• Has the operating speed you require
• The ability to make slight movements is essential. The use of an exclusive locking levers system and knobs with an ergonomic handle guarantee speed, accuracy and reliability.

1.5" Carbon Telescopic Post (40mm) Tool-Free
First rate carbon telescopic post with a 40mm diameter to ensure great strength while remaining lightweight.

Ultra-Fluid and Tool-Free Professional Gimbal
The gimbal, as well as being surprisingly fluid, has an innovative locking clamp, minimizing the force necessary for fastening.

Smarthead
Solutions arise from needs. The Matrix Sled's smarthead allows the operator to disconnect integrally the sled's head and create new configurations. Thanks to this technology, you can keep your sled up to date and prepared to accommodate future releases by SmartSystem. You can also customize the head according to your specific needs.

LCD Monitor Holder
Matrix Sled can accommodate most popular LCD monitors on the market thanks to its new adjustable stand, specifically designed for this system.

Dedicated Wiring
Each component of your equipment could potentially require a particular voltage in order to work properly. Most commercial sleds have only one wiring in order to connect your battery pack from the lower side of the sled to the upper one. Matrix Sled makes it possible to connect up to three different voltages from your batteries to the component that needs to be powered up. This translates into complete freedom and versatility.

C Battery Plate Included
Matrix Sled Pro is equipped with an additional C Battery plate, giving more power and flexibility to your setup.

Counterbalance Additional Weight
• The essence of a steadycam sled is the ability to balance the weight of your camera (including accessories like remote follow focus or particular cinema lenses)
• Having more weight on the upper part of your sled can be counterbalanced, increasing the distance of the batteries or monitor from the fulcrum represented by the gimbal. This translates into a less practical sled setup, reducing the ability to boom down (you'll risk touching the ground with the batteries or lower part of the sled) or hit the sled with your legs during fast movements.
• Matrix Sled PRO gives you the potential to add up to ten counterbalance weights (7.93 oz/225g each) in order to reach the perfect balance without sacrificing the versatility of your setup.

High Quality Connectors
From the original Neutrik XLR to the BNC connector with gold plated contacts, the power and video signal (Full-HD-HD-SDI) are guaranteed with the absence of any insertion loss.

Lemo - Fischer
SmartSystem's main target is easiness and quickness. Often the worst enemies of a Steadicam operator are the cables themselves. The standard connectors used on their sleds are strong, easy to find and, above all, have excellent electrical features.

SmartSystem Matrix Sled Pro Features

  • Matrix Sled turns Static Balancing and Dynamic Balancing extremely easy
  • The PRO version is perfect for ENG cameras, even the heavier ones thanks to additional counterbalance weights included
  • Equipped with Cinema grade sled functionalities like Ultra fluid Gimbal or Micrometric non floating head
  • Monitor LCD holder for maximum stiffness, double Vlock or 3Studs Batteries slots for endurance with and extra C-Battery Slots
  • 575" Carbon fiber Telescopic center post for a total weight of 4.7kgs without counterbalance weights

SmartSystem Matrix Sled Pro Specifications

Mount

V-Lock Mount

Material

Carbon Fiber

Stabilizer Type

Single-Grip Handheld

Camera Mount

Camera Plate

Center Column Diameter

1.6" (40mm)

Number of Sections

2x

Power I/O

2x LEMO 2-Pin (14.8 VDC) Output
1x LEMO 4-Pin (14.8 VDC) Output

Video

1x BNC Input/Output

Counterweights

10x 8 oz (227g)

Battery Info

Required, not included

Battery Material

Lithium-ion

Battery Type

Non-universal

Battery Quantity

3

Weight

10.4 lbs (4.7kg)
