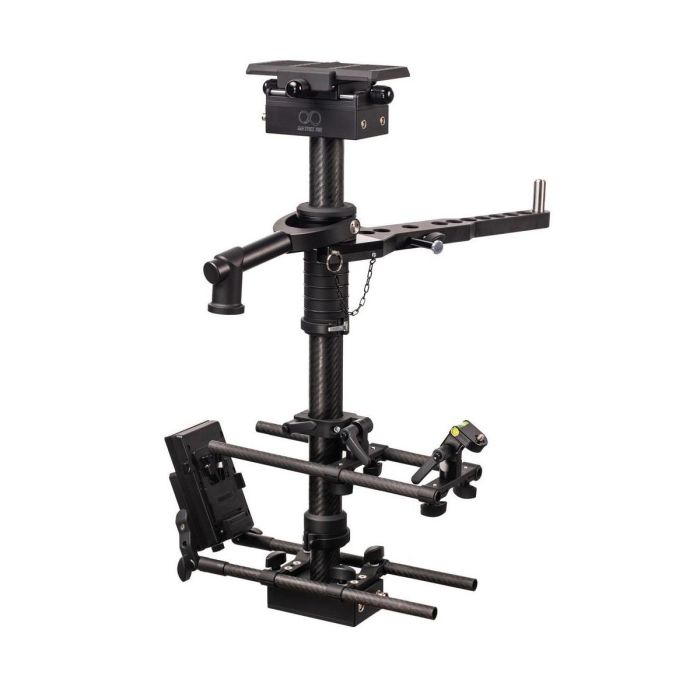

SmartSystem Matrix Sled R2 Vlock

by SmartSystem
Dostupnost: Isporuka 14-20 dana
SKU
smart-6146
  • Professional Sled with 40mm Telescopic Post designed to work with DJI Ronin 2
  • No external cable needed to power Ronin 2. Forget the umbilical cable era
  • Horizon Monitor system included in the bundle
10.591,50 € 8.473,20 €

Sadržaj pakiranja

  • Micrometric Head
  • 2-Section Carbon Fiber Center Post
  • Ronin 2 Plate Adapter
  • Ronin 2 Battery Holder
  • Ronin 2 Yaw Locker
  • Extended Docking Bracket
  • V-Lock Battery Mount
  • Standard Monitor Holder
  • Hard Case

Every technology in cinema production has its peculiarities.

The goal is to look forward how to mix them to create something new, something special.

DJI RONIN 2 + Matrix SLED = Matrix R2

Ultra smooth gimbal 5-AXIS CNC machined completely Tool Free 40mm (1.57 ") telescopic carbon fiber post[from 20.86 " to 37 " (530mm to 940mm)]

Unique Ronin 2 tilt-able Battery plate Use them as standard on a sled NO EXTERNAL cable to power your favourite gimbal the MAGIC is all INSIDE the sled

Exclusive Monitor Stabilization System
Your monitor will be always horizontal no matter what is the angle of the sled post.

Thanks to Ronin 2 YAW Locker forget the annoying sound when used in PAN Lock mode. The exclusive Ronin 2 Plate Adapter let you mount the gimbal securely to the sled post.

The modularity of Matrix Sleds let you mount the micrometric head used for camera on the lower part of the sled for a perfect balance of the whole system.

An useful advantage: It can be reconfigures to became a standard Sled with all the bells and whistels of a pro system. The micrometric non floating head with automatic locking system can be putted back on its original position in seconds.

Vlock Battery Plate equipped with 1/4 and 3/8 threaded holes can be mounted on standard position over the Ronin 2 Battery plate adapter.

The horizontal system can be detached to let a standard monitor mount to be attached to the sled and of course, the lower part can be equipped with C-Battery like PRO Sled or Extreme Sled

SmartSystem Matrix R2 Sled Features

  • Professional Sled with 40mm Telescopic Post designed to work with DJI Ronin 2 thanks to the Ronin 2 Plate adapter included in the bundle
  • No external cable needed to power Ronin 2. Forget the umbilical cable era
  • The standard Ronin 2 Battery can be attached as regular batteries with the ability to move fore-aft on carbon fiber rods and to tilt +90 Degree -90 Degree for perfect Balance
  • Horizon Monitor system included in the bundle
  • The topstage can be assembled directly on the lower part of the sled to grant ultra precision balancing with the Standard VLock or 3Studs battery plate included in the bundle

SmartSystem Matrix R2 Sled Specifications

Mount

V-Lock Mount

Material

Carbon Fiber

Center Column Height

20.9 to 36.6" (53 to 93cm)

Center Column Diameter

1.6" (40mm)

Number of Sections

2

Counterweights

None

Battery Info

Required, not included

Battery Material

Lithium-ion

Battery Type

Non-universal

Battery Quantity

1

Weight

Without Counterweights: 10.4 lbs (4.7kg)
