Sommer Cable DMX & Power SC-Monolith 1, power 3x1,50 mm2; DMX 2x0,25mm2, black
by Sommer Cable- Parallel control for lighting boards through one cable via power line and DMX signal
- Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
SC-Monolith 1
DMX & Power
When the lights begin to dance...
the people stare in wonder! But there is quite a bit of technology behind it. And cables do not play the least important part here. The power for the spotlights and the control signals for their movements must be transmitted via cables. Both cables are combined in a robust cable hose, providing the input lead for the lighting desk and other DMX 512-equipped control devices.
The SC-Monolith 1 POWER/DMX consists of a 3 x 1,50 mm² power cable and one DMX 512 line. Each DMX wire pair is shielded by a tinned helical copper mesh. The power cable was developed in compliance with VDE and has its own jacket for extra safety.
Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems.
Advantages:
Parallel control for lighting boards through one cable via power line and DMX signal
Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding
Miscellaneous:

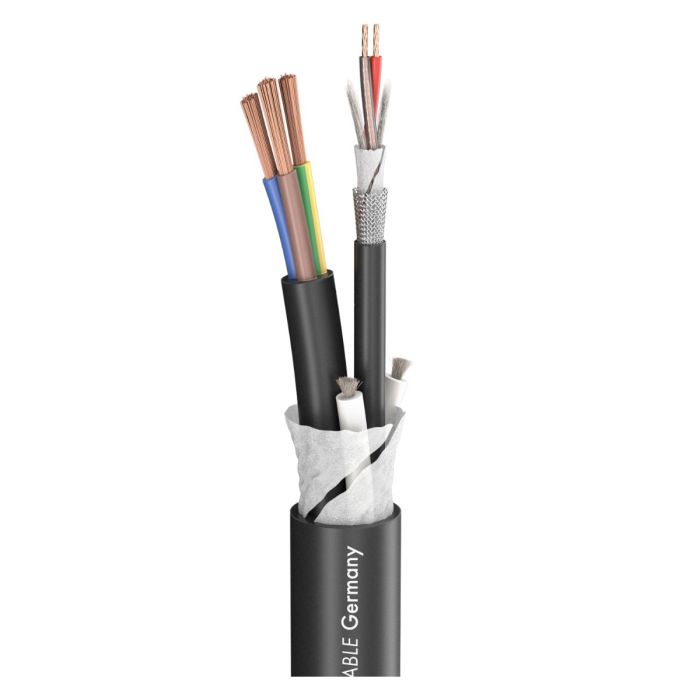

Note: two white filling elements are integrated in the cable (see cable illustration)
Application:
Control line for DMX lighting consoles (wave impedance of 0 Ω)
Analogue + digital audio multipair with power supply
|
Article number
|
500-0051-1 |
| Name | SC-Monolith 1 |
| EAN | 4,05E+12 |
| Properties | Digital 110 Ω AES / EBU |
| Properties | OFC oxygen free copper |
| Properties | Analog |
| Application area | Installation |
| Application area | Studio / Broadcast |
| Application area | Mobile outdoor / indoor |
| Application area | Stage / live |
| Application | DMX & Power |
| Colour | black |
| Colour detailed | black |
| Signal transmission | symmetrical |
| Construction | [(3LIY1,5mm²)Y+ 1x(2LI2Y0,25mm²)CY]VLY |
| Construction (power) | (3LIY1,5mm²)Y |
| Jacket material | PVC |
| Jacket Ø [mm] | 13 |
| Jacket Ø (power) [mm] | 6,2 |
| Jacket Ø (AES/EBU, DMX) [mm] | 4 |
| Number of Channels (power) | 1 |
| Number of Channels (AES/EBU, DMX) | 1 |
| Inner conductor (power) | 3 |
| Inner conductor (AES/EBU, DMX) | 2 |
| Inner conductor (power) [mm²] | 1,5 |
| Inner conductor (AES/EBU, DMX) [mm²] | 0,25 |
| Inner conductor Ø (power) [mm] | 1,38 |
| Inner conductor Ø (AES/EBU, DMX) [mm] | 0,56 |
| AWG (power) | 15 |
| AWG (AES/EBU, DMX) | 23 |
| Shielding (AES/EBU, DMX) | Braided mesh, tin-plated |
| Shielding factor [%] | 85 |
| Copper strands (power) | 48 |
| Copper strands (AES/EBU, DMX) | 14 |
| Copper strand Ø (power) [mm] | 0,2 |
| Copper strand Ø (AES/EBU, DMX) [mm] | 0,15 |
| Wire insulation material (power) | PVC |
| Conductor insulation Ø [mm] | 0 |
| Conductor insulation Ø (power) [mm] | 2,3 |
| Conductor insulation Ø (AES/EBU, DMX) [mm] | 1,25 |
| Weight per 1 m [g] | 200 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,64 |
| Style variant | round |
| Packing | bulk stock |
| Temperature min. [°C] | -30 |
| Temperature max. [°C] | 70 |
| Width [mm] | 13 |
| Height [mm] | 13 |
| Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] | 61 |
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] | 15,8496 |
| Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] | 123 |
| Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] | 27,1272 |
| Impedance [Ω] | 0 |
| Surge impedance (AES/EBU, DMX) [Ω] | 110 |
| Insulation resist. per 1 km [GΩ] | 0 |
| Insulation resist. per 1000 feet [GΩ] | 0 |
| Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] | 0,02 |
| Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] | 0,0305 |
| Conductor resistance per 1 km (power) [Ω] | 80 |
| Conductor resistance per 1000 ft. (power) [Ω] | 24,384 |
| BPVo-Euroclass | Fca |
|
