Sommer Cable video cable Transit 2 HD; 1 x 0,60/2,80; PVC O 10,20 mm; black
by Sommer Cable
Dostupnost:
Isporuka 14-20 dana
SKU
600-0851-02
- Dependable and very high-quality image transmission over long distances
- Very good damping and transmission values even with excessive lengths
5,98 €
4,78 €
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja

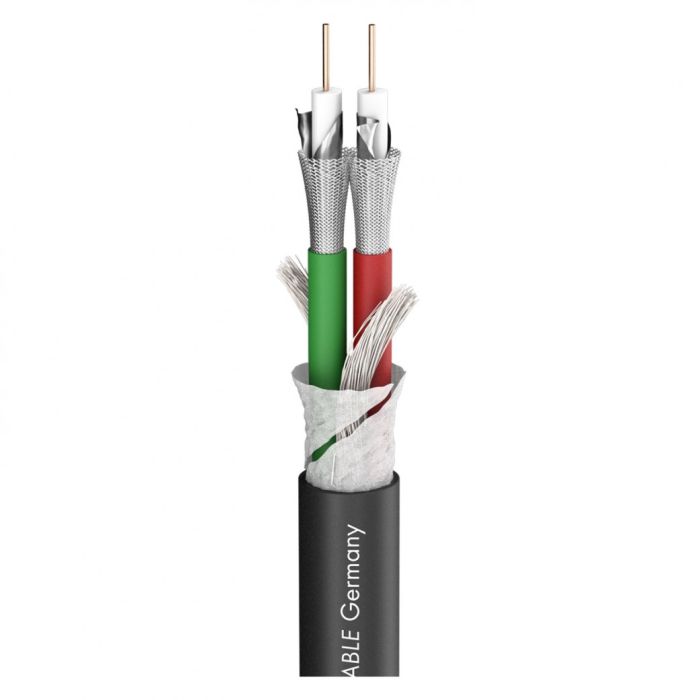

Transit 2 HD
video cable
For everyone needing a long line...
our however is recommenced for extreme lengths exceeding 40 m. But it is also preferred for short distances in professional video studios where it guarantees an image which is totally devoid of shadows and flickering. The Transit 2 HD impresses with its high flexibility, extended functionality and dual shielding (Cu mesh screen + AL/PT foil) of the single wires.
Advantages:
Dependable and very high-quality image transmission over long distances
Very good damping and transmission values even with excessive lengths
Application:
For permanent installation over long distances (theatres, sports arenas,
media & conference centres)
|
Article number
|
600-0851-02 |
| Name | Transit 2 HD |
| EAN | 4,05E+12 |
| Properties | SDI |
| Properties | Halogen-free / LSZH |
| Properties | Digital 75 Ω |
| Properties | HDTV |
| Properties | OFC oxygen free copper |
| Properties | Analog |
| Application area | Studio / Broadcast |
| Application area | Mobile outdoor / indoor |
| Application area | Installation |
| Application area | ELA 100 V |
| Application | video cable |
| Colour | black |
| Colour detailed | black |
| Construction | 2x2YS(ST)CY0,6/2,8 |
| Construction (video) | 2YS(ST)CY0,6/2,8 |
| Jacket material | PVC |
| Jacket Ø [mm] | 10,2 |
| Number of Channels (video) | 1 |
| Inner conductor (video) | 2 |
| Inner conductor (video) [mm²] | 0,28 |
| Inner conductor Ø (video) [mm] | 0,6 |
| AWG (video) | 23 |
| Shielding | Copper braiding tin-plated 90 % + AL / PT-foil |
| Shielding factor [%] | 100 |
| Copper strands (video) | 1 |
| Copper strand Ø (video) [mm] | 0,6 |
| Conductor insulation material | Gas-injected Foam / Skin-PE |
| Conductor insulation Ø (video) [mm] | 2,8 |
| Weight per 1 m [g] | 30 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,101 |
| Style variant | round |
| Packing | bulk stock |
| Temperature min. [°C] | -20 |
| Temperature max. [°C] | 80 |
| Width [mm] | 10,2 |
| Height [mm] | 10,2 |
| Capacity wire/electic screen at 1m (video) [pF] | 55 |
| Capacity wire/electic screen at 1 ft. (video) [pF] | 16,764 |
| Damping at 5 MHz (100m & 20° C) [dB] | 2,5 |
| Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] | 0,762 |
| Damping at 50 MHz (100m & 20° C) [dB] | 7,3 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] | 2,225 |
| Damping at 100 MHz (100m & 20° C) [dB] | 10,4 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] | 3,1699 |
| Damping at 200 MHz (100m & 20° C) [dB] | 14,5 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] | 4,4196 |
| Damping at 470 MHz (100m & 20° C) [dB] | 22,7 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] | 6,919 |
| Damping at 862 MHz (100m & 20° C) [dB] | 31,1 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] | 9,4793 |
| Damping at 1000 MHz (100m & 20° C) [dB] | 33,6 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] | 10,2413 |
| Damping at 1485 MHz (100m & 20° C) [dB] | 41,5 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] | 12,6492 |
| Damping at 1750 MHz (100m & 20° C) [dB] | 45,2 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] | 13,777 |
| Damping at 2150 MHz (100m & 20° C) [dB] | 50,9 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] | 15,5143 |
| Damping at 3000 MHz (100m & 20° C) [dB] | 60 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] | 18,288 |
| Impedance [Ω] | 75 |
| BPVo-Euroclass | Fca |
|
