Sony UWP-D27/K33
by SonyThe UWP-D27 is a wireless bodypack microphone package that offers high quality sound and seamless integration with Sony cameras. It features a secure and stable RF transmission, wide coverage with a 72MHz bandwidth, and improved MI shoe connection. The package also boasts unified power management and long term durability for reliable use.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- 2x UTX-B40 Body-pack Transmitter
- 1x URX-P41D
- 1x Shoe mount adaptor
- 3x Belt clip
- 2x Holder Clip
- 2x Omni-Directional Lav Mic
- 2x Windscreen
- 2x XLR-BMP conversion output cable for the URX-P40/URX-P41D
- 1x Stereo mini plug-BMP conversion cable for the URX-P41D
The UWP-D27 is a wireless bodypack microphone package that offers high quality sound and seamless integration with Sony cameras. It features a secure and stable RF transmission, wide coverage with a 72MHz bandwidth, and improved MI shoe connection. The package also boasts unified power management and long term durability for reliable use.
The package includes a bodypack transmitter, 2-channel portable receiver, lavalier microphone, and accessories, making it easy to use for on-camera interviews, live presentations, and other applications. The receiver has a variable output level control and true diversity for stable audio, and can be quickly and conveniently synced with the transmitter using Sonys NFC SYNC feature. With the optional SMAD-P5 Multi Interface Shoe Adaptor, the receiver can be seamlessly integrated with compatible Sony cameras and camcorders for direct digital sound recording. The compact and lightweight design of the receiver makes it a great choice for use with handheld cameras and camcorders.
Sony's UWP-D27 Dual Channel Kit is the perfect addition to any studio or recording setup, providing secure and stable RF transmission for high quality sound. With a wide coverage of 72MHz bandwidth, this portable kit is designed for seamless communication and audio support.
Featuring a bodypack transmitter, 2-channel portable receiver, lavalier microphone, and other necessary accessories, the UWP-D27 integrates seamlessly with Sony cameras. The included ECM-V1BMP omni-directional lavalier microphone connects to the compact UTX-B40 bodypack transmitter, ensuring crisp and clear sound for on-camera interviews and live presentations.

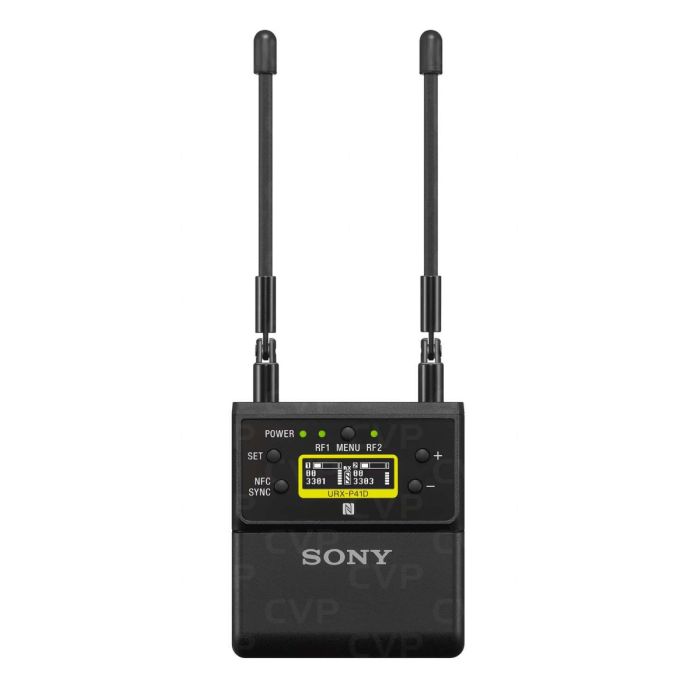

The URX-P41D 2-channel portable receiver offers quick and easy wireless pairing between transmitter and receiver, with the option for NFC or IR sync. This allows for backward compatibility with previous transmitter models, making it a versatile and convenient choice for any setup.
For use with different camcorders and DSLR cameras, the URX-P41D offers a variable output level control of ±12dB and a HIGH GAIN mode for devices that require higher gain. The true diversity feature ensures stable and dropout-free reception, providing excellent signal quality for audio recording.
With Sony's friendly NFC SYNC feature, channel pairing is quick and secure. The advanced digital audio processing technology guarantees high quality sound, and an optional interface allows for direct digital sound recording with compatible Sony cameras via the SMAD-P5 Multi Interface Shoe Adaptor.
Integrate the UWP-D27 with compatible Sony cameras and camcorders using the optional SMAD-P5 Multi Interface Shoe Adaptor. This allows for receiver information to be displayed in the camera's viewfinder and audio signals to be routed directly to the camera without the need for a cable connection.
The URX-P41D wireless receiver is compact and lightweight, making it the perfect partner for handheld cameras and camcorders. So if you're looking for a reliable and high-quality wireless audio package, look no further than Sony's UWP-D27/K33 Dual Channel Kit.
Stable, reliable connection
Stable, reliable RF reception is assured by the receiver’s dual diversity tuner that always stays locked onto the strongest wireless signal. So you can be confident of clear, uninterrupted audio reception with no signal drop-outs.
High Quality Sound
Conventional analog systems use companders for dynamic range, but UWP-D utilises Sony’s newly developed digital audio processing for digital companding, resulting in a high quality, accurate sound.
Effortless one-touch sync
Setting up UWP-D Series is fast, super-simple and secure. Just touch a button and the UWP-D Series receiver automatically scans for clear wireless channels. Then use one-touch NFC sync to securely pair receiver and transmitter – and you’re all ready to start capturing crisp, clear audio.
Wireless camera connection
Capturing crisp, sparkling wireless audio has never been easier. UWP-D receiver mounts directly on Sony camcorders using the SMAD-P5 MI Shoe that carries power as well as audio signals, with automatic power synchronisation between camera and receiver.
| URX-P41D/K33 | |
| Oscillator Type | Crystal-controlled PLL Synthesizer |
| Reception Type | Space diversity* |
| Antenna Type | 1/4 λ wavelength wire antenna (angle-adjustable) |
| Carrier Frequencies | 14UC: 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25) |
| KR: 925.125 MHz to 937.375 MHz | |
| Frequency Response | 23 Hz to 18 kHz (typical) (UC, U, CE7, LA, CN, E, KR models) |
| 40 Hz to 15 kHz (typical) (J model) | |
| Distortion (T.H.D) | 0.9% or less (1 kHz sine wave, 5kHz modulation) |
| Signal-to-Noise Ratio | 60 dB (1 kHz sine wave, 5 kHz modulation) |
| 96 dB (max deviation, A-weighted) | |
| Audio Delay | Approx. 0.35 ms (analog output) |
| Approx. 0.24 ms (digital output) | |
| Analog Input | 3.5-mm diameter 3-pole locking mini jack (unbalanced) |
| Analog Input Level | -50dBV (±12dB Adjustable, 3-dB step) |
| Audio Output level | –60 dBV (3.5-mm diameter 3-pole locking mini jack, analog output) |
| –50 dBV (external connection, analog output) | |
| Audio Output Adjust Range | -12dB to +12dB (3dB step) |
| Audio Output connector | 3.5mm diameter 3-pole locking mini jack (balanced), |
| External connection | |
| Headphone Output Connector | 3.5mm diameter mini jack |
| Headphone Output Level | Max. 10 mW (16-ohm) |
| Tone signal frequency | In UWP-D compander mode: 32.382 kHz |
| In WL800 compander mode: 32.768 kHz | |
| Display | OLED |
| Power Requirements | DC 3.0 V (with two AA-size alkaline (LR6) batteries) |
| DC 5.0 V (supplied from USB Type-C connector) | |
| Battery Life | Approx. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 °C (77 °F), DISPLAY MODE set to AUTO OFF |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage/ Transport Temperature | -20ºC to +55ºC (-4ºF to +131ºF) |
| Dimensions | 63 × 70 × 35 mm (2 1/2 × 2 7/8 × 1 7/16 in.) (W / H / D) (excluding antenna) |
| Mass | Approx. 159 g (5.6 oz) (excluding batteries) |
| UTX-B40/K33 | |
| Oscillator Type | Crystal-controlled PLL synthesizer |
| Antenna Type | 1/4 λ wave length wire antenna |
| Carrier Frequencies | 14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) |
| KR : 925.125 MHz to 937.500 MHz | |
| RF Output Power | 30 mW/5 mW selectable (UC, U, CE, LA, CN models) |
| 10 mW/2 mW selectable (J, E, KR models) | |
| Capsule Type | Elect retcondenser |
| Directivity | Omni-directional |
| Input Connector | 3.5 mm diameter 3-pole locking mini jack |
| Reference Audio Input Level | –60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) |
| +4 dBu (LINE input) | |
| Audio Attenuator Adjustment Range | 0 dB to 27 dB (3 dB steps) |
| Frequency Response | 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models) |
| 40 Hz to 15 kHz (Typical) (J model) | |
| Signal-to-Noise Ratio | 60 dB (–60 dBV, 1 kHz input) |
| 96 dB (GAIN MODE set to NORMAL, max.) | |
| Distortion | 0.9% or less (–60 dBV, 1 kHz input) |
| Audio Delay | Approx. 0.35 ms |
| Tone Signal Frequency | In UWP-D compander mode: 32.382 kHz |
| In WL800 compander mode: 32.768 kHz | |
| Display | OLED |
| Power Requirements | DC 3.0 V (two LR6/AA size alkaline batteries) |
| DC 5.0 V (supplied from USB Type-C connector) | |
| Battery life* | Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models) |
| Approx. 10 hours with output power of 10 mW (J, E, KR models) * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F). | |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage/Transport Temperature | -20 °C to +55 °C (–4 °F to +131 °F) |
| Dimensions | 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna) |
| Mass | Approx. 83 g (2.9 oz) (excluding batteries) |
