Sound Devices MIXPRE-10 II

Raspoloživost: Isporuka 7-10 dana
SKU
SD-MIXPRE-10-II
  • Field Sound Mixing, Videography & VR
  • 32-Bit Recording / 142 dB Dynamic Range
  • Record up to 192 kHz
  • 8 x High-Gain, Low-Noise Mic Preamps
15.750,00 kn 12.600,00 kn

Sadržaj pakiranja

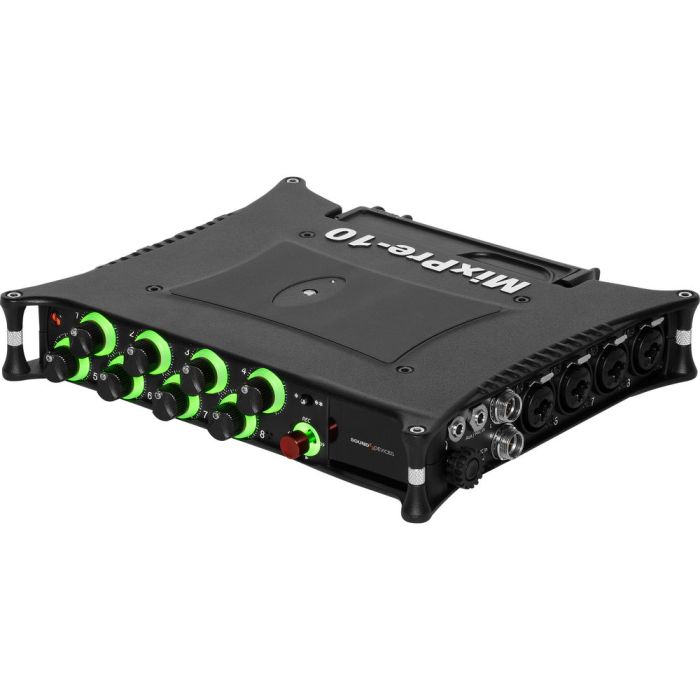

Sound Devices MixPre-10 II 10-Channel / 12-Track Multitrack 32-Bit Field Recorder
Sound Devices MX-8AA Battery Sled for MixPre-3 and MixPre-6
Sound Devices XL-WPH3 45W DC Power Supply for Sound Devices Recorders and Mixers
Limited 1-Year Warranty with 1-Year Extension upon Registration

Not in the Box
Batteries & Power (Not Included)

For professional videographers, field recordists, podcasters, and Ambisonics enthusiasts who need pristine audio capture of up to eight microphones, the Sound Devices MixPre-10 II multitrack field recorder is an ideal tool. Record up to ten tracks of external sources (eight channels via XLR-1/4" combo jacks and two channels via a 3.5mm mini jack) plus a stereo mix at up to 32-bit / 192 kHz while monitoring your audio in headphones.

The MixPre-10 II offers many upgrades over its predecessor. Chief among these features is the ability to record at 32-bit floating point. This makes it nearly impossible for you to clip (distort) audio on the way in. Whether you're recording hot or making use of the unit's astounding 142 dB dynamic range, you'll only be handicapped by the quality of your microphone.

The device sports the same Kashmir preamps as the MixPre-10T with one key difference: an even lower noise floor, at 130 dBV. With line-level XLR and 3.5mm outputs, you can monitor in both headphones and on a compatible line-level device at the same time. Timecode connections are made possible via BNC, HDMI, and 3.5mm connections.

All of this is available in an eight-channel package that can be powered from wall chargers, AA batteries, or Sony L-series batteries. Whether you use the device in an advanced or basic capacity, the MixPre-10 II will suit any intimate, field-based production.

Simultaneous 12-Track Recording
Record all 10 input channels and your stereo mix at the same time in 44.1, 48, 96, or 192 kHz resolution.

Audio Interface Functionality
When connected to a Mac or Windows computer, the MixPre-10 II can serve as a 12-input / 4-output USB audio interface at up to 192 kHz for your favorite audio recording software.

A Cornucopia of Connections
For inputs, you'll find eight XLR-1/4" combo jacks and a 3.5mm auxiliary input. 48V Phantom power is available. Audio output connections are handled over 3.5mm connections and XLR line-level outs. Timecode I/O is made possible via 3.5mm connections, HDMI, and BNC.

Adjust on the Fly
Adjust the limiters, change the bit-depth, shift panning, delay, and polarity in the stereo mix and filter out extraneous bass rumble with low-cut filters. Whether you record to an SD card or to your computer over USB, the MixPre-10 II can be customized to your needs.

Built-In Timecode Generator & Bluetooth Control
Thanks to the device's timecode generator, you can even trigger recording from the camera. With built-in Bluetooth, you can control the unit over the Wingman app, available from Sound Devices. This app displays high-resolution meters, current timecode, transport buttons, and more.

Timecode Synchronization
Timecode from a camera or master TC clock can be patched into the MixPre-10 II's HDMI Type-D jack, 3.5mm aux input, or BNC timecode input. In any case, the device automatically detects the incoming timecode frame rate and stamps the recorded files accordingly. The low-drift internal timecode generator can be set to pause when recording stops, jam-sync to a temporary timecode source, or continue in "free run" mode for up four hours after powering down.

Ambisonics Integration
Upon installation of the free Ambisonics plug-in (from the Sound Devices Plug-In Store), field recordists, game developers, and VR content creators will appreciate the support for simultaneous multiformat recording (AmbiX, FuMa, LR Stereo, and LR Binaural), real-time binaural/stereo monitoring, and A- to B-Format conversion.

Expandable Functionality
Buy the Musician Plug-In from the Sound Devices online store to add in-unit music recording to your MixPre-10 II. The Musician Plug-In adds built-in features and effects like overdub, reverb, and vocal air. Create Music Projects to lay down backing tracks and use them live or at home for writing or practicing.

Key Features at a Glance

  • Kashmir microphone preamps with 48V phantom power
  • Internal timecode generator
  • Sample rates up to 192 kHz
  • Bit depths up to 32-bit float
  • Adjustable Limiters
  • SD card recording and reading
  • Backup to USB drive
  • 10 seconds of pre-roll at 48 kHz
  • USB control surface support
  • Customize with plugins
  • Add low cut, high pass, delay, polarity invert, and panning
  • Simultaneous recording, mixing, and USB audio streaming
  • Trigger record via timecode or HDMI timecode
  • Bluetooth for wireless control via Wingman app
  • Basic, Advanced, and Custom modes
  • High-fidelity headphone amplifier

Frequency Response

  • 10Hz to 80kHz +/- 0.5dB re 1kHz @ 192kHz sample rate

THD + Noise

  • 0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)

ADC

  • 32 bit precision; 142dB dynamic range min (A-weighted, gain=10dB, fader=0dB)

Equivalent Input Noise

  • -130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance)

Inputs

  • Mic: XLR active-balanced; 4k input
  • Line: XLR active-balanced; 4k input
  • Aux/Mic in: 3.5mm TRS, 2-channel unbalanced; 100k input
  • Line: ¼-inch TRS active-balanced; 4k input
  • USB Audio: 4 channels
  • All inputs fully RF-filtered and overload protected.

Gain

  • Mic input: +6dB to +76dB
  • Line input: -20dB to +30dB
  • Fader: -inf to +20dB
  • Headphone: -inf to +20dB
  • Total, Mic-to-recording (max): +96dB
  • Aux In (Mic): Gain = +10dB to +40dB
  • Aux In (Line): Gain = -10dB to +20dB
  • Total Aux Gain including Fader (Mic-to-recording): +60dB

Maximum Input Level

  • Mic XLR: +14dBu (limiters on or off)
  • Line XLR/¼-inch: +28dBu (limiters on or off)
  • Aux In (Mic): -10dBu
  • Aux In (Line): +10dBu

Low Cut Filters

  • 40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.

Microphone Powering

  • Mic XLRs: 48V via 6.8k resistors, 10mA each
  • Mic 3.5mm: 3V @ 3k source

Limiters

  • Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release.

DAC feeding Stereo Out, Headphone Out

  • 32 bit precision; 115dB dynamic range (A-weighted)

L/R Out

  • TA3 2-channel balanced, 1.1K max output impedance, +18 dBu max output level

X1/X2 Out

  • 3.5mm TRS stereo unbalanced, 500 ohm output impedance, +7.8dBu max output level

Headphones Out

  • 3.5mm TRS stereo unbalanced, 300mW + 300mW, for use with any impedance headphones

USB

  • Audio Interface (USB-C): 12-in/4-out; 44.1 to 96 kHz; 16/24-bit; Class-compliant USB 2.0 high speed or ASIO® driver (supplied via download)
  • Mass Storage (USB-C): USB 2.0 high speed
  • Keyboard (USB-A): Text entry and control
  • Thumbdrive (USB-A): Manual or auto-copy to drive
  • Midi Control Surface (USB-A)

Maximum Record Tracks

  • 12 Tracks: Stereo mix + 10 ISOs

Sampling Frequency

  • 44.1 kHz
  • 47.952 kHz
  • 48 kHz
  • 48.048 kHz
  • 96 kHz
  • 192 kHz

Bit Depth

  • 16
  • 24
  • 32 Float

Recording Storage

  • Type: SD, SDXC, SDHC Card (USB thumbdrive, copy only)
  • Max Storage Size: 512 GB (SDXC)
  • Card format: exFAT

File Types

  • Polyphonic WAV

Timecode Modes

  • Free Run
  • Time of Day (file stamped w/current ToD)
  • Rec Run
  • Ext LTC (file stamped w/incoming LTC on BNC or Aux 3.5mm)
  • Camera TC (file stamped w/incoming TC from cameras that output TC)

Timecode Frame Rates

  • Auto-detects (fps): 23.98 (same as 23.976)
  • 24
  • 25
  • 29.97DF
  • 29.97ND
  • 30
  • 30DF

Sync Source

  • Internal, Word Clock, Ext LTC

BNC In (TC In)

  • Switchable between Timecode (default) or Word Clock Input
  • Timecode: 20k ohm impedance, 0.3 V - 3.0 V p-p (–17 dBu - +3 dBu)
  • Word Clock: 10k ohm impedance, 1.5V p-p

BNC Out (TC Out)

  • Switchable between Timecode (default) or Word Clock Output
  • Timecode: 1k ohm impedance, 3.0V p-p (+12 dBu)
  • Word Clock: 75 ohm impedance, 5V p-p

HDMI

  • TC Reader via HDMI

Sample/Timecode Accuracy

  • 0.2 ppm (0.5 frames per 24 hours)

Remote Control

  • Bluetooth LE: Wireless control using Wingman app
  • HDMI (micro): Auto-record start/stop trigger from cameras that output record flag over HDMI
  • Timecode: Auto-record start/stop trigger via Aux In timecode

Touch Screen

  • 320x256; 1.6-inch, color, sunlight-viewable IPS LCD

Power

  • AA Batteries: 8x AA sled (included). NiMH recommended
  • L-Mount: Optional sled for 2x (hot-swappable) Li-ion batteries
  • AC Adapter: XL-WPH3 (included): Universal, 45 W in-line AC-to-DC power supply Hirose 4-pin DC plug, with detachable IEC power cord. 100-240, 50/60Hz

Environmental

  • Operating: -20°C to 60°C, 0 to 90% relative humidity; (non-condensing)
  • Storage: -40°C to 85°C

Dimensions and Weight

  • Dimensions: 36 mm x 206 mm x 175 mm (H x W x D); 1.375” x 8.125” x 6.875”
  • Weight: 0.91 kg; 32.1 oz. (unpackaged, without batteries)
