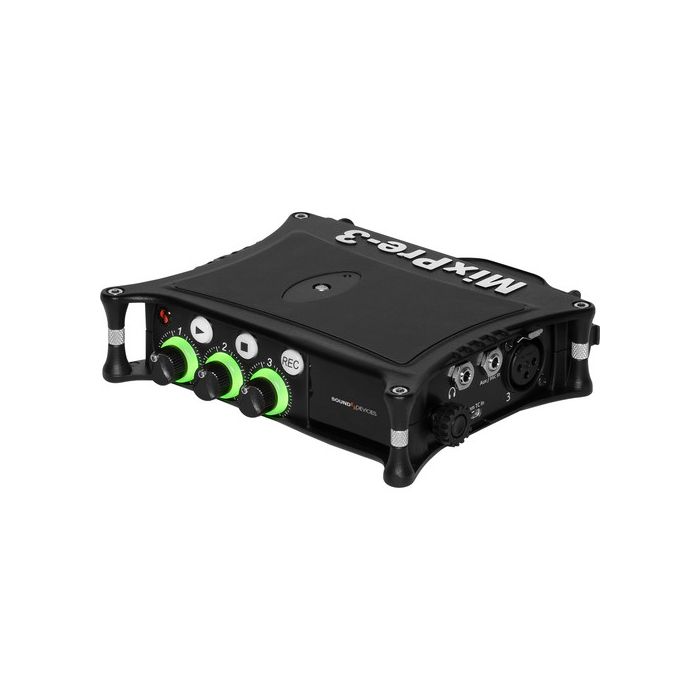

Sound Devices MixPre-3 II

by Sound Devices
Dostupnost: Isporuka 7-10 dana
SKU
SD-MIXPRE3II
  • Field Recording, Filmmaking & Podcasting
  • 32-Bit Recording / 32-Bit USB Streaming
  • Record up to 192 kHz, Stream to 96 kHz
  • 3 x High-Gain, Low-Noise Mic Preamps
1.091,75 € 873,40 €

Sadržaj pakiranja

  • Sound Devices MixPre-3 II 3-Channel / 5-Track Multitrack 32-Bit Field Recorder
  • Sound Devices MX-4AA Battery Sled for MixPre-3 and MixPre-6
  • Sound Devices MX-Charge AC Power Supply for MixPre-3 and MixPre-6

For independent filmmakers, field recordists, and podcasters who need pristine audio capture of up to three microphones, the Sound Devices MixPre-3 II multitrack field recorder is an ideal tool. Record up to three tracks of external sources plus a stereo mix at up to 32-bit / 192 kHz while monitoring your audio headphones. If you choose to use the MixPre-6 II as your studio interface, you'll be able to achieve sample rates up to 96 kHz

The MixPre-3 II offers many upgrades over its predecessor. Chief among these features is the ability to record at 32-bit floating point to an internal SD card. The unit also functions as an audio interface capable of 32-bit floating point streaming over USB to a Mac computer. This makes it nearly impossible for you to clip (distort) audio on the way in. Whether you're recording hot or making use of the unit's astounding 142 dB dynamic range, you'll only be handicapped by the quality of your microphone.

Other improvements include the ability to auto-copy recorded tracks to USB thumb drives, making file transfers a breeze. Lovers of sync will revel in a handy new feature: a full-fledged, built-in timecode generator, accurate to better than 0.2 ppm (0.5 frames in 24 hours). Even when powered off, the MixPre-3 II maintains accurate timecode for up to four hours.

All of this is available in a three-channel package that can be powered from wall chargers, computers, AA batteries, or Sony L-series batteries. Whether you use the device in an advanced or basic capacity, the MixPre-3 II will suit any intimate, field-based production.

Portable Recorder
Number of Tracks WAV:
5 (3 Inputs + Stereo Mix)
Max Sample Rate/Resolution 192 kHz / 32-Bit
Microphone None
Built-In Speaker None
Display 1.6" / 40.64 mm Color LCD Touchscreen
Memory Card Support SD, SDHC, SDXC (Up to 512 GB)
Internal Storage None
Recording
Audio File Formats Recording:
WAV
Sample Rates WAV:
44.1 / 47.952 / 48 / 48.048 / 96 / 192 kHz
Bit Depth 16 / 24 / 32-Bit (A/D Conversion)
Signal Processing Delay, Limiter, Low-Cut Filter
Timecode Yes
Frame Rates Supported 23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF
Clock Accuracy ±2 ppm / 0.5 Frame per 24 Hrs (Timecode)
Connectivity
Analog I/O 3 x XLR 3-Pin Female Balanced Line/Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Aux Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
Digital I/O 1 x 1/8" / 3.5 mm SMPTE Timecode Input
1 x 1/8" / 3.5 mm SMPTE Timecode Output
1 x HDMI Type-D SMPTE Timecode Input
Phantom Power +48 V, Selectable On/Off
Phantom Power Current 10 mA per Channel
Plug-In Power Yes, 3 V
Host Connection 1 x USB Type-C (USB 2.0)
1 x USB Type-A (Control, Text Entry, Thumb Drive)
Bluetooth Bluetooth 4.0 (Remote)
Performance
Frequency Response WAV:
10 Hz to 80 kHz ±0.5 dB (At 192 kHz)
Gain Range Mic Inputs:
+6 dB to +76 dB
Line Inputs:
-20 dB to +30 dB
Mic/Aux Inputs:
+10 dB to +40 dB
Line/Aux Inputs:
-10 dB to +20 dB
Fader:
Up to +20 dB
Headphone Outputs:
Up to +20 dB
Max Input Level Mic Inputs:
+14 dBu
Line Inputs:
+28 dBu
Mic/Aux Inputs:
-10 dBu
Line/Aux Inputs:
+10 dBu
Max Output Level Outputs:
+7.8 dBu
Headphone Output Power 300 mW per Channel
Dynamic Range A/D Converters:
142 dB
Impedance Mic/Line Inputs:
4 Kilohms (Active-Balanced, Line Level, Mic Level)
Mic/Aux Inputs:
100 Kilohms (Mic Level, Unbalanced)
Timecode Input:
20 Kilohms
Timecode Output:
1 Kilohms
THD+N Inputs:
-10 dBu (0.005%)
EIN -128 dBu (A-Weighted)
Power
Power Options Batteries, USB Bus Power, AC/DC Power Adapter
Battery Type 4 x AA (Included)
2 x L Series (Requires Optional Equipment, Hot-Swappable, Not Included)
AC/DC Power Adapter 5 VDC (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Mounting Options 1/4"-20 Male (Top)
1/4"-20 Female (Bottom)
Operating Temperature -4 to 140°F / -20 to 60°C
Storage Temperature -40 to 185°F / -40 to 85°C
Operating Humidity 0 to 90%
Dimensions 5.7 x 1.4 x 4.3" / 144 x 36 x 110 mm
Weight 16.8 oz / 0.5 kg (Without Batteries)
