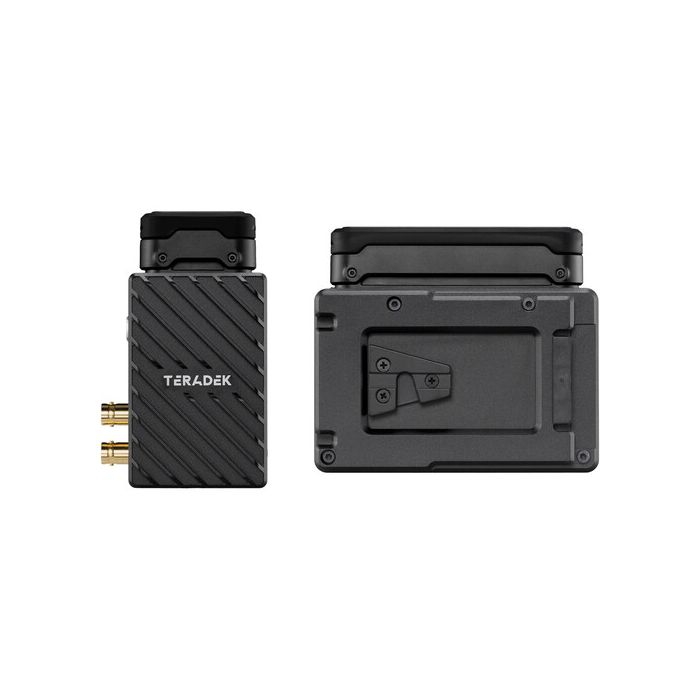

Teradek Bolt 6 LT 750 Int Ant TX / RX V-Mount

by Teradek

Dostupnost: Isporuka 7-10 dana

SKU

TRD-10-2260-VII

Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI.

3.949,75 € 3.159,80 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

1 x Bolt 6 LT 750 TX Internal Antenna
1 x Bolt 6 LT 750 RX Internal Antenna V-Mount
1 x 2pin to P-Tap Cable, 18in
1 x 2pin to AC Adapter 18W, 6ft
2 x Ultra Thin HDMI Male to Male Cable, 18in
2 x SDI Cable, 10in
1 x Lightstand Adapter 1/4-20in
1 x Hot Shoe Adaptor
1 x USB-C 2.0 Male to Male, 1m

Opis

Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies. External Antenna models now ship with new flexible V-antennas.

Bolt 6 LT Sets offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.

The 750 model includes V (vertical) antennas. 1500 and MAX models include both V antennas and H (horizontal) antennas. H antennas are designed to maximize signal robustness in the most challenging RF environments.

Optionally, the 750 model of Bolt 6 LT can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

Specifikacije

Key Specs
Video I/O	1x HDMI 1.4b Input
	1x BNC (3G-SDI) Input
	1x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI: 2-Channel
	SDI
Latency	< 0.01 ms
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	480p: 60/59.94
	576i: 60
	480i: 59.94
	SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 59.94
Battery	Interchangeable Mount (No Plate Included)
Power Consumption	9 W

Inputs/Outputs
Antenna I/O	No
Video I/O	1x HDMI 1.4b Input
	1x BNC (3G-SDI) Input
	1x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI: 2-Channel
	SDI
Audio I/O	No
Power I/O	1x LEMO 2-Pin (28 VDC) Input
Other I/O	1x Micro-USB Input
Encryption	Yes, 256-Bit AES

Wireless
Wireless Range	750' / 228.6 m (Line-of-Sight)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	Non-DFS Frequencies
	US: 5.94 to 6.42 GHz
	DFS Frequencies
	US: 5.27 to 5.67 GHz
Latency	< 0.01 ms
RF Power	23 dBm
Wi-Fi	Yes
Bluetooth	Yes
Mobile App Compatible	Yes: Android & iOS
	App Name: Bolt App
Cellular Support	No

Format Support
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	480p: 60/59.94
	576i: 60
	480i: 59.94
	SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 59.94
Audio Format	2-Channel 24-Bit 48 kHz
Wireless Video Compression	Uncompressed
Timecode Support	Yes

Power
Input Power	6 to 28 VDC
Battery	Interchangeable Mount (No Plate Included)
Power Consumption	9 W

Mounting
Tripod/Accessory Mounting	Bottom
	1x 1/4"-20 Female

General
Status Display	Yes
Environmental Resistance	No
Operating Conditions	32 to 72°F / 0 to 40°C
Material of Construction	Aluminum
Dimensions	4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
Weight	7.27 oz / 206.00 g

Packaging Info
Package Weight	2.75 lb
Box Dimensions (LxWxH)	16.3 x 9 x 3.7"
