Teradek Bolt 6 Monitor Module 750 Int Ant RX Gold Mount

Teradek Bolt 6 Monitor Module 750 Int Ant RX Gold Mount

by Teradek

Dostupnost: Isporuka 7-10 dana

SKU

TRD-10-2199-G7I

Bolt 6 RX Monitor Module is a wireless video receiver that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Akcija traje do 07. 12. 2025. ili do isteka zaliha!

Regularna cijena 2.304,00 € * Najniža cijena u zadnjih 30 dana Akcijska cijena 1.694,50 € 1.355,60 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

-26%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

1 x Bolt 6 Monitor Module 750 RX Gold Mount
1 x HDMI Adapter Bolt 4K RX Monitor Module

Opis

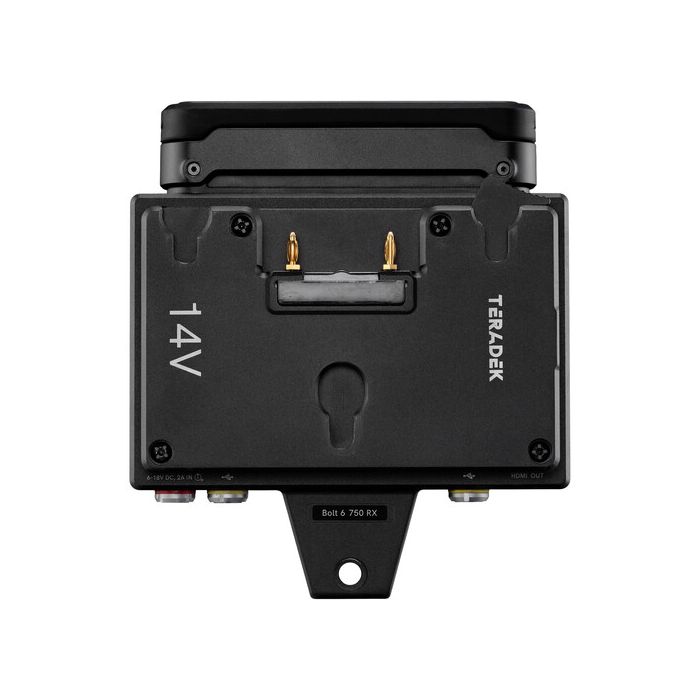

The Bolt 6 Receiver Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With this direct integration, the Bolt 6 and Smart monitor can share power and video, allowing you to reduce the amount of cables on set. With the Bolt 6 Monitor Module, Wireless Camera-Control is also possible because it integrates directly into SmallHD Smart Monitors.

Bolt 6 Monitor Module RX offers two line-of-sight options: 750 ft. and 1500 ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

The 750 model includes V (vertical) Antennas. 1500 model includes both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Specifikacije

Key Specs
Video I/O	2x HDMI 1.4b Output
Embedded Audio	HDMI: 2-Channel
Latency	< 0.01 ms
Video Format	HDMI/Wireless
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
Battery	1x Gold Mount on Fixed Plate
Power Consumption	7 W

Inputs/Outputs
Antenna I/O	No
Video I/O	2x HDMI 1.4b Output

Embedded Audio	HDMI: 2-Channel

Audio I/O	No
Power I/O	1x LEMO 2-Pin (18 VDC) Input
Other I/O	2x LEMO 5-Pin 2.0 Output
Encryption	Yes, 256-Bit AES

Wireless
Wireless Range	750' / 228.6 m (Line-of-Sight)
# of Channels	24
Frequency Range	DFS Frequencies
	US: 5.27 to 5.67 GHz
	Non-DFS Frequencies
	US: 5.19 to 5.23 GHz
	US: 5.75 to 5.79 GHz
	US: 5.94 to 6.42 GHz
Latency	< 0.01 ms
RF Power	21 dBm
Wi-Fi	Wi-Fi 6 (802.11ax)
Bluetooth	5.0
Mobile App Compatible	Yes: Android & iOS
	App Name: Bolt App
Cellular Support	No

Format Support
Video Format	HDMI/Wireless
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
Audio Format	2-Channel 24-Bit 48 kHz
Wireless Video Compression	Uncompressed
Timecode Support	Yes

Power
Input Power	6 to 18 VDC
Battery	1x Gold Mount on Fixed Plate
Power Consumption	7 W

Mounting
Tripod/Accessory Mounting	1x 1/4"-20 Female
	1x 3/8"-16 Female

General
Environmental Resistance	No
Operating Conditions	32 to 72°F / 0 to 40°C
Material of Construction	Aluminum, Plastic
Dimensions	4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight	10.30 oz / 292.00 g

Packaging Info
Package Weight	2.85 lb
Box Dimensions (LxWxH)	12.2 x 9 x 6.2"
