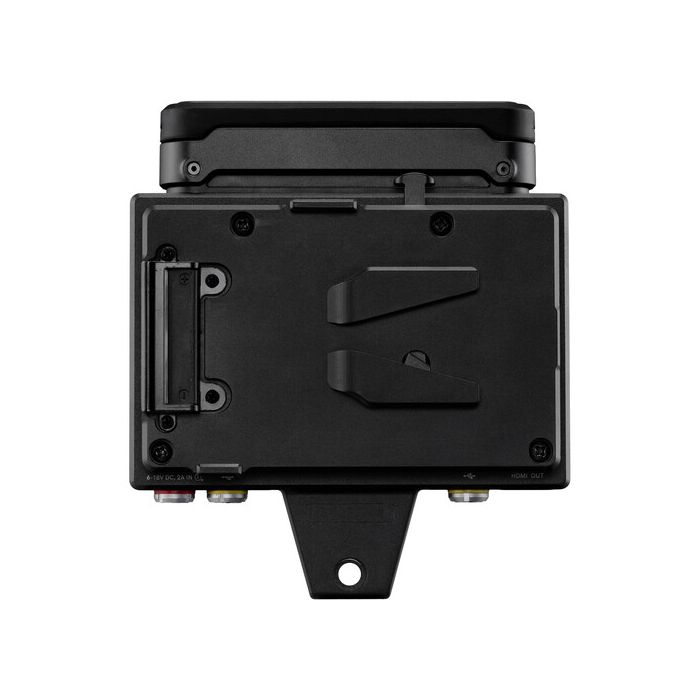

Teradek Bolt 6 Monitor Module 750 Int Ant RX V Mount
by TeradekBolt 6 RX Monitor Module is a wireless video receiver that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- 1 x Bolt 6 Monitor Module 750 RX V-Mount
- 1 x HDMI Adapter Bolt 4K RX Monitor Module
Bolt 6 RX Monitor Module is a wireless video receiver that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
The Bolt 6 Receiver Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With this direct integration, the Bolt 6 and Smart monitor can share power and video, allowing you to reduce the amount of cables on set. With the Bolt 6 Monitor Module, Wireless Camera-Control is also possible because it integrates directly into SmallHD Smart Monitors.
Bolt 6 Monitor Module RX offers two line-of-sight options: 750 ft. and 1500 ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.
The 750 model includes V (vertical) Antennas. 1500 model includes both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
| Key Specs | |
| Video I/O | 2x HDMI 1.4b Output |
| Embedded Audio | HDMI: 2-Channel |
| Latency | < 0.01 ms |
| Video Format | HDMI/Wireless |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Battery | 1x V-Mount on Fixed Plate |
| Power Consumption | 7 W |
| Inputs/Outputs | |
| Antenna I/O | No |
| Video I/O | 2x HDMI 1.4b Output |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | No |
| Power I/O | 1x LEMO 2-Pin (18 VDC) Input |
| Other I/O | 2x LEMO 5-Pin 2.0 Output |
| Encryption | Yes, 256-Bit AES |
| Wireless | |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| # of Channels | 24 |
| Frequency Range | DFS Frequencies |
| US: 5.27 to 5.67 GHz | |
| Non-DFS Frequencies | |
| US: 5.19 to 5.23 GHz | |
| US: 5.75 to 5.79 GHz | |
| US: 5.94 to 6.42 GHz | |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Bluetooth | 5.0 |
| Mobile App Compatible | Yes: Android & iOS |
| App Name: Bolt App | |
| Cellular Support | No |
| Format Support | |
| Video Format | HDMI/Wireless |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| Input Power | 6 to 18 VDC |
| Battery |
1x V-Mount on Fixed Plate |
| Power Consumption | 7 W |
| Mounting | |
| Tripod/Accessory Mounting | 1x 1/4"-20 Female |
| 1x 3/8"-16 Female | |
| General | |
| Environmental Resistance | No |
| Operating Conditions | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight | 10.30 oz / 292.00 g |
| Packaging Info | |
| Package Weight | 3.04 lb |
| Box Dimensions (LxWxH) | 16.9 x 9.1 x 3.5" |
