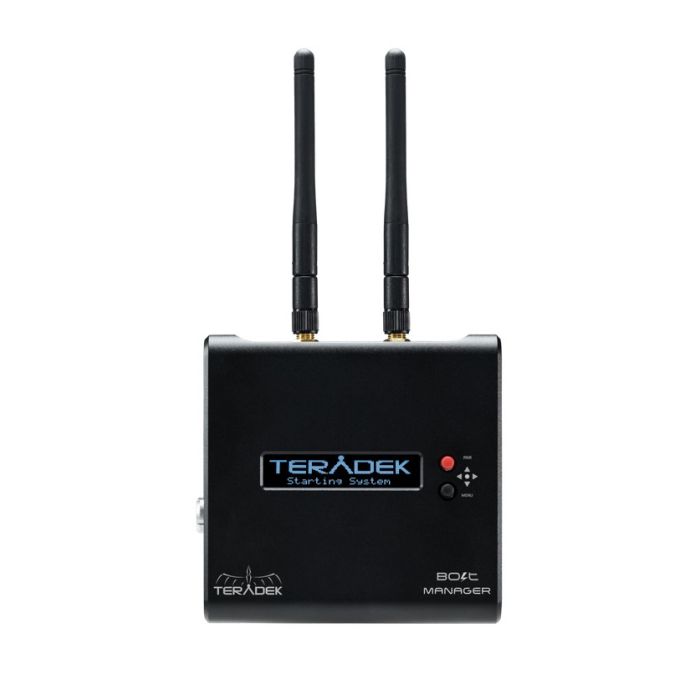

Teradek Bolt Manager 5-Port USB Pairing and Management Device

by Teradek
Dostupnost: Isporuka 7-10 dana
SKU
TRD-10-0032

Quick configuration tool for all Bolt models (3rd Generation or newer)
Update firmware & pair receivers with the click of a button
Manage channels across a multi-receiver set
Does not require a computer
Connect up to 4 receivers at once

1.195,50 € 956,40 €

Sadržaj pakiranja

  • 2 x 2dBi Wifi 2.4/5.8 GHz
  • 1 x 2-pin Connector to 18W AC Adapter Cable
  • 5 x USB 2.0 Cable (A-Male to Mini-B)
  • 1 x Ethernet Cable

Bolt Manager helps you quickly configure your wireless video system without a computer. Perfect for rental houses, the Bolt Manager hardware box lets you rapidly pair multiple receivers*, change wireless channels, update firmware**, and configure regional settings during prep or on set.




*Bolt Manager's pairing feature is only compatible with Bolt 500, 1000, 3000, 10K, Sidekick II / XT / LT, and newer.

**planned for future firmware update

Material Machined Aluminum, black anodized & lasered
Dimensions Approx 5in x 5in x 2in
Weight 8.7 oz
Mountability table top, with rubber feet
Output Voltage 14.4V max from D-Tap Connector
Configuration Interfaces OLED with 2 x joysticks and status LEDs.
WebUI for firmware upgrade
Usb Interface Functionality 5 Powered USB 2.0 host port
Upgrade via Mini-USB
Power Input 2 pin-connector 6-28V DC
Battery None
Operating Temperature 0 - 50 degrees C ambient.
Humidity 0-95% non-condensing
Ethernet 10/100BASE-T
Wireless WiFi: Dual Band MIMO 802.11 a/b/g/n
