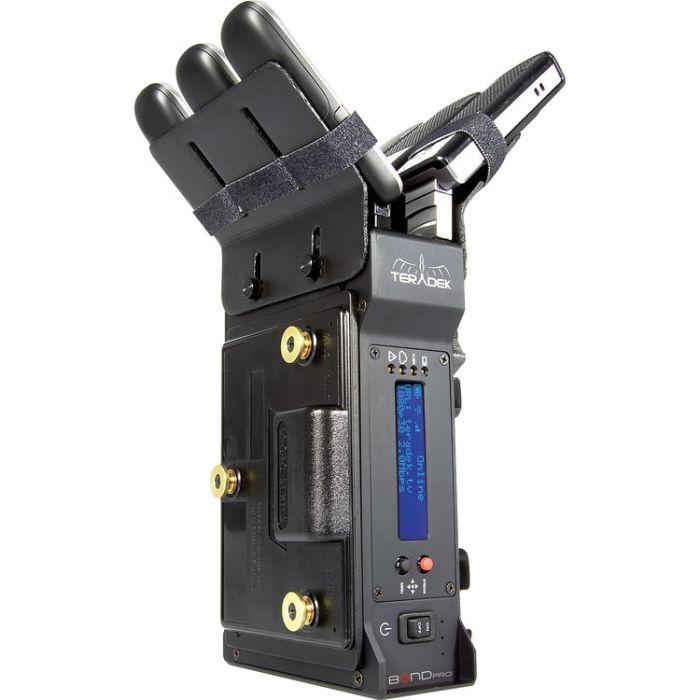

Teradek Bond Pro V-Mount HD-SDI H.264 Cellular Bonding Device
by TeradekThis V-mount Teradek Bond Pro Camera-Back Cellular Bonding Solution allows video professionals to broadcast 1080p HD video over aggregated bandwidth from several network interfaces, including 3G/4G/LTE, WiFi, BGAN, Fiber, and Ethernet (Ethernet bonding requires optional USB to Ethernet adapters).
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek Bond Pro Integrated Camera-Back H.264 Cellular Bonding Solution HD-SDI (V-Mount)
This V-mount Teradek Bond Pro Camera-Back Cellular Bonding Solution allows video professionals to broadcast 1080p HD video over aggregated bandwidth from several network interfaces, including 3G/4G/LTE, WiFi, BGAN, Fiber, and Ethernet (Ethernet bonding requires optional USB to Ethernet adapters).
Bond devices utilize hardware-based high profile H.264 compression, resulting in very low power consumption and long run times. Each bonding solution offers a local monitoring capability on iOS devices, quick access to settings via an OLED display, and IFB for communication from the studio to the field. All Bond devices require a Sputnik server, which converts each bonded feed into a standard video format that can be sent to any streaming platform on the Web or to several H.264 decoders.
| Compatible With | List of Approved Modems: AT&T: USBConnect Momentum 4G (Sierra Wireless Aircard 313U) T-Mobile: Jet 2.0 (Huawei e366) Telstra: BigPond Ultimate (Sierra Wireless Aircard 312U) and BigPond 4G (Sierra Wireless Aircard 313U) Verizon: Pantech UML290 Vodafone: K3805-Z, K5005 (Huawei e398) |
| Video Inputs | HD-SDI, SD-SDI |
| Looping Video Outputs | HD-SDI, SD-SDI |
| Supported Resolutions | 1080i 50 / 59.94 / 60 1080p 23.98 / 24 / 25 / 30 1080PsF 23.98 / 24 / 25 720p 50 / 59.94 / 60 576i, 480i |
| Video Codec | Compression Algorithm: Baseline, Main, and High Profile H.264 Bit Rate: 250 kbps to 10 Mbps Built-in video scaler and deinterlacer |
| Bit Rate | 250 Kb/s to 10 Mb/s |
| Video Streaming Support | MPEG-TS (Point-to-Point TCP or UDP, UDP Unicast, UDP Multicast) RTMP (Adobe Flash Streaming) MPEG-TS license sold separately |
| Audio | Audio Compression: AAC-LC, MPEG Layer 2 Embedded Audio Input Analog Line or Mic in, adjustable gain Headphone output, adjustable volume |
| Interfaces | Feature-rich WebUI for configuration and control OLED LCD display with joystick navigation buttons On / off and reset switch Full size SD Six powered USB 2.0 host ports |
| Network | Ethernet: 10/100BASE-T WiFi: Dual Band 802.11 a/b/g/n MiMO Bonded USB modem support |
| Power | V-mount battery supported Internal rechargeable lithium-ion battery for battery swap purposes |
| Power Consumption | 5 + 2.5 W (max) per USB device Up to 6 + 2.5 W (max) per USB device while charging |
| Power Input | 6 to 28 VDC |
| Dimensions | 4.2 x 1.6 x 5.9" (10.7 x 41 x 15 cm) |
| Weight | 20 oz (567 g) |
