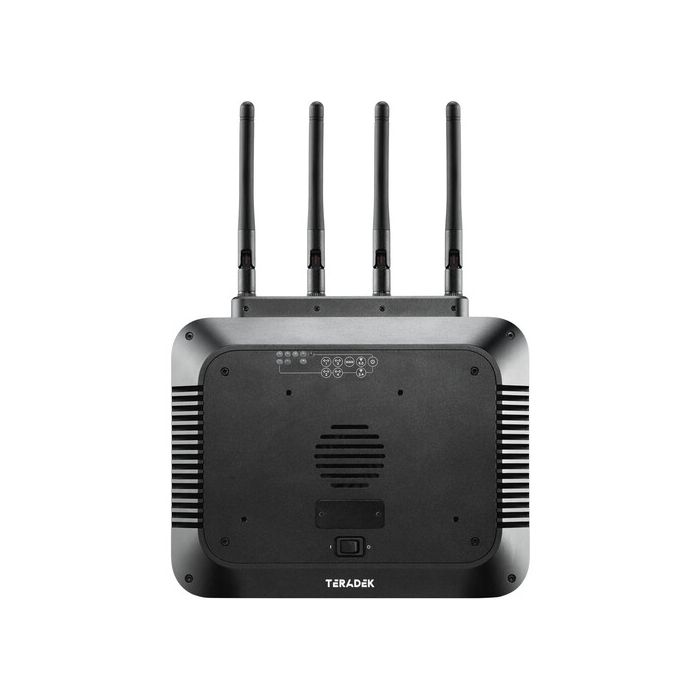

Teradek Link AX Wireless Access Point Router 5 Port
by TeradekExpand your production networking capabilities
Wi-Fi monitoring with multiple Serv devices
20 independent viewers using VUER HDR app
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- 1 x Link AX Wireless Access Point Router 5 Port
- 1 x Lightstand Adapter 3/8in
- 1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable (182.88cm)
Overview
Link AX expands your production networking capabilities with a ruggedized, set-ready aluminum chassis wrapped around a Wi-Fi 6 (802.11AX) router. Use Link AX for multiple workflow scenarios: more cameras and devices on your local production streaming network, camera-to-cloud for multiple cameras; simultaneous camera-control over multiple cameras.
Read the Link AX blog for an in-depth breakdown of real-world workflows.
Built for Production
Wi-Fi monitoring with multiple Serv devices*
20 independent viewers using VUER HDR app on mobile devices*
Add an internet connection to enable remote monitoring or camera-to-cloud workflows
Simultaneous control of multiple cameras over Wi-Fi
Rugged Design
Robust Aluminum Chassis
Gold-Mount and V-Mount Battery Plate Options
⅜” and ¼”-20 Mounting Points
5 customizable ethernet ports
USB-A for cellular modems like Node II with Teradek Data
*Serv Micro, Serv 4K, or Serv Pro required. Sold separately.
| Dimensions | 7.3” W x 5.7” D x 2” H [185mm x 145mm x 51mm] |
| Weight | Without battery plate: 37oz (1046g) |
| With battery plate: 38.4oz (1090g) | |
| Construction | Milled Aluminum |
| Mountability | 2x 1/4”-20 threaded holes, 1x 3/4”-16 threaded hole |
| Interfaces | |
| Configuration Interfaces | Feature rich web UI for configuration nd control |
| Switches | On/Off, Reset, and Reboot switches |
| Status Leds | Multiple LEDs for device, wireless, and network statuses |
| Network | |
| Ethernet | 4x 1Gbps Ethernet Ports |
| 1x 2.5Gbps Ethernet Port | |
| Usb | USB 2.0 |
| Wifi | 2x2 2.4GHz MU-MIMO OFDMA 802.11 b/g/n/ax, max 20dBm per chain |
| 2x2 5GHz MU-MIMO OFDMA 802.11 a/n/ac/ax, max 20dBm per chain | |
| Frequency Range 2.412~2.472GHz, 5.180~5.825GHz | |
| Encryption | 802.11AX, 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES |
| Power | |
| Power Input | 2pin locking connector: 12-28V |
| Nominal Power Consumption | 17.5W (Max) |
| Poe | Supports IEEE 802.3at 48~56V |
| Battery Plates | Integrated Gold or V mount battery plate (optional) |
| Environmental | |
| Operating Temperature | -10ºC to 50ºC |
| Storage Temperature | -40ºC to 90ºC |
| Operating Humidity | 5% to 95% |
| Storage Humidity | Max. 90% |
