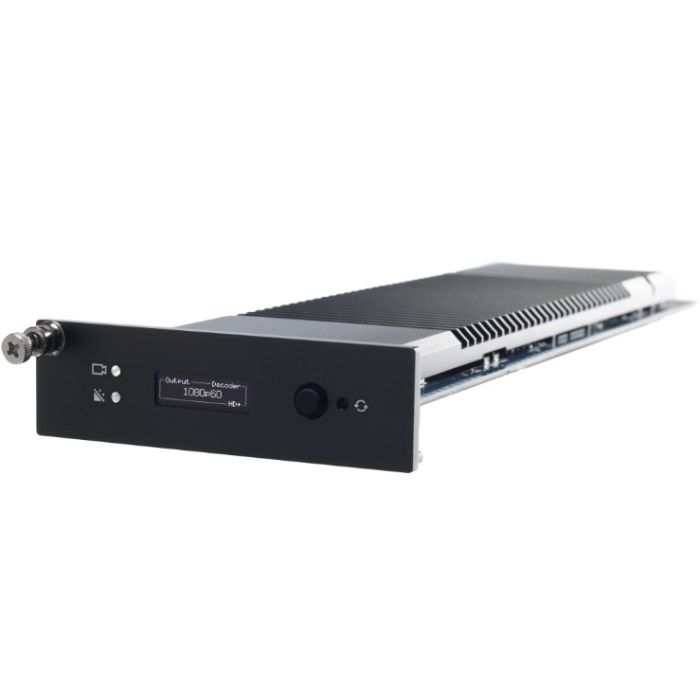

Teradek Prism 871 Prism 871 HD+1080p 10bit HEVC/AVC Decoder Card
by Teradek
Isporuka 14-20 dana
SKU
TRD-10-2871
- Designed for Prism Rack Base System
- HEVC / H.264 compression
- Supports decoding up to 1080p60
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- 1 x Slice Decoder
- 1 x I/O Card
Industry leading, low-latency blade decoder card that will work with your Prism 1RU and 2RU rack mount systems. Prism 871 supports 10-bit, 4:2:2 up to 1080p60 video decoding in a high density format.
Video -
Hdr Support
- HDR,10-bit, 4:2:2
Video Outputs
- 2 x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
Supported Resolutions -
Supported Resolutions
- 1080p 23.98/24/25/29.97/30/50/59.94/60
- 1080i 50/59.94/60*
- 1080PsF 23/24/25/29/30*
- 720p 50/59.94/60
- 576i 480i
- *Prism encoders can encode interlaced or PsF video, but it will be deinterlaced inside the Prism first for H.264. Prism does not output H264 interlaced stream, but
- can output HEVC interlaced streams. Prism decoders can interlace video, i.e. it can receive progressive stream and output 1080i/etc video.
Video Processing -
Video Compression
- ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
- AVC: Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
- ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
- HEVC: Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
Supported Video Bitrate
- 250 Kbps to 85 mbps
Video Format Conversion Support
- Built in Video Scaler and Deinterlacer
Color Correction
- None
Protocol Support -
Network Protocols
- TCP/IP, UDP, HTTP, DHCP, NTP, SSL,IGMP
Supported Video Transport Protocols
- SRT, MPEG-TS, RTSP
Audio Processing -
Audio Compression
- AAC-LC
Outputs -
Audio Output
- Embedded, 2 channels
- 5mm Stereo Line Level Analog
Interfaces -
Configuration Interfaces
- Feature-rich Web UI for configuration and control
- 9” OLED Status Display w/ Nav control
- Video LED
- ENC/DEC LED
Switches
- Reset Switch
Network -
Ethernet
- Dual 10/100/100 Ethernet
Power -
Power Input
- Powered By Chassis
Nominal Power Consumption
- Up to 15W per card
