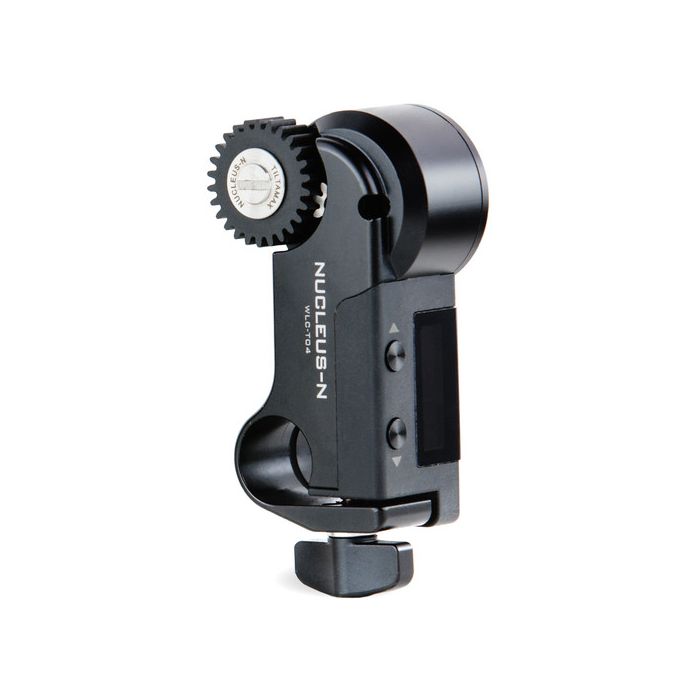

Tilta Nucleus Nano Motor
by TiltaWireless Lens Focus Control Motor
Connects Wirelessly to Hand Wheel
300' Operating Distance
Draw Power via Micro-USB
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Tilta Nucleus-Nano Wireless Lens Control Motor
- 0.8 MOD, 32 Pitch, 26-Tooth Gear
- 15mm Rod Clamp
Pair this Nucleus-Nano Lens Control Motor from Tilta with the separately available Nucleus-Nano Focus Hand Wheel or Nucleus-M FIZ unit to wirelessly control the focus of most DSLR, mirrorless, or cine-style lenses.
The motor comes with a standard 0.8 MOD cine lens gear, operates at up to 1Nm of torque, and can connect wirelessly to the Nucleus-Nano Focus Hand Wheel from up to 300' away. The motor calibrates to your lens automatically, but you can choose to calibrate manually. You can also perform run/stop functions and set hard A and B limits with the buttons on the Hand Wheel for more control over your camera and lens. The motor is also compatible with the Nucleus-M FIZ hand unit and handgrips.
The motor draws power via a 5-18V micro-USB port from a gimbal or D-Tap battery with a separately available cable. The motor is constructed with aluminum, plastic, and stainless steel for durability. It can mount on a stand, rig, or gimbal with its built-in 15mm rod clamp.
Note: Use only run/stop cables specifically designed for the Nucleus-Nano; Tilta wooden handle run/stop cables are not compatible or safe to use with this unit. All cables are available separately.
Wireless focus motor for DSLR, mirrorless, or cine-style lenses
The low-noise 5-18V motor operates with 0.65 to 1 Nm of torque
Includes a 0.8 MOD, 32 pitch, 26-tooth cine standard gear
300' wireless range to connect to lens controllers
Powers via micro-USB from D-Tap battery or gimbal with a separately available 5V cable
Use start/stop function and set A/B limits with buttons on the Hand Wheel
Connects to rigs, gimbals, and rods with a built-in 15mm rod clamp
Compatible with Nucleus-Nano Focus Hand Wheel Controller, Nucleus-M FIZ hand unit, and Nucleus-M handgrips
Material of Construction | Aluminum, plastic, stainless steel |
Power Input | Micro-USB |
Voltage | 5 to 18 V |
Torque | 0.65 Nm at 5 V 1 Nm at 14.8 V |
Gear | 0.8 MOD, 32 pitch, 26 teeth |
Rod Compatibility | 15 mm |
Operating Distance | 300' / 91 m |
Wireless Protocols | Not supplied by manufacturer |
Dimensions | 3.1 x 0.9 x 1" / 8 x 2.3 x 2.4 cm |
Weight | 2.7 oz / 76 g |
