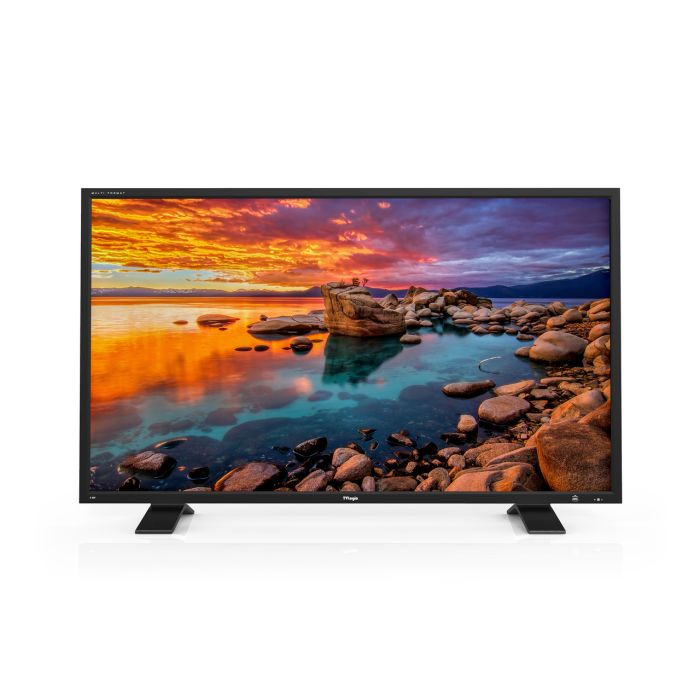

TVLogic S-55P 55'' FullHD Studio wall monitor

by TVLogic

Dostupnost: Isporuka 14-20 dana

SKU

TVL-S-55P

PBP(Picture by Picture) - Support displaying multiple inputs on the screen at the same time.
Time Code Display - Displays the Timecode information on the screen.
User Aspect - Adjusts the Width /Height display ratio.

8.373,75 € 6.699,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

S-55P Monitor
Power Cable
Stand

Opis

The S-55P is Full HD Studio Wall monitor with high contrast ratio and wide viewing angle. It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility. The S-series provides network control by Ember+ protocol and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.

HDR Emulation

A true HDR monitor must employ a special display panel with high dynamic range and a wide colour gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI colour gamut.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Custom 3D LUT Import

Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.Vector Scope: Displays the colour components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Specifikacije

Size	55"

Resolution	1920 X 1080 (16:09)

Pixel Pitch	0.530mm

Colour Depth	1.07B

Viewing Angle	178°(H) / 178°(V)

Luminance	5450cd/m2

Contrast Ratio	1,200:1

Display Area	1209(H) × 680(V) mm

Inputs	2x BNC: 3G-SDI A/B Channel Input
	1x HDMI: HDMI Input
	1x DVI: DVI Input

Outputs	2x BNC:3G-SDI Output

Input Signal	3G SDI: 2.970Gbps
	HD SDI: 1.485Gbps
	SD SDI: 270Mbps
	HDMI: 480i/480p/576i/576p/720p/1080i/1080p/640x480/
	720x400/800x600/1024x768/1600x1200
	DVI Analog: 640x480/720x400/800x600/1024x768/1600x1200/1920x1080
	DVI DP: 640x480/720x400/800x600/1024x768/1600x1200/1920x1080
	DVI DH: 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/
	480i(60)/480p(60)/576i(50)/576p(50)

SDI Input Signal Formats	SMPTE 425M-A/B: 1080p
	(60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) /1080i (60/59.94/50)
	SMPTE 372: Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI
	YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
	SMPTE 296: 720p (60/59.94/50)
	SMPTE 274: 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
	SMPTE 260: 1035i (60/59.94)
	SMPTE 125: 480i (59.94)
	ITU-R BT.656: 576i (50)
	2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)

Audio In	Embedded Audio/Analog Stereo (Phone Jack)

FPGA Functions	1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display,
	Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono,
	Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector

Closed Caption	CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR

Calibration	TVLogic Colour Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions	REMOTE: GPI (RJ45)
	REMOTE: TVLogic’s specification
	USB: Firmware update by USB memory stick
	Ethernet: Ethernet Control support
