Vinten Pedestal Osprey Elite S (OB)

Dostupnost: Isporuka 14-20 dana
SKU
V4172-0002
  • Supports up to 177 lb
  • Two Stages for High and Low Shots
  • Detachable Skid for Easy Breakdown
34.431,75 € 27.545,40 €

Sadržaj pakiranja

  • Vinten Osprey Elite S 2-Stage Steering Pedestal (OB)
  • Quickfix Quick Release System
  • Accessory Holder
  • Manual Pump
  • Kick Ring

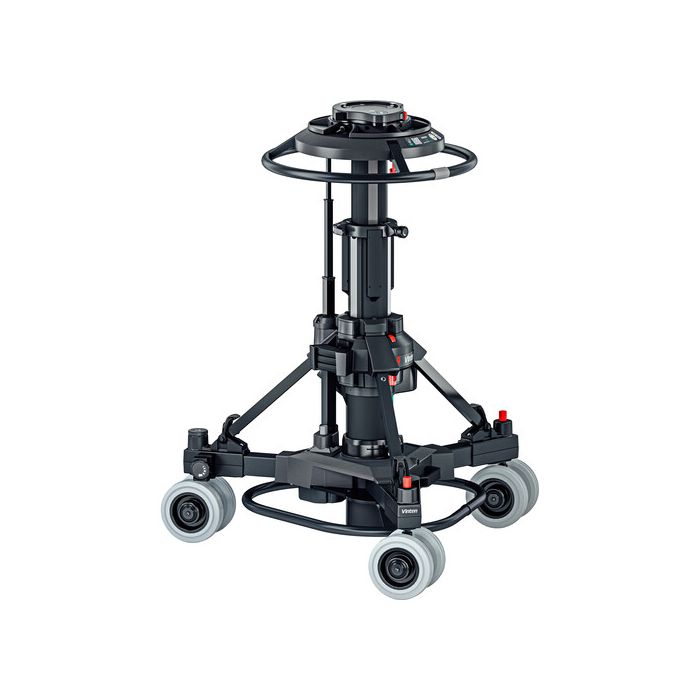

The Osprey Elite S 2-Stage Steering Pedestal (OB) from Vinten is a portable outside broadcast pedestal designed for large payloads up to 177 lb, ideal for supporting large Vinten Vector heads, digital cinema and broadcast cameras, and full-size professional teleprompters. A detachable skid allows the unit to easily break down into two sections for transportation and storage.

A manual pump and an inlet valve allow quick setup and easy balancing, while single- and all-wheel crab steering support lets you swiftly move in tight spaces and on shot direction changes. Sturdy 6.2" wheels make the pedestal ideal for greater ground clearance in exterior broadcast and film production applications.

Key Features

  • Full, 2-stage balance range for total 'on shot' elevation, perfect for moving from seated to standing talent in game shows, entertainment shows, drama, and performances
  • Built-in pressure gauge for easy counterbalance setup
  • Wheel rim braking mechanism eliminates tire flat spots for super-smooth rolling shots
  • Pedestal supplied with a Quickfix quick release system and operator storage area
  • Column can be adapted to work on a dolly track

Vinten Osprey Elite S Specs

General

On Shot Stroke

30.3" / 77 cm

Head Fitting

Flat Base

Height

2.2 to 4.8' / 0.69 to 1.46 m

Clearance

Ground: 13.5" / 34.50 cm

Tracking Width

37" / 94 cm

Transit Doorway Width

27.5" / 70 cm

Steering Ring Diameter

21" / 53.5 cm

Wheel Diameter

6.2" / 16 cm

Wheel Lock

Single-Point

Physical

Load Capacity

176.4 lb / 80 kg

Dimensions

Not Specified by Manufacturer

Weight

111.3 lb / 50.5 kg
