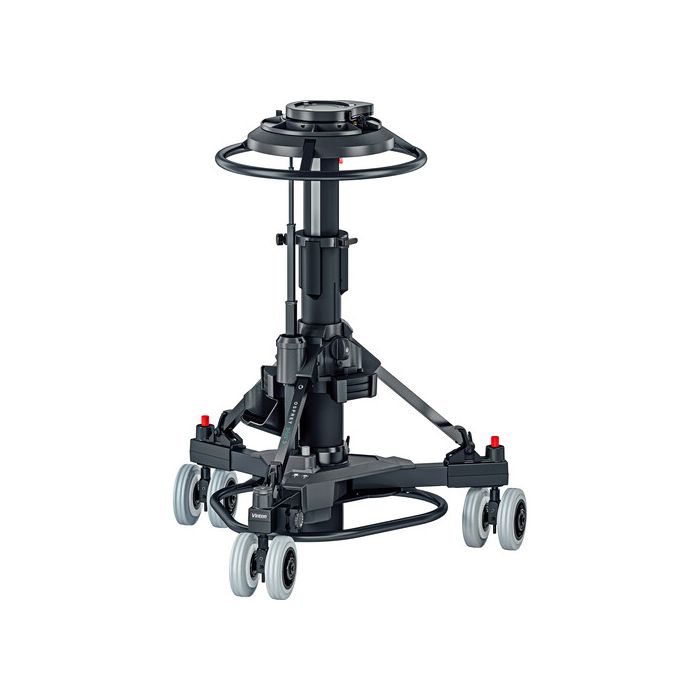

Vinten Pedetal Osprey Plus S (OB)

Dostupnost: Isporuka 14-20 dana
SKU
V4171-0002
  • Supports up to 154.3 lb
  • Two Stages for High and Low Shots
  • Detachable Skid for Easy Breakdown
21.770,00 € 17.416,00 €

Sadržaj pakiranja

  • Vinten Osprey Plus S 2-Stage Steering Pedestal (OB)
  • Quickfix Quick Release System
  • Accessory Holder
  • Manual Pump
  • Kick Ring

In the fast-paced realm of film and television production, where quickly setting up shots is a primary and critical goal, the Osprey Plus S 2-Stage Steering Pedestal (OB) from Vinten is the ideal lightweight and compact pedestal for your camera system in outside broadcast applications. Thanks to its detachable skid, the unit easily breaks down into two sections for transportation and storage. It is capable of handling payloads up to 154.3 lb.

A manual pump and an inlet valve allow for quick setup and easy balancing and the 2-stage design provides flexibility for high and low shots. The unit's column is adaptable to work on dolly track and single-wheel and all-wheel crab steering are supported, allowing you to swiftly move around in tight spaces and on shot direction changes. Sturdy 6.2" wheels make the pedestal ideal for greater ground clearance in exterior broadcast and film production applications.

Key Features

  • Upper stage perfect balance for on-shot performance
  • Balance-assisted second stage for easy elevation and extended height range
  • Full crab and steer facilities are controlled from a central steering ring
  • Built-in pressure gauge and manual pump for easy counterbalance setup
  • Pedestal is supplied with Quickfix quick release system and operator storage area
  • Column can be adapted to work on a dolly track
  • Wheel rim braking mechanism eliminates tire flat spots for super-smooth rolling shots

Vinten Osprey Plus S Specs

General

On Shot Stroke

16.14 in / 41 cm

Stages

2

Head Fitting

Flat Base

Height

2.3 to 4.9' / 0.70 to 1.51 m

Clearance

Ground: 1.3" / 3.45 cm

Tracking Width

37" / 94 cm

Transit Doorway Width

27.5" / 70 cm

Steering Ring Diameter

21 in / 53.5 cm

Wheel Diameter

6.2" / 16 cm

Wheel Lock

Single-Point

Physical

Load Capacity

154.3 lb / 70 kg

Dimensions

Not Specified by Manufacturer

Weight

100.97 lb / 45.8 kg
