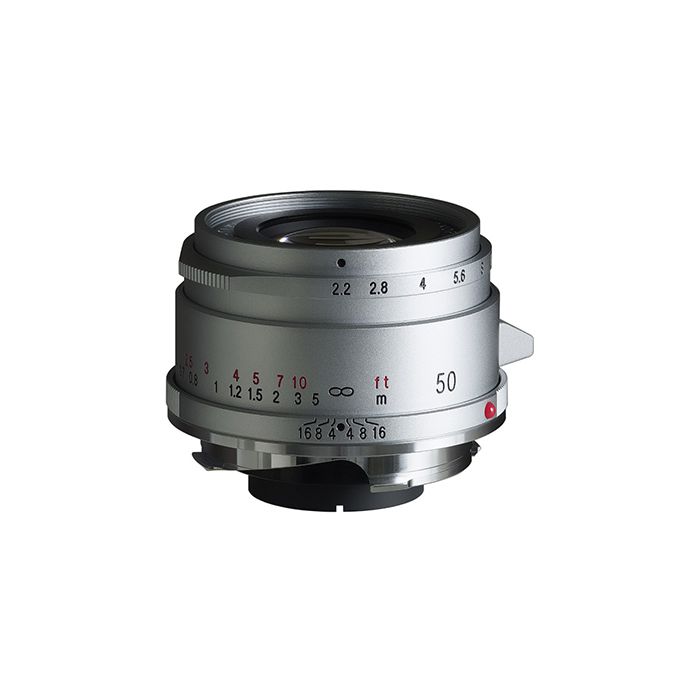

Voigtlander Color-Skopar 2,2/50 mm VM silver

by Voigtlander
Dostupnost: Isporuka 7-10 dana
SKU
VT-119894

With a maximum aperture of F2.2, the lens is a standard lens with a focal length of 50 mm, yet its overall length from the mount surface is a mere 30 mm.

681,25 € 545,00 €
Novo

Sadržaj pakiranja

  • Voigtlander Color-Skopar 2,2/50 mm VM silver

With a maximum aperture of F2.2, the lens is a standard lens with a focal length of 50 mm, yet its overall length from the mount surface is a mere 30 mm. 7 elements in 6 groups, including 3 elements of anomalous partial dispersion glass, provide excellent optical performance from a maximum aperture of F2.2. Compact and highly mobile, this lens is ideal for all-round use.

The overall length from the mount surface is reduced to 30 mm and the filter diameter is the traditional size of ø39 mm. It has a compact appearance that is highly portable and easy to take in and out of a bag.

The focusing tab is shaped to fit your finger to ensure fast and precise focusing.

The lens focuses beyond the minimum rangefinder-coupled focus distance of 0.7m all the way down to 0.5m. This feature is especially useful when using the lens on a camera with a live view function.

A compact, straight-type hood with a shape that does not interlap the rangefinder camera's rangefinder frame is included.

Employs a very precisely machined and adjusted all metal helicoid unit lubricated with high quality grease to realize smooth focusing operation with just the right amount of torque. This enables very precise focusing.

Uses the VM-mount lens mount compatible with Leica M-mount. Not only can this lens be used on rangefinder-coupled cameras, but design-wise it also balances very nicely when mounted on mirrorless digital cameras with a mount adapter.

The high-precision rangefinder coupling mechanism enables precise focusing in focus critical situations such as when shooting at or close to maximum aperture. The lens features a generous imaging circle that covers the 35 mm full frame format. Furthermore, its size is extremely compact compared to interchangeable lenses for single-lens reflex cameras.

OPTICAL DESIGN
Focal length 50mm
Speed F/2.2
Maximum format 35mm full frame
Mount Leica M
Diagonal angle of view 46.8°
Lens construction 7 elements in 6 groups
  3 AD
ON LEICA M8/M8.2 APS-H [1.33X] CAMERAS
35mm equivalent focal length 66.5mm (in terms of field of view)
35mm equivalent speed F/2.9 (in terms of depth of field)
Diagonal angle of view 36°
DIAPHRAGM MECHANISM
Diaphragm type Manual
Aperture control Aperture ring
Number of blades 10 (ten)
FOCUSING
Coupled to the rangefinder Yes (from 0.7m)
Closest focusing distance 0.5m
Magnification ratio <No data>
Focusing modes Manual focus only
Manual focus control Focusing tab
PHYSICAL CHARACTERISTICS
Weight 135g
Maximum diameter x Length ⌀51.4×30mm
Weather sealing -
Fluorine coating -
ACCESSORIES:
Filters Screw-type 39mm
Lens hood Screw-type round
