Advanced Bowens Mount Projection Lens for High-Output Point Source LEDs

Sadržaj pakiranja

  • Aputure Spotlight Max

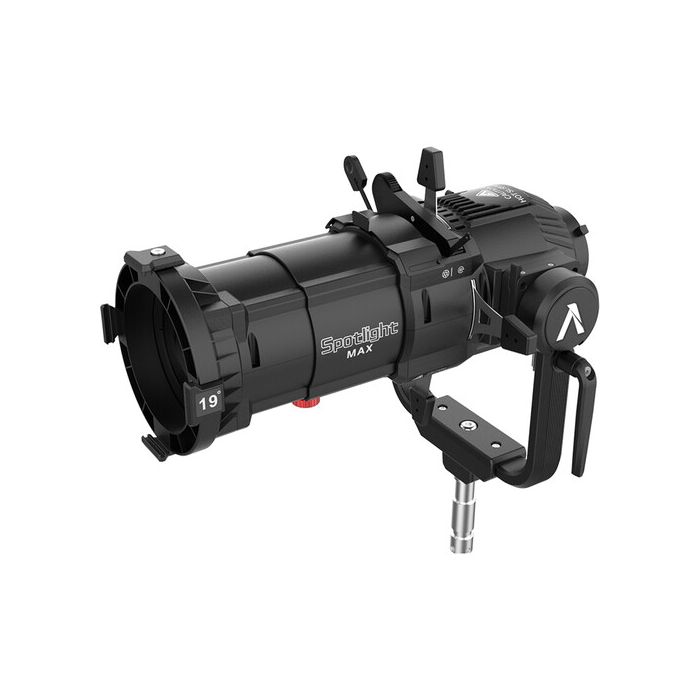

The Spotlight Max is a Bowens Mount projection lens modifier designed to bring an advanced degree of control to high-output Bowens Mount point-source fixtures from the LS 600d Pro and LS 1200d Pro to the Electro Storm CS15 and Electro Storm XT26, transforming them into a powerful spotlight with a further reach and even, shapeable output.


Projection lenses are key tools for filmmakers who need to precisely shape their light. Available in 19º, 36º, and 50º lens options, the Spotlight Max's interchangeable lenses* covers a wide range of light projection needs on set. Whether shaping your light through a perfectly circular spotlight, using the built-in shutters to create frames of light, or gobos to project unique patterns, the Spotlight Max features precision optics that will elevate the capabilities of your high-output Bowens Mount point-source light.


With its precision optical design, the Spotlight Max efficiently concentrates and blends light into a focused, even beam, achieving a 60% increase in brightness from the Spotlight Mount. Featuring advanced telecentric lens technology, the Spotlight Max produces an illumination circle with even edge-to-edge light distribution and minimal edge fringing.


Built with internal shutters, you can easily shape the beam for sharp cuts and precision lighting control. For further light manipulation, the optional dual-layer Spotlight Max Iris* can quickly hone the shape and size of your illumination circle without needing to swap projection lenses. The Spotlight Max also features a Rotatable Gobo Holder compatible with A-size and B-Size steel or glass gobos to enhance any lighting design. And for even more options, it is also compatible with ETC projection lenses with the optional Spotlight Max ETC Lens Adapter* for maximum compatibility.

19º Lens Dimensions
Spotlight Max 19º Lens 20.47 x 19.94 x 26.58cm / 8.06 x 7.85 x 10.46in
19º Lens Diameter (Inner) 11.9cm / 4.69in
19º Lens Diameter (Outer) 12.8cm / 5.04in
19º Lens Kit w/o Yoke 48.9 x 25.0 x 25.0cm / 19.3 x 9.8 x 9.8in
19º Lens with Yoke 48.9 x 25.0 x 50.1cm / 19.3 x 9.8 x 19.7in
19º Lens Weight
Spotlight Max 19º Lens 4.81kg / 10.60lbs
19º Lens Kit 12.44kg / 27.43lbs
36º Lens Dimensions
Spotlight Max 36º Lens 20.47 x 19.94 x 26.58cm
36º Lens Diameter (Inner) 11.9cm / 4.69in
36º Lens Diameter (Outer) 8.25cm / 3.25in
36º Lens Kit w/o Yoke 48.9 x 25.0 x 25.0cm / 19.3 x 9.8 x 9.8in
36º Lens Kit with Yoke 48.9 x 25.0 x 50.1cm / 19.3 x 9.8 x 19.7in
36º Lens Weight
Spotlight Max 36º Lens 3.67kg / 8.09lbs
36º Lens Kit 11.30kg / 24.91lbs
50º Lens Dimensions
Spotlight Max 50º Lens 20.47 x 19.94 x 24.74cm / 8.06 x 7.85 x 9.74in
50º Lens Diameter (Inner) 11.7cm / 4.61in
50º Lens (Outer) 10.4cm / 4.09in
50º Lens Kit w/o Yoke 47.2 x 25.0 x 25.0cm / 18.58 x 9.8 x 9.8in
50º Lens Kit with Yoke 47.2 x 25.0 x 50.1cm / 18.58 x 9.8 x 19.7in
50º Lens Weight
Spotlight Max 50º Lens 3.92kg / 8.64lbs
50º Lens Kit 11.54kg / 25.44lbs
Spotlight Max Iris 22.3 x 12.8 x 1.35cm / 8.78 x 5.04 x 0.53lbs
ETC Lens Adapter 13.98 x 13.98 x 10.5cm / 5.50 x 5.50 x 4.13in
Size-A Gobos (Individual) 100 x 0.5mm / 3.94 x 0.02in
Spotlight Max Iris 0.25kg / 0.55lbs
ETC Lens Adapter 0.53kg / 1.17lbs
Size-A Gobos (Individual) 21.8g / 0.05lbs
