Blackmagic Design Universal Videohub 72 Full Router

Raspoloživost: Isporuka 7-10 dana
SKU
VHUBUV/0A1/72

72-Input/72-Output Crosspoint Routing
Supports SDI and Optical SDI Interface
Supports SD, HD, 2K, and 4:4:4
Modular Interface Cards

114.275,00 kn 91.420,00 kn

Sadržaj pakiranja

  • Blackmagic Design Universal Videohub 72 Full Router
  • Universal Videohub 72
  • Universal Videohub 72 Crosspoint Card
  • 18 x Universal Videohub SDI Interface Cards
  • Universal Videohub 450W Power Card
  • 2 x Power Supplies - Videohub 12V150W

The Blackmagic Design Universal Videohub 72 Full Router enables crosspoint routing between 72 inputs and 72 outputs. The router supports up to 18 modular interface cards, with each card supporting four inputs and four outputs. Interface cards are available with either SDI or Optical SDI connectors supporting 3 Gb/s video signals. This allows you to mix and match cards, so your router can be either all SDI, all optical-SDI, or a mix of SDI and optical-SDI.

Each interface card features auto standards detect, so you can connect your video, and the card will auto detect the video signal. All outputs are re-clocked for smooth video display. Ethernet connection permits control of the router via hardware control surface, tablet, or computer. You can also customize your own control units with the available SDK (Software Development Kit).

Router Design
The Universal Videohub lets you build your own broadcast quality 3 Gb/s SDI and optical fiber SDI router for SD, HD, 4:4:4 and 2K video formats. Universal Videohub frames come in a choice of two sizes that let you expand your router up to either a 72 x 72 or 288 x 288 crosspoint sizes. You can hot-swap interface cards while working live without the need to power down the router.
Modular Interface Cards
Each SDI and optical fiber SDI interface card features 4 inputs and 4 outputs, plus a breakout cable port for deck control. The Universal Videohub Deck Control Cable breaks out to 4 separate RS-422 connections. The SDI and optical fiber interface cards also support 16 channels of embedded SDI audio. For maximum flexibility, interface cards are all the same size and fit both Universal Videohub 72 and Universal Videohub 288, which is great if you need to switch to a different frame size in the future.
Included Interface Cards
The Universal Videohub 72 comes with 18 x SDI interface cards and one 72 x 72 crosspoint card that enable switching.
Software Customization
You can customize buttons, sources, and destinations using the Windows and Mac software included with each Videohub control panel (control panel not included with Universal Videohub). Connect to the built-in USB connection and then run the software. You can select where the Videohub is on your network, as well as how many destinations you want on the panel. You can even select the backlighting brightness, as well as if you want a "take" button.
Ethernet
You can plug your Universal Videohub router into your existing computer network. If you want to use your Videohub in mission critical environments, you can even connect Videohub control panels to routers via a dedicated Ethernet switch. Optional Videohub hardware control panels also include loop-through Ethernet connections; perfect for looping to other control panels or computers allowing you to daisy-chain dozens of control panels.

Connections Inputs
72 x BNC: 3G/HD/SD-SDI & ASI
Reference: 1 x BNC

Outputs
72 x BNC: 3G/HD/SD-SDI & ASI:

Control
1 x RS-422
1 x RJ45: Ethernet
1 x micro USB
Video Formats 2K DCI
25p/24p/23.98p

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
Video Sampling SDI Video
4:4:4 10-bit
4:2:2 10-bit

SDI Audio
48 kHz, 24-bit
Color Space YUV or RGB
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B
ITU‑R BT.656, ITU-R BT.601
SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M
OS Support Mac
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later

Windows
8.1 or 10
Environmental Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 113°F / -20 to 45°C
Relative Humidity: 0 to 90%

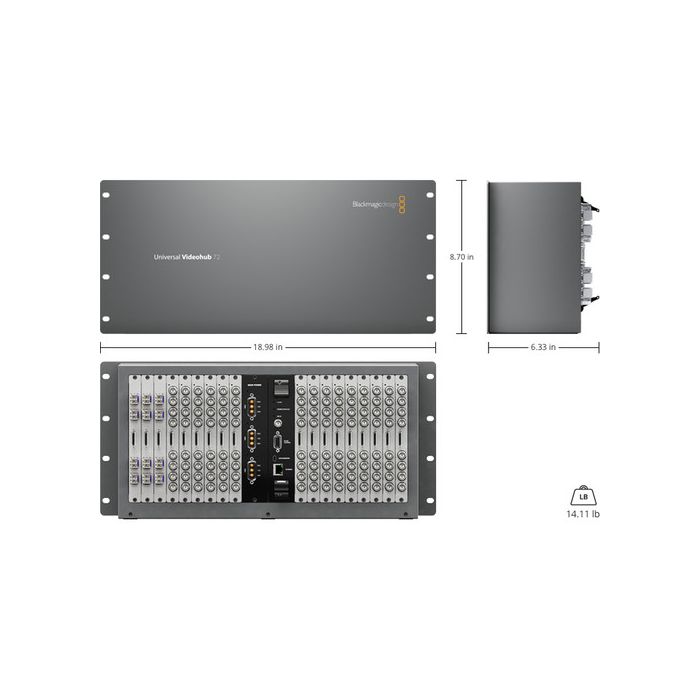

Dimensions 18.98 x 8.70 x 6.33" / 48.21 x 22.10 x 16.08 cm
Weight 14.1 lb / 6.4 kg
