- Deity BF1 butterfly antenna (2 kit, Wide Band UHF)

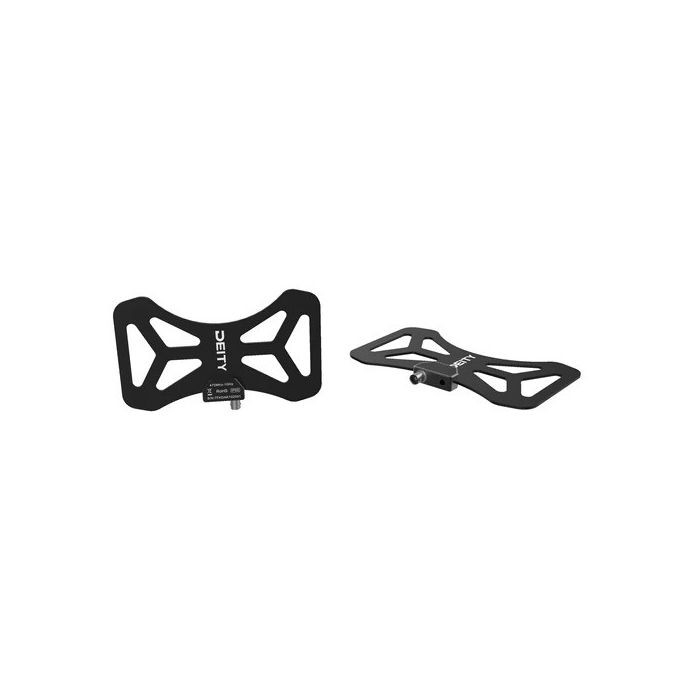

Deity BF1 butterfly antenna (2 kit, Wide Band UHF)
by DeityA butterfly antenna is a type of antenna that is used in wireless microphone systems on film sets and stage applications.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- 2x BF1 Antenna
- 1x Antenna Pouch
- 2x Antenna Clamp Mount
- 2x BNC - BNC Cable
- 2x BNC - SMA-M Cable
A butterfly antenna is a type of antenna that is used in wireless microphone systems on film sets and stage applications. It has some unique characteristics that make it well-suited for certain purposes in these contexts.
- Ultra Wideband Design
- 470MHz-1GHz
- Rugged Build Quality
- CNC Metal Mount
- 50Ohm BNC Connector
- Omnidirectional pickup pattern
- Compact Design
The Deity Butterfly bow-tie antenna is designed to have a relatively wide bandwidth. This means it can operate effectively over a range of frequencies, which can be advantageous in wireless microphone systems. Film sets often use different frequency bands for wireless microphones to avoid interference, and a broadband antenna like ours that can cover all these bands without needing frequent adjustments.
SUPPORTS GLOBAL ONEBAND™ FREQUENCIES
The Deity Butterfly supports a ultra wideband of frequencies; 470MHz-1,000GHz. This means you have plenty of support for the Global OneBand within the THEOS ecosystem but also plenty of extra frequency bandwidth to support other brands wireless as well.
Now when you go into an antenna splitter, you can mix-n-match different blocks/bands.
WEATHER SEALED HOUSING
Our BNC mount is IP65 weather sealed for situations where the butterfly antenna is being used for a permanent outdoor install.
METAL MOUNT BRACKETS
Our mounting bracket is made out of CNC'ed Aluminum which provides a rugged and secure block for a 1/4" 20 threaded mounting hole.
The ball head pivot arms are also made out of 100% metal, making for a durable accessory.
*The Deity AMB1 not included
LINE OF SIGHT TEST RESULTS
Regarding line of sight signals, the BF1 beats other Biconical antenna (bowtie antenna) in a head to head signal strength test.
OBSCURED RECEPTION RESULTS
Regarding obscured signals, the BF1 meets or beats other Biconical antenna (bowtie antenna) on the market in a head to head signal strength test.
Antenna Type | Passive |
Frequency Range | 470MHz~1GHz |
Gain | Ave +2.2dBi |
Impedence | 50 Ohm |
RF Connector | BNC |
Standing Wave Ratio | <1.5 (550~750MHz) |
Built-In Filter | None |
Pickup Pattern | Omni-Directional |
Mounting | 1/4"-20 |
Material | Composite Fiberglass |
Dimensions (H x W x D) | 19*11.5*15 mm |
7.5*4.5*.6 inch | |
Weight | 98 g (Antenna Only) |
3.4 oz |
