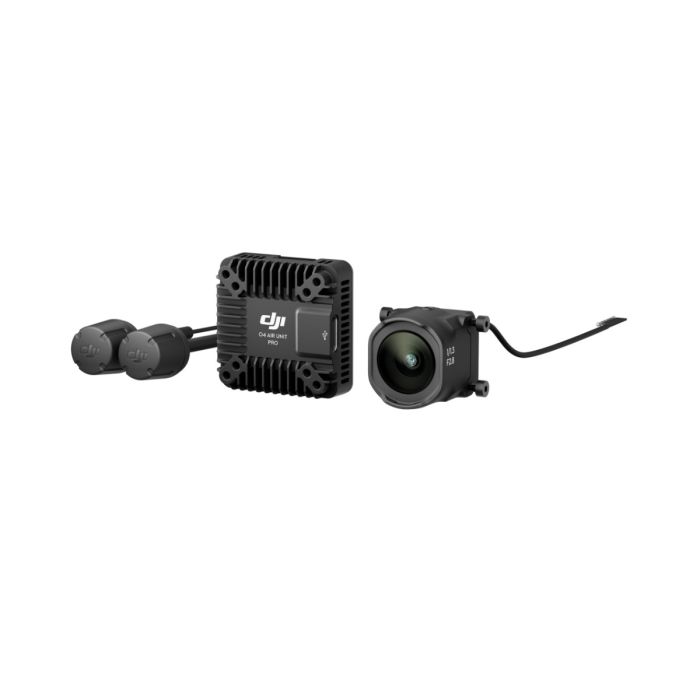

DJI O4 Air Unit Pro

by DJI
Dostupnost: Isporuka 14-20 dana
SKU
CP.FP.00000233.01

The DJI O4 Air Unit Series is equipped with the DJI O4 video transmission system, achieving ultra-low latency for more responsive controls.

259,00 € 207,20 €
Novo

Sadržaj pakiranja

  • DJI O4 Air Unit Pro Camera Module × 1
  • DJI O4 Air Unit Pro Transmission Module × 1
  • DJI O4 Air Unit Pro Antenna × 2
  • DJI O4 Air Unit Pro 3-in-1 Cable × 1

The DJI O4 Air Unit Series marks a new leap in video transmission performance, delivering a cutting-edge digital video transmission solution with higher resolution, lower latency, and extended range. Weighing just 8.2 grams, the DJI O4 Air Unit features a 1/2-inch image sensor capable of capturing 4K/60fps video, offering both portability and versatility. Taking it a step further, the DJI O4 Air Unit Pro boasts an enhanced imaging capability with a 1/1.3-inch image sensor, capable of recording 4K/120fps video. It also supports impressive features such as 10-bit D-Log M color mode and a 155° ultra-wide FOV, [1] capturing the vast expanse of the world in unparalleled detail.

New Heights in Transmission, More Freedom in Flight

The DJI O4 Air Unit Series is equipped with the DJI O4 video transmission system, achieving ultra-low latency for more responsive controls. Paired with the dual-antenna design of the DJI O4 Air Unit Pro, the max transmission distance can reach up to 15 kilometers, [2] and the system can automatically select the most stable frequency. Whether soaring over mountains and rivers or navigating indoor spaces, you can perform confidently and with precision.

  • H.265 Video Transmission - 1080p/100fps
  • Max Video Transmission Range - 15 km [2]
  • Ultra-Low-Latency Video Transmission - 15 ms [3]
  • Max Video Transmission Bitrate - 60 Mbps [4]

Crisp and Fluid, Visually Striking

The DJI O4 Air Unit Series is capable of recording 4K/60fps video. The video transmission system utilizes H.265 video encoding, supporting high-frame-rate transmission at 1080p/100fps, ensuring clear and smooth real-time imagery. No matter how fast you fly, the camera view keeps up.

New Racing Mode: Unleashed Speed, Unlimited Fun

The DJI O4 Air Unit Series introduces a new Racing Mode, [5] with video transmission latency as low as 15 milliseconds. [3] It supports up to eight aircraft* racing simultaneously, taking you on an exhilarating, high-speed journey through the skies.

* Regulations vary by country and region, and actual performance may differ.

  • 15km [2] - Max Video Transmission Range

Upgraded Imaging: Cinematic Masterpieces at Your Fingertips

The DJI O4 Air Unit features a 1/2-inch image sensor, capable of capturing 4K/60fps video. The DJI O4 Air Unit Pro goes a step further with a 1/1.3-inch image sensor, supporting 4K/120fps video recording. [1] No need for an external action camera to achieve ultra-wide-angle, high-definition footage. Creating stunning visuals has never been so effortless.

155° Ultra-Wide FOV

With a 155° ultra-wide FOV, easily navigate through complex terrains and capture breathtaking flight footage.

4K/120fps Video

Supporting 4K/120fps recording, it delivers high image quality and a smooth camera view, offering you a cinematic visual experience.

10-bit D-Log M Color Mode

Retains more details in highlights and shadows, giving you greater flexibility in post-production editing.

Multiple Stabilization Modes

With RockSteady, even high-speed flights maintain steady video capture. Additionally, it's compatible with the Gyroflow software for offline post-stabilization, [6] ensuring smooth and stable footage every time you fly.

Even in Intense Light, Create With Confidence

The DJI O4 Air Unit Pro Camera Module can be used with the DJI Avata 2 ND Filter Set (ND8/16/32). [7] Even in bright lighting conditions, it ensures balanced exposure and true-to-life colors. This allows you to flexibly control light intake and shutter speed, easily achieving natural motion blur and making your footage more dynamic and impactful.

Compatible With Canvas Mode: Your Flights, Your Way

You have full control over what's displayed on your screen. The DJI O4 Air Unit Series supports Canvas Mode and Betaflight OSD settings. You can customize the real-time data and layout displayed on your goggles screen, making flight data clear at a glance, and enhancing your control precision.

Lightweight Design, Effortless Adaptation

The DJI O4 Air Unit Series adopts a lightweight and portable design with extensive compatibility. Specifically, the DJI O4 Air Unit can fit drone frames of 2 inches and smaller, supporting flexible assembly to suit various creative flight scenarios. Experience the thrill of flying while capturing high-quality footage with ease.

DJI O4 Air Unit Pro

  • 32 g [8] - Air Unit Weight (camera module included)
  • 25.6 × 20 × 23.3 mm [8] - Camera Module Dimensions
  • 33.5 × 33.5 × 13 mm [8] - Air Unit Dimensions

Compatible With Various Goggles and Remote Controllers [9]

Compatible with DJI Goggles 3 and DJI Goggles N3, and can be used with the DJI FPV Remote Controller 3. [10]

* All data on this page was collected in a controlled test environment. Actual experience may vary depending on the environment, usage, and firmware version.

** When recording with a high resolution and high frame rate, the product may overheat and stop recording due to the relatively high power consumption. If this occurs, please return and land in time to cool down. Additionally, please take effective heat dissipation measures and avoid blocking ventilation holes.

1. The DJI O4 Air Unit Pro supports an optional ultra-wide shooting mode. The 155° FOV is only available when Camera FOV is set to Ultra Wide, electronic image stabilization (EIS) is turned off, and the video frame rate is set to 60fps or below.

2. Under FCC standards, in an open outdoor environment free of interference, the max video transmission range for the DJI O4 Air Unit Pro is 15 km. For the DJI O4 Air Unit, max video transmission range is 10 km.

3. The DJI O4 Air Unit offers a lowest video transmission latency of 20 ms, while the DJI O4 Air Unit Pro achieves a lowest latency of 15 ms. These measurements were taken using DJI Goggles 3 in Racing Mode.

4. Transmission bitrate with Racing Mode off. Measured in an open environment free of interference. Actual transmission bitrate varies depending on the operating environment.

5. Enabling Racing Mode requires DJI Goggles 3 or Goggles N3. In this mode, the default video recording specification is set to 1080p/100fps, and the video transmission channel mode switches to Manual, offering bandwidth options of 20 MHz or 40 MHz. The channel selection supported in racing mode may vary based on regulations in different countries and regions.

6. To use Gyroflow stabilization, turn off EIS in the goggles menu before flight and set Camera FOV to Wide to ensure that the footage is recognized by Gyroflow and stabilized effectively.

7. Sold separately.

8. The size and weight may be slightly different due to the configuration, manufacturing process, and measurement method; and the air unit weight of the DJI O4 Air Unit is without the lens mount. When including the lens mount, the weight is 9.2 grams.

9. Compatible with DJI Goggles N3, DJI Goggles 3, DJI Goggles Integra, DJI Goggles 2, DJI FPV Remote Controller 3, and DJI FPV Remote Controller 2. These products are sold separately.

10. The flight controller must be configured to support the SBUS protocol within the ground station to be compatible with the DJI FPV Remote Controller 3.

11. The recommended frame size is for reference only. Always refer to the actual design and dimensions of your frame for accurate compatibility.

Air unit
Weight Air Unit (camera module excluded): Approx. 15.6 g
  Air Unit (camera module included): Approx. 32 g
  Antenna: Approx. 2.1 g/pcs
Dimensions Transmission Module: 33.5×33.5×13 mm (L×W×H)
  Camera Module: 25.55×20×23.30 mm (L×W×H)
  Coaxial Cable: 130 mm
  3-in-1 Cable: 100 mm
  Antenna: 110 mm
Video Transmission
Operating Frequency 5.170-5.250 GHz
  5.725-5.850 GHz
  Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.
Transmitter Power (EIRP) 5.1 GHz:
  <23 dBm (CE)
  5.8 GHz:
  <33 dBm (FCC)
  <14 dBm (CE)
  < 30 dBm (SRRC)
Lowest Latency With DJI Goggles 3 and pick racing mode:
  With 1080p/100fps video transmission quality, the latency is as low as 15 ms.
  With DJI Goggles N3 and pick racing mode:
  With 1080p/100fps video transmission quality, the latency is as low as 19 ms.
  With DJI Goggles 2 or Goggles Integra:
  With 1080p/100fps video transmission quality, the video transmission latency is less than 30 ms.
  Latency data represents the minimum latency during the screen refresh process of DJI Goggles. Tested in an outdoor open environment without interference. The video transmission latency data varies with different devices.
Max Video Transmission Range With DJI Goggles 3/DJI Goggles N3:
  15 km (FCC), 8 km (CE), 8 km (SRRC)
  Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range under various standards . The actual maximum communication range during flight is limited by the flight endurance of the aircraft. Always pay attention to RTH reminders in the app during your flight.
Live View Quality 1080P@30/48/50/60/100fps
Communication Bandwidth Max 60 MHz
Antenna 2 antennas, 2T2R
Channels Supports auto mode
  Supports manual mode:
  With DJI Goggles 3 or DJI Goggles N3:
  60 MHz: 1 channel; 40 MHz: 1 channels; 20 MHz: 3 channels; 10 MHz: 3 channel
  With DJI Goggles 2 or Goggles Integra:
  40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
Channels Info FCC/SRRC/CE:
  60MHz/40 MHz:
  Channel 1: 5794.5 MHz
  20 MHz/10 MHz:
  Channel 1: 5768.5 MHz
  Channel 2: 5789.5 MHz
  Channel 3: 5814.5 MHz
Camera
Image Sensor 1/1.3-inch CMOS Sensor
Lens FOV: 155°
  The equivalent focal length: 12 mm
  Aperture: f/2.8
  Focus: 0.6 m to ∞
ISO Range 100-25600 (Auto)
  100-25600 (Manual)
Video Resolution 4K (4:3): 3840×2880@30/48/50/60fps
  4K (16:9): 3840×2160@30/48/50/60/100/120fps
  2.7K (4:3): 2888×2016@30/48/50/60fps
  2.7K (16:9): 2688×1512@30/48/50/60/100/120fps
  1080p (4:3): 1440×1080@30/48/50/60/100/120fps
  1080p (16:9): 1920×1080@30/48/50/60/100/120fps
Video Format MP4
Max Video Bitrate: 130 Mbps
Color Mode Normal Mode
  D-Log M
Camera FOV Standard
  Wide-Angle
  Ultra Wide-Angle
EIS RockSteady 3.0+
  Stabilization function off (supports Gyroflow)
  When RockSteady is enabled, the shooting angle only supports standard.
Hardware
Input Voltage 7.4-26.4 V
Operating Temperature -10° to 40° C
Storage
Built-in Storage 4GB
Supported SD Cards microSD (up to 512 GB)
Recommended microSD Cards Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
  Kingston CANVAS GO! Plus 64GB U3 64GB/A2/V30 microSDXC
  Kingston CANVAS GO! Plus 128GB U3 64GB/A2/V30 microSDXC
  Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC
  Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC
Compatibility
Supported Flight Controller System Betaflight 4.3.0 and higher versions
Supported DJI Goggles and Remote Controllers DJI Goggles 3 + DJI FPV Remote Controller 3
  DJI Goggles N3 + DJI FPV Remote Controller 3
  DJI Goggles 2/ Goggles Integra + DJI FPV Remote Controller 2
  The flight control firmware needs to be configured to support the SBUS protocol in order to use the DJI FPV remote controller.
