DPA VO4099D d:vote 4099 Clip Microphone for Drum
by DPA90-Degree Mounting System for Drums, High SPL Handling, 5.5" Adjustable Gooseneck, MicroDot Connector
Includes XLR Adapter, Detachable Cable
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- DPA Microphones d:vote 4099D Clip Microphone for Drums
- DC4099 Mounting Clip for Drum Rims
- XLR Adapter

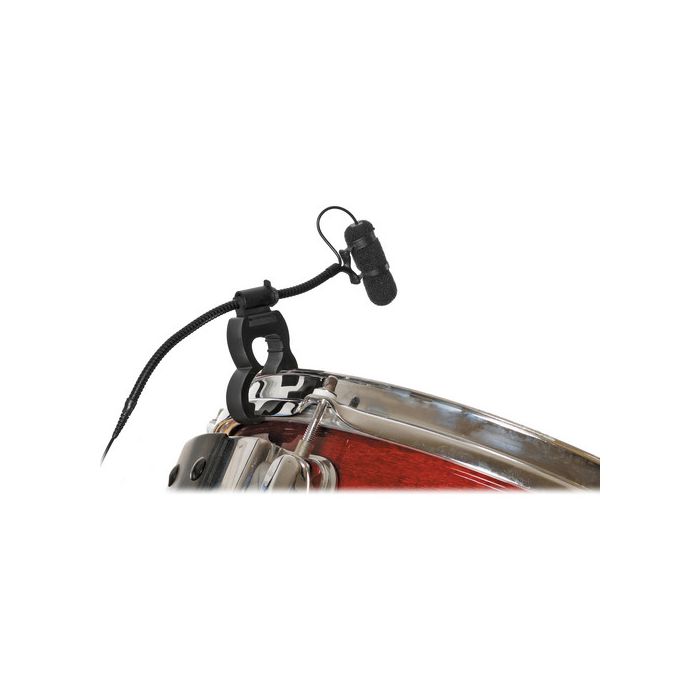

The d:vote 4099D Clip Microphone for Drums from DPA Microphones is designed to be used as a clip mic for drums and other percussion sources. It features DPA's 90-degree system that allows you to remount the clip by 90 degrees to provide a variety of mounting positions. The 5.5" gooseneck provides further positioning options.
The microphone itself is a pre-polarized condenser with a supercardioid polar pattern. It features a maximum SPL of 152dB, allowing it to be used on high-volume sources such as toms, kicks, and percussion. Its cable is detachable for easier mounting, and the microphone terminates in a MicroDot connection. An XLR adapter is included for connecting to wired systems.
Transducer Type | Pre-Polarized Condenser |
Polar Pattern | Supercardioid |
Principle of Operation | Pressure Gradient |
Frequency Range | 20 Hz to 20 kHz +/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz |
Sensitivity | 2 mV/Pa; -54 dB Reference: 1 V/Pa (Nominal, +/- 3dB) |
Equivalent Noise Level | Typ. 28 dB(A) Reference: 20 µPa (Maximum 31 dB(A)) (A-Weighted) |
Signal to Noise Ratio | 66 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL) |
Total Harmonic Distortion (THD) | < 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine |
Dynamic Range | 95 dB |
Maximum SPL | 152 dB (Peak Before Clipping) |
Output Impedance | MicroDot: 30 to 40 Ω XLR: 100 Ω |
Cable Drive Capability | XLR: 984' (300 m) |
Output Balance Principle | Signal balanced with XLR adapter |
CMRR | XLR Adapter: >60 dB at 50 Hz to 15 kHz |
Power Supply | Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter |
Current Consumption | MicroDot: 1.5 mA XLR Adapter: 3.5 mA |
Connector | MicroDot XLR Adapter Included |
Polarity | Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
Operating Temperature | -40° to 113°F (-40° to 45°C) |
Relative Humidity | Up to 90% |
Cable Length | 6' (1.8 m) |
Gooseneck | Length: 5.5" (140 mm) |
Capsule Diameter | 0.2" (5.4 mm) |
Microphone Length | 1.8" (45 mm) |
Packaging Info | |
---|---|
Package Weight | 1.15 lb |
Box Dimensions (LxWxH) | 9.8 x 5.9 x 3.0" |
