Feelworld D71 Rack mount monitor
by FeelWorld- Two 7" 1280 x 800 IPS Displays
- 3G-SDI, HDMI, and Composite BNC I/O
- Up to 1080p60 Signal Input
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- FeelWorld D71 Dual 7" 3 RU Rackmount 3G-SDI/HDMI LCD Monitor
- 12 VDC, 3A Power Adapter
- Tally Kit

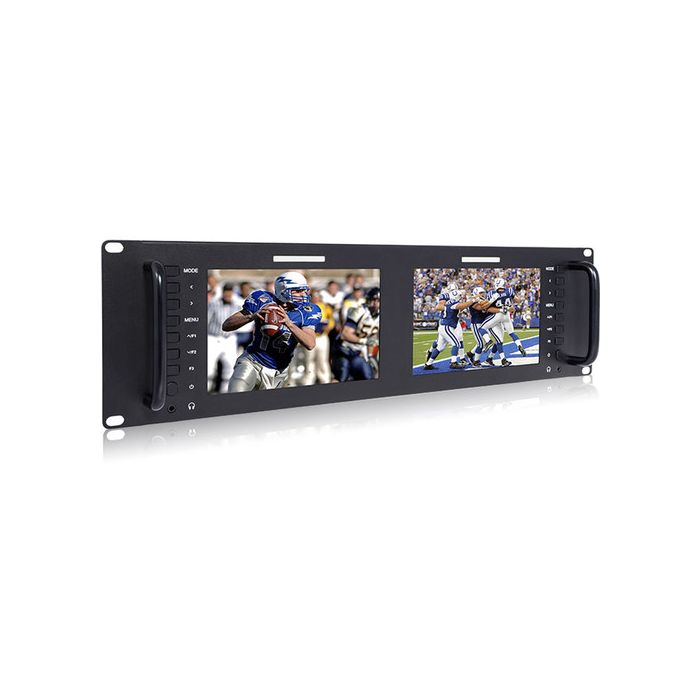

Featuring two 7" displays in an ultra-slim 3 RU design and offering a LAN port for GPIO network control, the D71 Dual 7" 3 RU Rackmount 3G-SDI/HDMI LCD Monitor from FeelWorld is designed to provide efficient broadcast monitoring of up to two 1080p60 signals. The D71 model has 3G-SDI, HDMI, and composite BNC inputs and outputs per display, as well as RCA audio inputs for each panel. A headphone outputs is provided for each panel for monitoring audio. There's a single tally port on the rear and a three-color tally light above each display. The displays are IPS panels with a 1280 x 800 resolution and 178° wide viewing angle, providing for more consistent monitoring.
Over the LAN 100 port, multiple D71 units can be controlled at the same time via a single control software. The D71 comes in a metal housing that allows for optimal heat dissipation and has cast-iron handgrips on the sides for convenient handling when installing into or removing from a rack.
A variety of image analysis functions includes peaking focus assist, check field, pixel-to-pixel, zoom all, and more, and three function buttons per monitor are provided on the front panel that these can be assigned to. For power, a barrel input and 4-pin XLR port are provided on the rear. A 12 VDC power adapter is included for the barrel input while an optional standard XLR power adapter can alternatively be used instead.
Key Features
- Two 7" 1280 x 800 resolution IPS displays in an ultra-slim 3 RU design
- LAN port for GPIO network control of up to multiple units
- 3G-SDI, HDMI, and composite BNC I/O
- Up to 1080p60 signal input
- 178° viewing angle
- 400 cd/m² brightness
- 800:1 contrast ratio
- RCA audio inputs
- Headphone outputs
- Single tally port
- Three-color tally light above each display
- Three user-assignable function buttons per display
- DC barrel / 4-pin XLR power ports (12 VDC power adapter included)
- Metal housing allows for optimal heat dissipation
Image Analysis Tools
- Peaking focus assist (red highlight over parts of the monochrome image)
- Check field (red, green, blue, mono)
- Pixel-to-pixel
- Center marker
- Safe marker (80, 85, 90, 93, 96, 2.35:1)
- Image flip (horizontal, vertical, horizontal/vertical)
- Image freeze
- Zoom all
- U/D and L/R zoom
- Custom color temperature
FeelWorld D71 Dual Display Specs
Display
Panel Type |
IPS-Type LCD |
Display Size |
7.0" / 17.8 cm |
Resolution |
1280 x 800 |
Aspect Ratio |
16:10 |
Viewing Angle |
Horizontal: 178° (89/89) |
Touchscreen |
No |
Maximum Brightness |
400 cd/m2 |
Contrast Ratio |
800:1 |
Dot Pitch |
0.117 x 0.117 mm |
I/O
Video |
2 x BNC (3G-SDI) Input |
Audio |
2 x 2RCA Input |
Built-In Speaker |
None |
Power I/O |
1 x XLR 4-Pin Input |
Other I/O |
1 x Tally (DE-9/DB-9) |
Media/Memory Card Slot |
None |
Format Support
Video Format |
SDI |
Power
DC Input Power |
9 to 24 VDC |
Battery Type |
None |
Power Consumption |
20 W (Maximum) |
Mounting
Rack Form Factor |
3 RU |
Environmental
Operating Temperature |
-4 to 131°F / -20 to 55°C |
Storage Temperature |
-22 to 149°F / -30 to 65°C |
General
Material of Construction |
Aluminum |
Dimensions |
19 x 5.2 x 1.2" / 48.3 x 13.2 x 3.1 cm |
Weight |
4.19 lb / 1.9 kg |
Packaging Info
Package Weight |
5.585 lb |
Box Dimensions (LxWxH) |
21 x 8.2 x 4.6" |
