Feelworld FW568 V2 HDMI monitor
by FeelWorld- 5.5" 1920 x 1152 Display
- Up to 32 Custom 3D LUTs
- 4K HDMI In and Out
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- FeelWorld FW568 V2 5.5" IPS 500 cd/m² On-Camera Monitor
- Micro-HDMI Cable
- Sunshade
- Tilt Arm

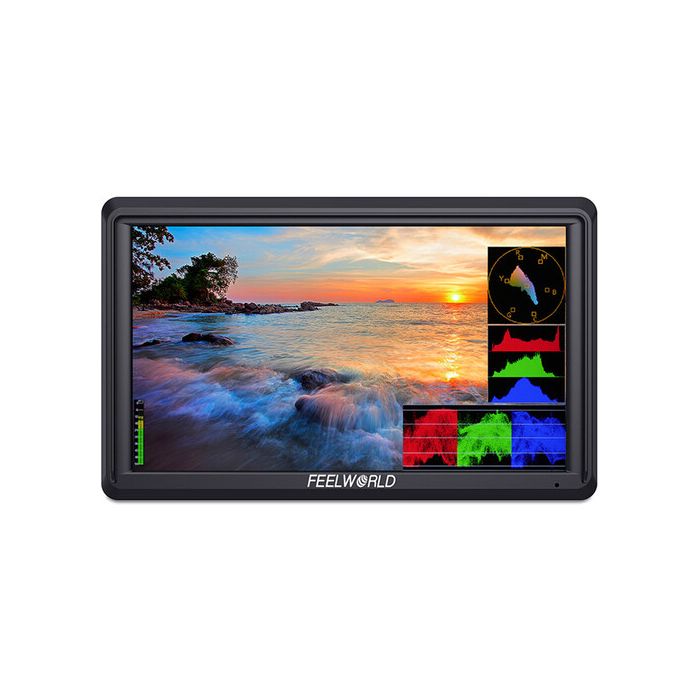

Upgrade your on-camera viewing experience while shooting in the field to an HD monitor with the updated FeelWorld FW568 V2, a compact 5.5" IPS monitor outfitted with 500 cd/m² brightness, and a multitude of video assist functions. Like its predecessor, the FW568 V2 supports 4K HDMI in and out, and it uses Rec. 709 color standard with color calibration for accurate color reproduction and vivid image viewing. It expands the previous model's capabilities by including waveform monitoring and support for up to custom 32 3D LUTs.
Two 1/4"-20 threads on the monitor allow it to be attached to the included tilt arm, which offers a cold shoe mount to integrate a shotgun microphone or LED light into your run-and-gun setup. The monitor boasts a 1000:1 contrast, as well as an L-Series battery plate on the back panel. The operating system of the FW568 V2 includes tools for framing, focus, and exposure such as image flip, zoom, and anamorphic modes. An 8.4 VDC output can distribute additional power to your DSLR or mirrorless camera to extend its runtime in the field.
Features at a Glance
- Full HD 1920 x 1152 resolution
- 400 ppi pixel density prevents the eye from defining individual pixels
- 160° viewing angle ensures clear image as operator shifts position
- Tilt arm with cold shoe mount and 360° of rotation for the monitor
- Included sunshade increases visibility of the screen while outdoors in full sunlight
- 8.4 VDC power out to your DSLR or mirrorless camera
- Load up to 32 custom 3D LUT files using mini-USB input for more intuitive color calibration
Control Customization
- Two custom function buttons at top of the monitor
- Directly set shortcut for left and right keys in the menu to control backlight or volume adjustment
- Automatically saves settings and does not require reset after turning off/on
Video Assist Functions
- Anamorphic mode (1.3x, 2.0x, 2.0x mag, user-defined adjustment 1.2x~2.0x)
- Audio meter monitoring
- Center marker
- Check field (red, green, blue, mono)
- Color temperature adjustment
- False color
- Histogram (RGB1, Y, RGB2)
- Image flip
- Image freeze
- Nine-grid
- Peaking focus assist (color switch capabilities)
- Pixel-to-pixel
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Waveform (RGB, YUV, Y)
- Zebra
- Zoom (4x, 9x, 16x)
Battery Plate Compatibility
- Sony F970
- Canon LP-E6
FeelWorld FW568 Specs
Display
|
Panel Type |
IPS-Type LCD |
|
Display Size |
5.5" / 14.0 cm |
|
Resolution |
1920 x 1152 |
|
Aspect Ratio |
16:9 |
|
Viewing Angle |
Horizontal: 160° |
|
Touchscreen |
No |
|
Maximum Brightness |
500 cd/m2 |
|
Contrast Ratio |
1000:1 |
|
HDR Compatibility |
None |
|
Pixels Per Inch (ppi) |
400 ppi |
|
Image Controls |
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Waveform, Zebra |
I/O
|
Video |
1 x HDMI Type A Input |
|
HDCP Support |
No |
|
Audio |
1 x 1/8" / 3.5 mm Headphone Output |
|
Built-In Speaker |
None |
|
Power I/O |
1 x Barrel (24 VDC) Input |
|
Other I/O |
1 x Mini-USB Input |
|
Media/Memory Card Slot |
None |
|
Wi-Fi |
None |
Format Support
|
Video Format |
HDMI |
Power
|
DC Input Power |
7 to 24 VDC |
|
Built-In Battery |
None |
|
Battery Type |
1 x L-Series |
|
Power Consumption |
9 W |
Mounting
|
Mounting |
2 x 1/4"-20 Female |
Environmental
|
Operating Temperature |
-4 to 131°F / -20 to 55°C |
|
Storage Temperature |
-22 to 149°F / -30 to 65°C |
General
|
Dimensions |
5.6 x 3.4 x 1.1" / 142 x 87.2 x 27.5 mm |
|
Weight |
6.2 oz / 175 g |
Packaging Info
|
Package Weight |
1.21 lb |
|
Box Dimensions (LxWxH) |
7.7 x 4.9 x 3.2" |
