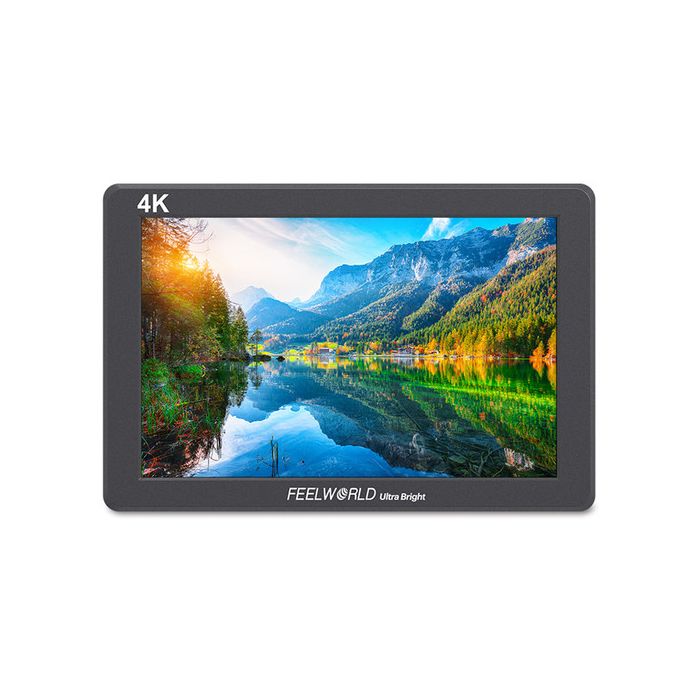

Feelworld P7 HDMI monitor

The FeelWorld 7" 2200 cd/m² Full HD HDMI On-Camera Monitor with 4K Support features a native resolution of 1920 x 1200 with a contrast ratio of 1200:1, and a maximum brightness of 2200 cd/m², making it suitable for use outdoors without a sun hood. This IPS monitor enables you to accurately monitor your camera's output, and is calibrated to the Rec. 709 HD color standard to ensure accurate color reproduction. The large 7" diameter screen and 160°-wide viewing angle allows for multiple members of the crew to watch the footage at the same time without the appearance of contrast or color changes to the image.

The top-mounted control buttons provide maximum screen real estate to view your footage, now that front-panel buttons and knobs are no longer cluttering up your monitor. The monitor supports an assortment of display and diagnostic tools including focus peaking, false color, zebra bars, histogram, image flip, and color temperature adjustment. In addition, the monitor offers multiple aspect ratio options and features an anamorphic mode that supports 1.33:1 and 2.0:1.

Brightness

At 2200 cd/m² maximum brightness, the monitor does not require a sunshade when used in bright exterior settings.

Top-Mounted Menu and Function Buttons

The menu controls are located on top of the monitor, including three programmable buttons for frequently used settings. The monitor will automatically save the parameters you have previously set, even when powering down.

Focus and Exposure Tools

The focus and exposure tools of the  P7 include focus peaking indicators (red, green, and blue) that highlight parts of the image in sharp focus. In addition, false color tools make it easy to properly set exposure. The false color tools work by highlighting specific color ranges of luminance with a solid color overlay.

Connections

The P7 is equipped with a 4K HDMI input and pass-through 4K HDMI output, allowing for connection to 4K cameras. The monitor's 3.5mm stereo jack enables you to plug in headphones to monitor audio. DC input and output ports are also provided, and a dummy battery adapter cable (available separately) can be used to power your DSLR or mirrorless camera.

Flexible Installation

Three standard 1/4"-20 mounting points (left side, bottom, and right side) offer easy attachment to cameras and rigs.

Aluminum Chassis

The aluminum chassis protects the monitor from the rigors of the production day.

Power

The monitor supports interchangeable battery plates and comes with an L-series battery plate. In addition, the monitor features an integrated 12 VDC locking coaxial input, as well as an 8 VDC locking coaxial output that can be used to power your DSLR or mirrorless camera (requires dummy battery, available separately).

Advanced Features

• High-resolution Full HD 1920 x 1200
• High-contrast 1200:1
• Ultra brightness: 2200 cd/m²
•  IPS panel with 160° wide viewing angles
• Ultra-thin design; 25mm thickness
• Histogram
• Peaking focus assist (red, green, blue)
• False colors
• Zebra exposure
• Nine-grid mode (underscan, overscan)
• Zoom (4x, 9x, 16x)
• Anamorphic mode (1.3x, 2.0x, 2.0x mag)
• Pixel-to-pixel
• Center marker
• Safe area (80/85/90/93/96%, 2.35:1)
• Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
• Marker color (red, green, blue, white, black)
• Check field (red, green, blue, mono)
• Image flip (H, V, H/V)
• Image freeze
• Zoom-all
• U/D and L/R zoom
• Color temperature adjustment
