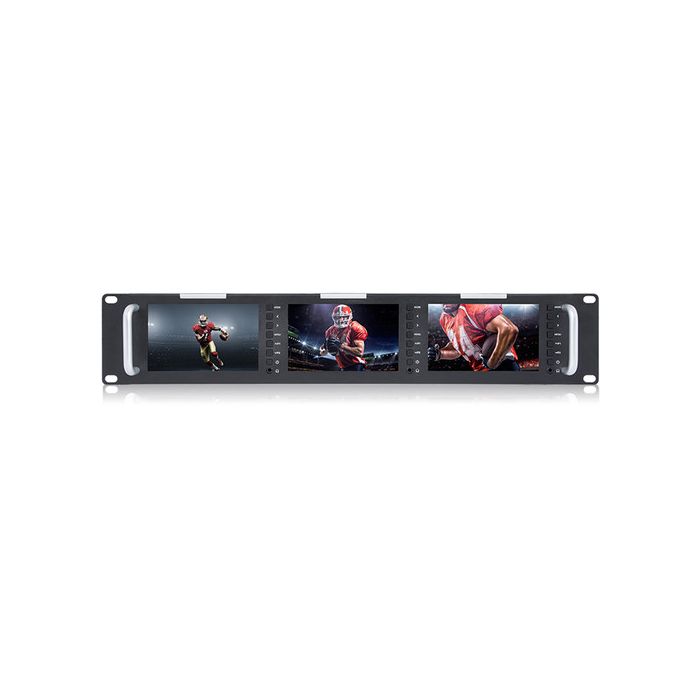

Feelworld T51 Rack mount monitor
by FeelWorld- Three 5" 800 x 480 Resolution Displays
- Slim All-Metal 2 RU Rackmount
- Three 3G-SDI, HDMI, Composite BNC I/O
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- FeelWorld T51 Triple 5" 2 RU 3G-SDI/HDMI Rackmount Monitor
- Power Adapter (3A)
- Tally Kit
The FeelWorld T51 features three 5" 800 x 480 resolution displays in a slim, all-metal 2 RU rackmount. The rear panel has three sets of 3G-SDI, HDMI, and composite BNC inputs and outputs, three sets of RCA audio inputs, and a single tally port. A three-color tally light is provided on top of each display on the front panel, and a headphone output is available per display for audio monitoring. For power, the T51 has both a DC barrel input and 4-pin XLR input, and a power adapter is included for the barrel input. Monitoring features include peaking, pixel-to-pixel, zoom all, and custom color temperature.
Key Features
- Three 5" displays in a slim, all-metal 2 RU rackmount with cast-iron handgrips
- 800 x 480 resolution
- Three 3G-SDI inputs and outputs
- Three HDMI inputs and outputs
- Three composite BNC inputs and outputs
- Three L/R RCA audio inputs
- Tally port
- Three headphone outputs
- Three-color tally light on top of each display
- 500 cd/m² brightness
- 500:1 contrast
- 140/120° viewing angle
- DC barrel and 4-pin XLR power inputs
- DC power adapter included
Monitoring Features
- Peaking focus assist
- Check field (red, green, blue, mono)
- Pixel-to-pixel
- Center marker
- Safe marker (80, 85, 90, 93, 96, 2.35:1)
- Image flip (horizontal, vertical, horizontal/vertical)
- Image freeze
- Zoom all
- U/D and L/R zoom
- Custom color temperature
FeelWorld T51 Triple Display Specs
Display
Panel Type |
TFT LCD |
Display Size |
5.0" / 12.7 cm |
Resolution |
800 x 480 |
Aspect Ratio |
16:9 |
Viewing Angle |
Horizontal: 140° (70/7) |
Touchscreen |
No |
Maximum Brightness |
500 cd/m2 |
Contrast Ratio |
500:1 |
Dot Pitch |
0.045 x 0.135 mm |
I/O
Video |
3 x BNC (HD-SDI/3G-SDI/SD-SDI) Input |
Audio |
3 x 2RCA Input |
Built-In Speaker |
None |
Power I/O |
1 x Barrel (3 A / 12 VDC) Input |
Other I/O |
1 x Tally (DE-15/DB-15) |
Media/Memory Card Slot |
None |
Format Support
Video Format |
SDI |
Power
DC Input Power |
9 to 24 VDC |
Battery Type |
None |
Power Consumption |
25 W (Maximum) |
Mounting
Rack Form Factor |
2 RU |
Environmental
Operating Temperature |
-4 to 131°F / -20 to 55°C |
Storage Temperature |
-22 to 149°F / -30 to 65°C |
General
Dimensions |
19 x 3.5 x 1.3" / 48.3 x 8.8 x 3.4 cm |
Weight |
3.46 lb / 1.57 kg |
Packaging Info
Package Weight |
5.04 lb |
Box Dimensions (LxWxH) |
21.2 x 6.4 x 4.3" |
