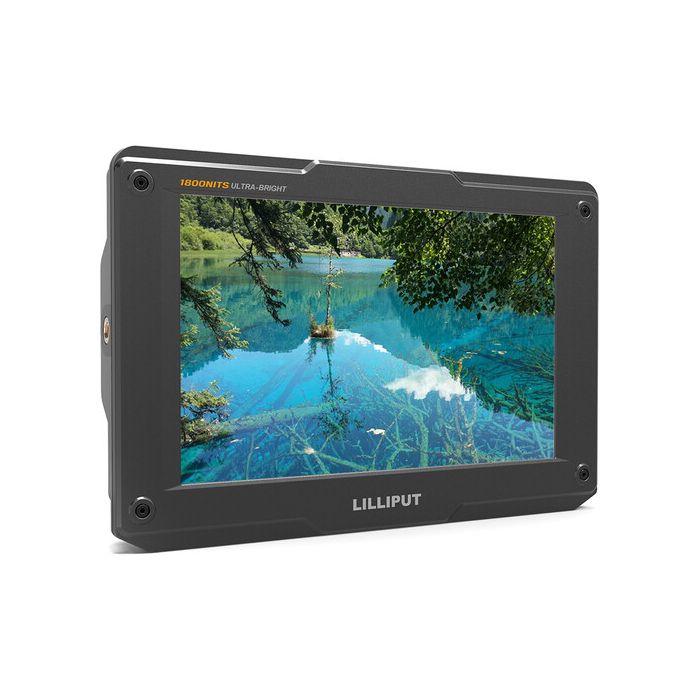

Lilliput H7 4K Monitor with input and loop output

by Lilliput
Dostupnost: Dostupno
SKU
LIL-H7

7" 4K 1800-nit High Brightness Monitor
HDR and HLG
3D LUT

249,00 € 199,20 €

Sadržaj pakiranja

  • Lilliput H7 7" 4K HDMI Ultrabright On-Camera Monitor
  • Tilting Shoe Mount Adapter
  • Tally Cable
  • HDMI Type A to HDMI Type C Cable
  • Micro-HDMI to Mini HDMI Cable
  • Carry Bag

The Lilliput H7 is designed specifically for use outdoors or in high brightness environments. Boasting 4K HDMI 1.4 input and pass through options, and featuring an 1800 nit (cdm²) panel, the Lilliput H7 is designed for situations when a normal monitor screen just won't cut it.
The 4K HDMI 1.4 compatible input supports up to 4096 x 2160p @ 24p and 3840 x 2160p, and can loop out through to another HDMi input monitor / device.
HDR is a technology that improves the range of color and contrast in a digital image. When activated, the monitor will reproduce a much greater dynamic range of luminosity, allowing for lighter and darker details to be displayed more easily. The Lilliput H7 suupports ST2084 - 300, ST2084 - 1000, ST2084 - 10000, and HLG (Hybrid Log Gamma)
3D LUT (Look Up Table) is a system for ensuring accurate colour representation across all connected devices in a work flow. The Lilliput H7 has 3D LUT capabilities, loaded into the device using a USB port on the ower edge of the monitor. The LUT specification is a 17 x 17 x 17 BGR .cube file.
Ultra high brightness displays are power-hungry beasts, so the need for as much power to be available is paramount. The Lilliput H7 has the capability to use two SONY NP-F970 (or compatible) batteries to allow for the maximum operating time.
With 1/4" BSW thread hole at the bottom of the device, the Lilliput H7 is capable of being mounted on any device that has a Hot Shoe mount attachment point. Included in the box is a mount which allows for 360° rotation on the horizontal axis and 180° tilt on the vertical axis.

Display
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Aspect Ratio 16:10
Viewing Angle Horizontal: 160°
Vertical: 160°
Touchscreen No
Maximum Brightness 1800 cd/m2
Contrast Ratio 1200:1
Dot Pitch 0.07870 x 0.07875 mm
Pixels Per Inch (ppi) 323 ppi
Color Gamut 100% Rec. 709
Real-Time LUT Monitoring HDR
Image Controls Check Field, False Color, Focus Peaking, Histogram, Pixel Zoom, Screen Markers, Zebra
Wi-Fi None
I/O
Video 1 x HDMI Type A (HDMI 1.4b) Input
1 x HDMI Type A (HDMI 1.4b) Output
Embedded Audio HDMI: 2-Channel
Audio 1 x 1/8" / 3.5 mm Headphone Input
Built-In Speaker 1 x 1 W
Other I/O 1 x Tally (BNC) Input
1 x USB 2.0 (USB Type-A) Input
Card Slot None
Format Support
Video Format HDMIRGB
DCI 4K: 24
UHD 4K: 30/24
DCI 2K
1080p
Power
Battery Type 2 x L-Series
Power Consumption 16 W (Maximum)
Mounting
Mounting 3 x 1/4"-20 Female
Environmental
Operating Temperature 32 to 140°F / 0 to 60°C
Operating Humidity 0 to 90%
Storage Temperature 14 to 140°F / -10 to 60°C
General
Dimensions 8.9 x 6.1 x 0.9" / 225 x 155 x 23 mm
Weight 18.9 oz / 535 g
