Lilliput HT5S Monitor
by Lilliput1000:1 Contrast Ratio, 16:9 Aspect Ratio
Up to UHD 4K60 HDMI or 1080p60 3G-SDI
HDMI/3G-SDI Inputs and Outputs
Single Sony L-Series-Type Battery Plate
Load 3D LUTs via USB
1 Speaker, 1 Headphone Jack
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Lilliput HT5S Monitor
- HDMI to Micro-HDMI Cable
- Coiled LANC Cable
- Ball Head to Shoe Mount Support
- USB-A Disk Drive

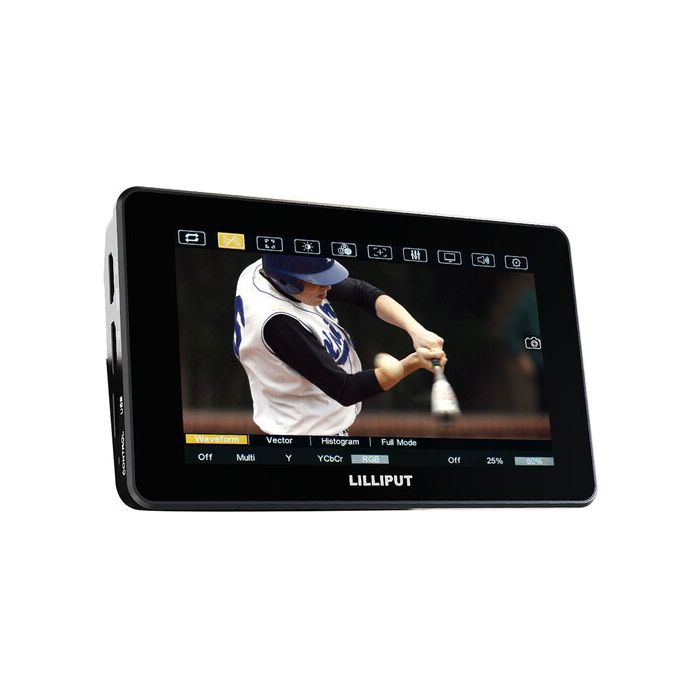

Monitor up to UHD 4K video using the HT5S 5.5" Ultrahigh 2000 cd/m² Brightness Touchscreen On-Camera Monitor from Lilliput. The HT5S features an ultrabright 2000 cd/m² display and a 1000:1 contrast ratio that make it easier to view your frame, even outdoors. This 1920 x 1080 LCD monitor provides both 3G-SDI and HDMI inputs and outputs, 3D LUT loading via the USB port, and support for HDR imaging input with the ability to display a wide dynamic range such as HLG or ST2084-300/1000/10000. It supports up to UHD 4K60 video via HDMI and up to 1080p60 via 3G-SD8. Power the monitor using a single L-series battery or a 12 VAC adapter (available separately).
The HT5S 5.5" monitor also features a speaker, a headphone jack, and multiple image control functions. Mount the monitor on your camera rig by attaching the included shoe mount adapter to the 1/4"-20 bottom thread. An HDMI to micro-HDMI cable, a Sony LANC cable, and a USB-A disk drive are also included in the box.
Ultrabright for Outdoor Viewing
This ultrabright 5.5" monitor features a 2000 cd/m² display with a 1000:1 contrast ratio.
Bright enough for outdoor viewing and provides an auto-dimming function.
Touchscreen Control
The touchscreen panel responds quickly to commands, letting you easily adjust camera, display, and setting functions.
Sony LANC Control
Use the included LANC cable to control FIZ (focus, iris, zoom) features on select Sony cameras.
HDR and 3D LUT Support
HDR support creates highly detailed light and dark shades for highly nuanced imaging.
Integrated 3D LUT support includes 17 default logs and six user-created logs.
Image Display Functions
Offers advanced functions that enable you to clearly see the image details you prefer.
Includes waveform, histogram, pixel zoom, level meter, peaking, false color, and H/V delay.
Includes exposure, check field, image flip, pixel-to-pixel, markers, aspect ratio, and freeze.
HDMI and 3G-SDI Input/Output
The HDMI ports support up to UHD 4K60, and the 3G-SDI port supports up to 1080p60 input and output.
L-Series Battery
Can be powered using one Sony L-series/F-970 battery or via a 12V power supply, both available separately.
Panel Type | LCD |
Display Size | 5.5" / 14.0 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 160° |
Vertical: 160° | |
Touchscreen | Yes |
Maximum Brightness | 2000 cd/m2 |
Contrast Ratio | 1000:01:00 |
HDR Compatibility | Hybrid Log Gamma |
Pixels Per Inch (ppi) | 400 ppi |
Color Gamut | 100% Rec. 709 |
Image Controls | Anamorphic De-Squeeze, Check Field, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel Zoom |
Inputs / Outputs | |
Video I/O | 1 x HDMI 2.0 Input |
1 x BNC (3G-SDI) Input | |
1 x HDMI 2.0 Loop Output | |
1 x BNC (3G-SDI) Loop Output | |
Embedded Audio | HDMI: 8-Channel |
SDI: 2-Channel | |
Audio I/O | 1 x 1/8" / 3.5 mm Headphone/Monitor Output |
Built-In Speaker | 1 |
Power I/O | 1 x Barrel (24 VDC) Input |
Other I/O | 1 x USB-A (Firmware), (LUT Upload) |
Media/Memory Card Slot | None |
Wi-Fi | None |
Bluetooth | None |
Mobile App Compatible | No |
Format Support | |
Video Format | HDMI |
DCI 4K: 60/50/30/25/24 | |
1080p: 60/50/30/25/24 | |
1080i: 60/50 | |
720p: 60/50 | |
SDI | |
1080p: 60/50/30/25/24 | |
1080PsF: 30/25/24 | |
1080i: 60/50 | |
720p: 60/50 | |
Gamma Curve | ARRI Log C, Canon Log, JVC J-Log, Nikon N-Log, Sony S-Log 2, Sony S-Log 3, V-Log |
Power | |
DC Input Power | 7 to 24 VDC |
Battery Type | 1 x L-Series |
Power Consumption | 14 W (Maximum) |
Environmental | |
Certifications | FCC, CE, UKCA |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General | |
Dimensions | 6.1 x 3.7 x 1" / 154.8 x 93.8 x 26.5 mm |
Weight | 10.9 oz / 310 g |
