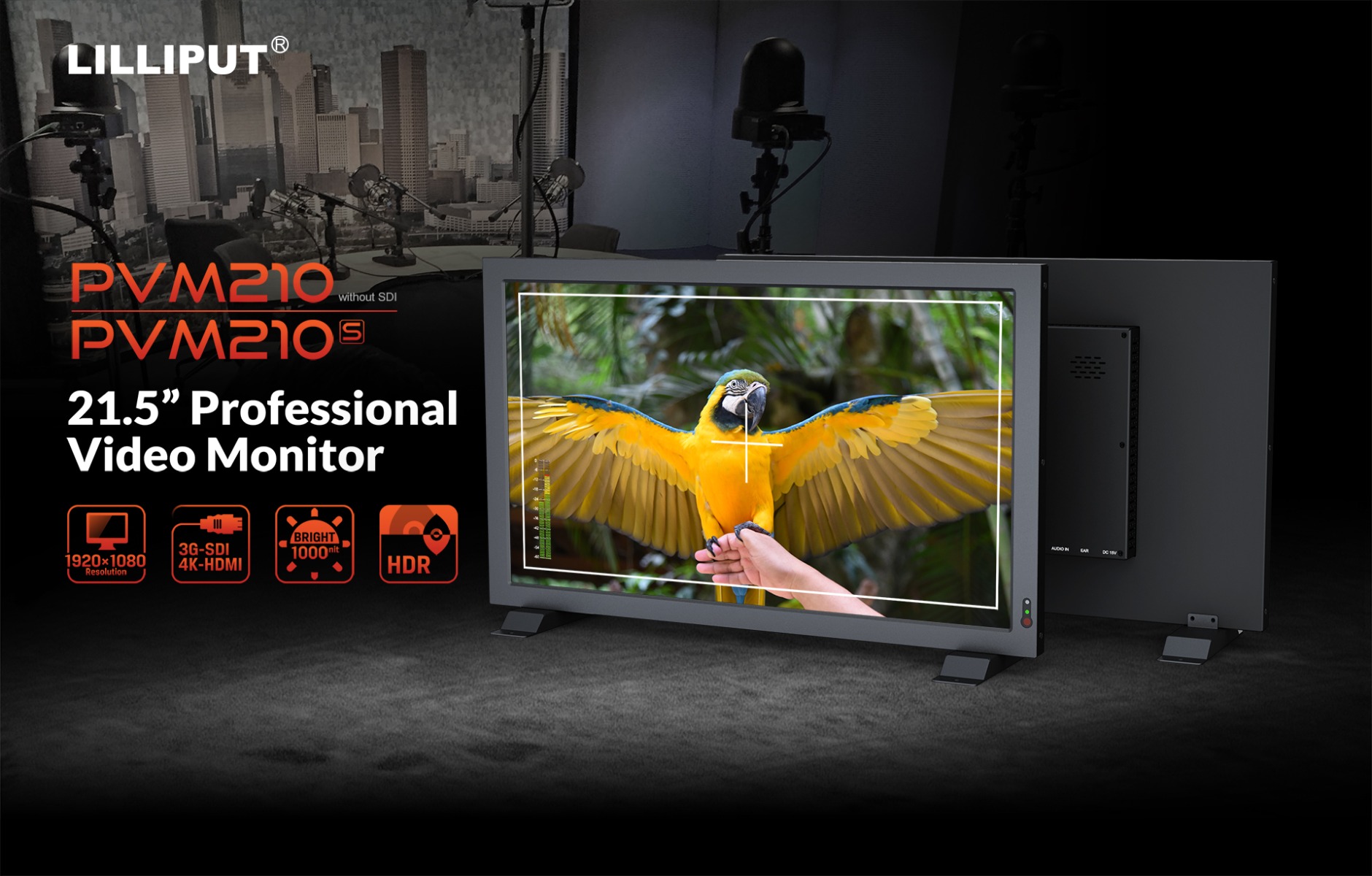

Lilliput PVM210S 21.5" 4K HDMI / 3G-SDI HDR Professional Video Monitor

by Lilliput
Dostupnost: Dostupno
SKU
LIL-PVM210S

Professional  21.5'' 4K HDMI Professional Video monitor

748,75 € 599,00 €

Sadržaj pakiranja

  • Lilliput PVM210S 21.5" 4K HDMI / 3G-SDI HDR Professional Video Monitor
  • 15V 4A DC Power Adapter
  • HDMI A to A Cable
  • Base Stand
  • VGA Cable
  • Audio & Video Input Cable

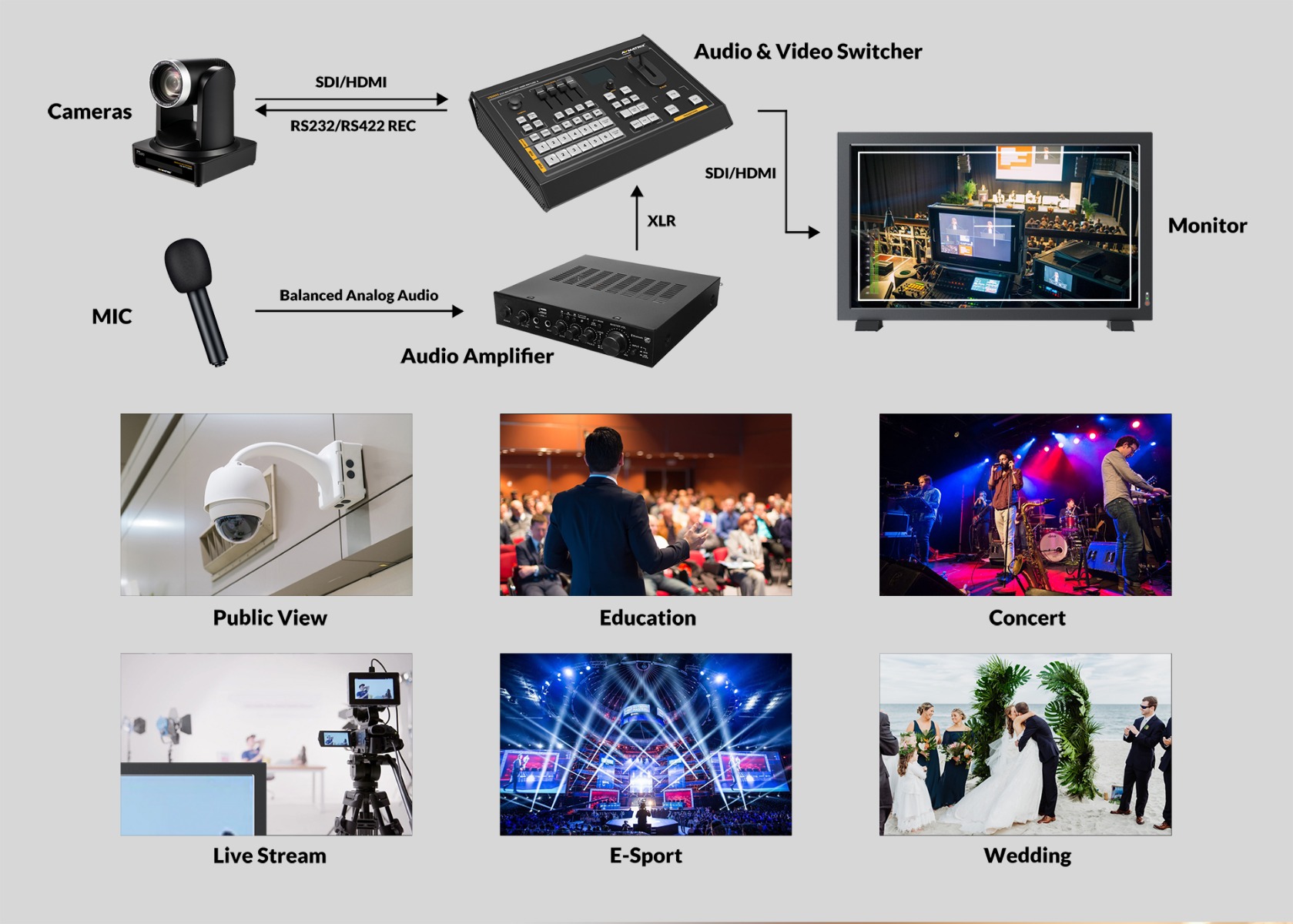

High brightness Monitor with FHD Resolution, 101% Rec.709 color space. Application for live events, conference presentation, public view monitoring, etc.

Layout and Composition

The image output from the camera to TV live is often slashed. This monitor comes with Center Markers and Safety Markers, allowing to adjust the best angle of cameras in real time to show the most important images in center of shot.

Audio Level Monitoring

With Audio Level Meter turned on, it is used to monitor current audio output and avoid being indifferent after an audio interruption as well as keep the sound within a reasonable DB range.

1000 nit High-Bright

Featuring an amazing 1000 nit High Bright LCD screen, with the sunshine readable screen which cover 101% Rec.709 color space, therefore the gear suitable for any innovative outdoor framing.

HDR

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality.


Model PVM210S PVM210
DISPLAY Panel 21.5 ” LCD 21.5 ” LCD
Physical Resolution 1920*1080 1920*1080
Aspect Ratio 16:09 16:09
Brightness 1000 cd/m² 1000 cd/m²
Contrast 1500:1 1500:1
Viewing Angle 170°/170°(H/V) 170°/170°(H/V)
Color space 101% Rec.709 101% Rec.709
HDR Supported HLG;ST2084 300/1000/10000 HLG;ST2084 300/1000/10000
INPUT SDI 1 x 3G SDI -
HDMI 1 x HDMI 1.4b 1 x HDMI 1.4b
VGA 1 1
AV 1 1
OUTPUT SDI 1 x 3G-SDI -
SUPPORTED FORMATS SDI 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… -
HDMI 2160p 24/25/30, 1080p 24/25/30/50 /60, 1080i 50/60, 720p 50/60… 2160p 24/25/30, 1080p 24/25/30/50 /60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT Speaker 2 2
SDI 16ch 48kHz 24-bit 16ch 48kHz 24-bit
HDMI 8ch 24-bit 8ch 24-bit
Ear Jack 3.5mm-2ch 48kHz 24-bit 3.5mm-2ch 48kHz 24-bit
POWER Input Voltage DC12-24V DC12-24V
Power Consuption ≤36W (15V) ≤36W (15V)
ENVIRONMENT Operating Temperature 0℃~50℃ 0℃~50℃
Storage Temperature -20℃~60℃ -20℃~60℃
DIMENSION Dimension(LWD)  524.8*313.3*19.8mm 524.8*313.3*19.8mm
Weight 4.8kg 4.8kg
