Lilliput PVM220S 21.5" Live Stream Quad Split Multiview Monitor

by Lilliput
Dostupnost: Isporuka 7-10 dana
SKU
LIL-PVM220S

The 21.5 inch live stream multiview monitor for Android mobile phone, DSLR camera and camcorder.

798,75 € 639,00 €

Sadržaj pakiranja

  • Lilliput PVM220S 21.5"
  • 15V DC Power Adapter
  • Base Stand
  • USB Type-C Cable
  • User Manual


21.5” Live Stream Quad Split Multiview Monitor

Multiview monitor for Android mobile phone, DSLR camera and camcorder.
Application for live streaming & multi camera.

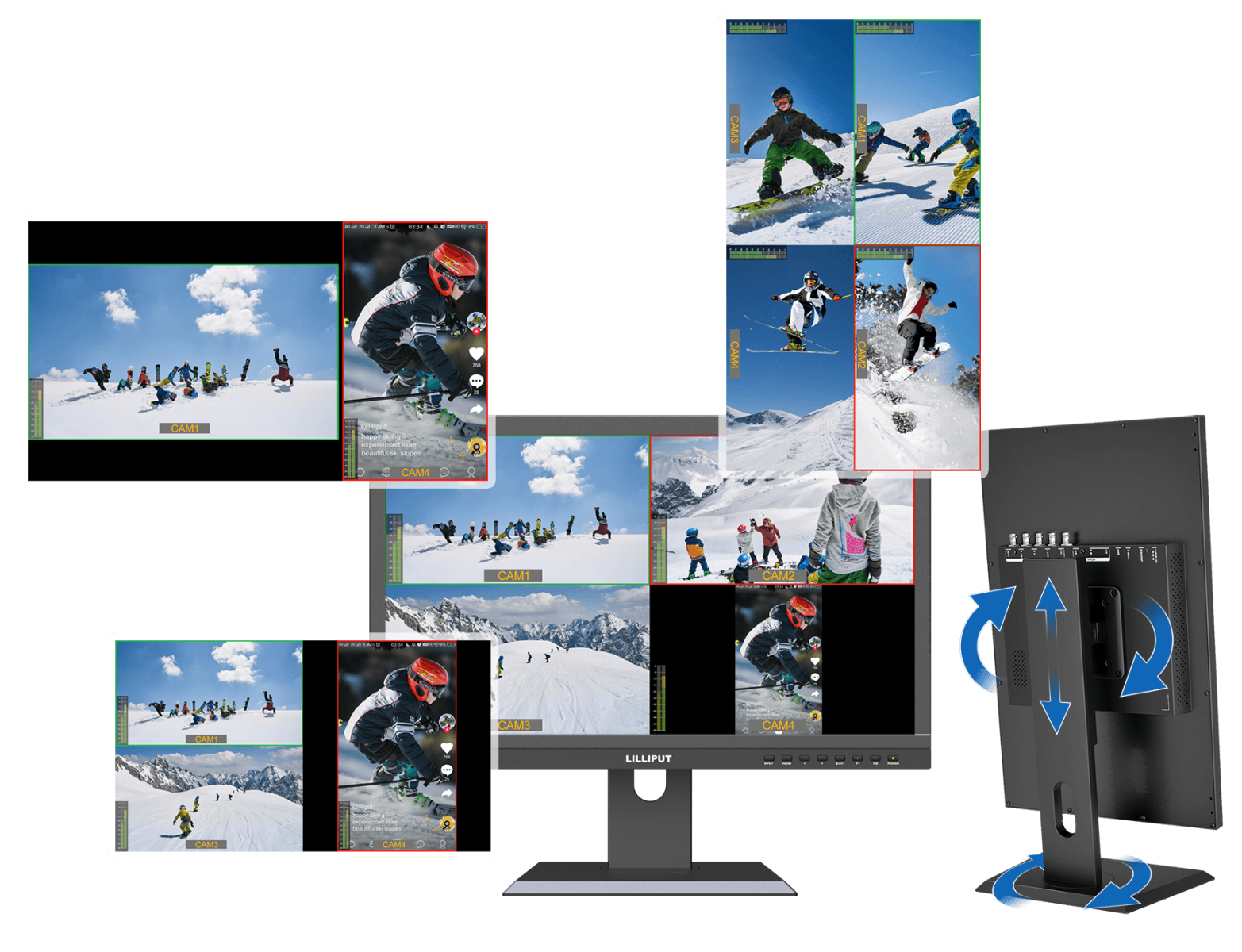

Multi Camera,Multiview Switch

Monitor can be switched live up to 4 1080P high quality video signal inputs, which make it easy to create professional multi camera events for live streaming. At a time when live stream in mobile phone is popular, monitor innovatively built in phone mode so as to directly display a vertical video in multi camera. All-in-one capability greatly reduces the cost of productions.

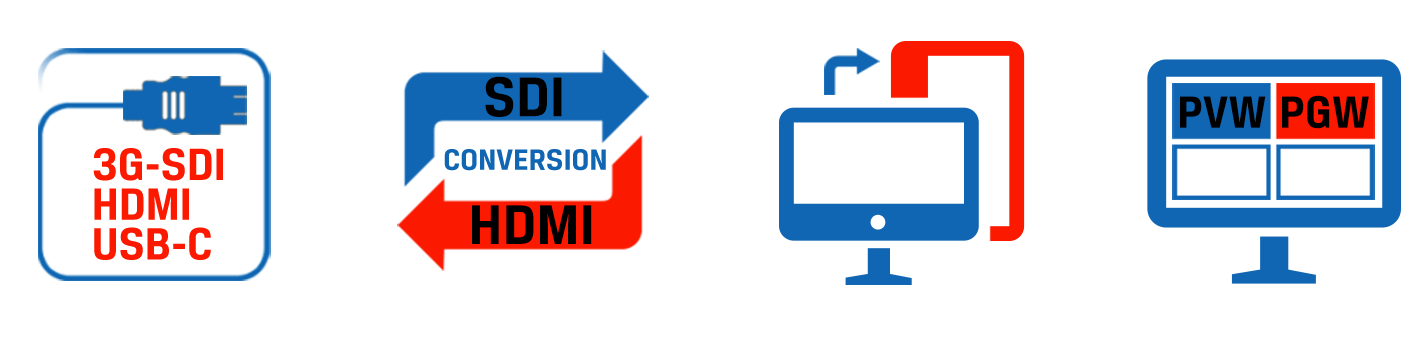

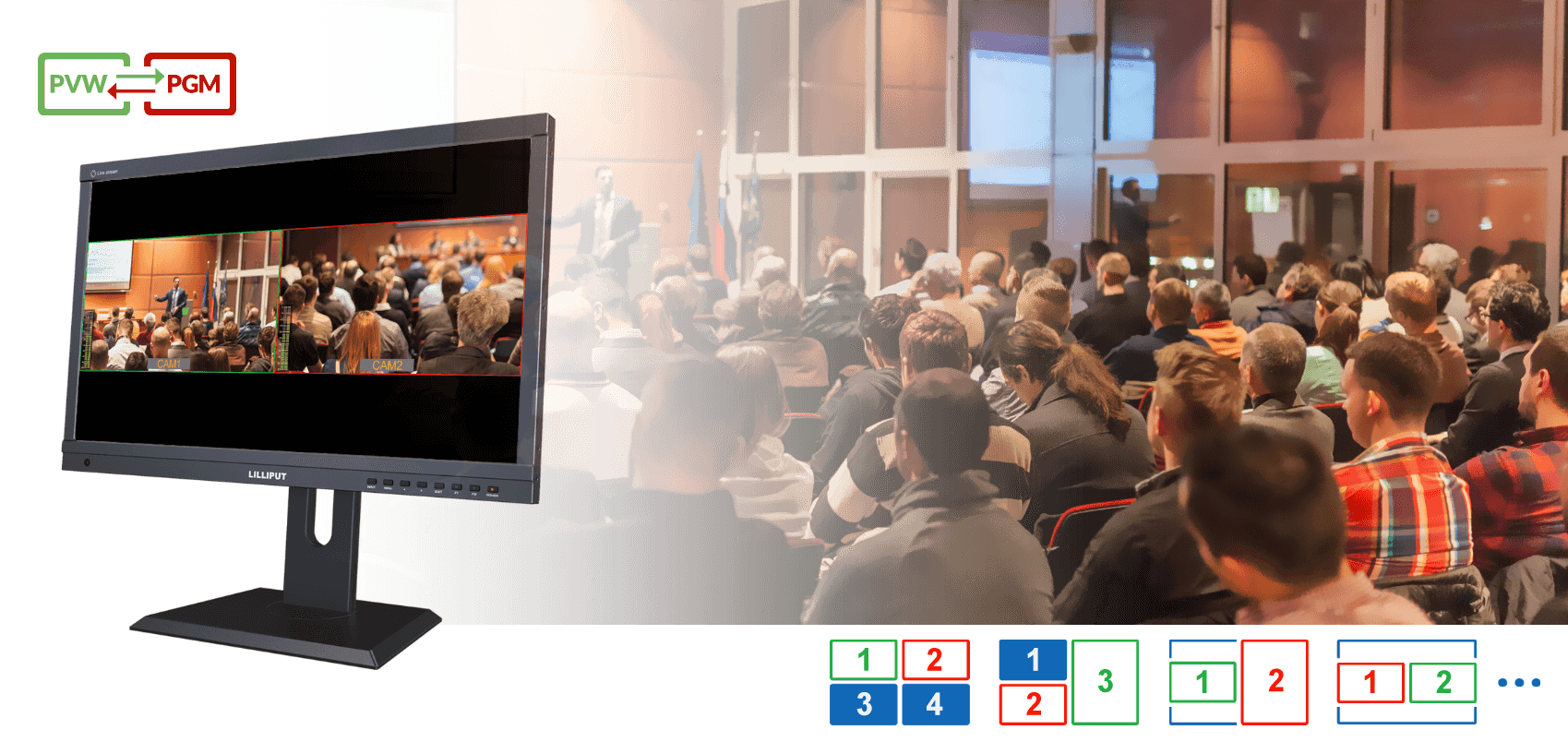

PVW / PGM Video
SDI, HDMI Output Simultaneously
PGM ports for switching camera video from SDI, HDMI and USB Type-C signals

Multi camera video sources can be set up as Preview source and
finished Program source for quick switching source of live streaming
to video capture via shortcuts, and finally to Youtube, SKype, Zoom
and any more social media platforms.

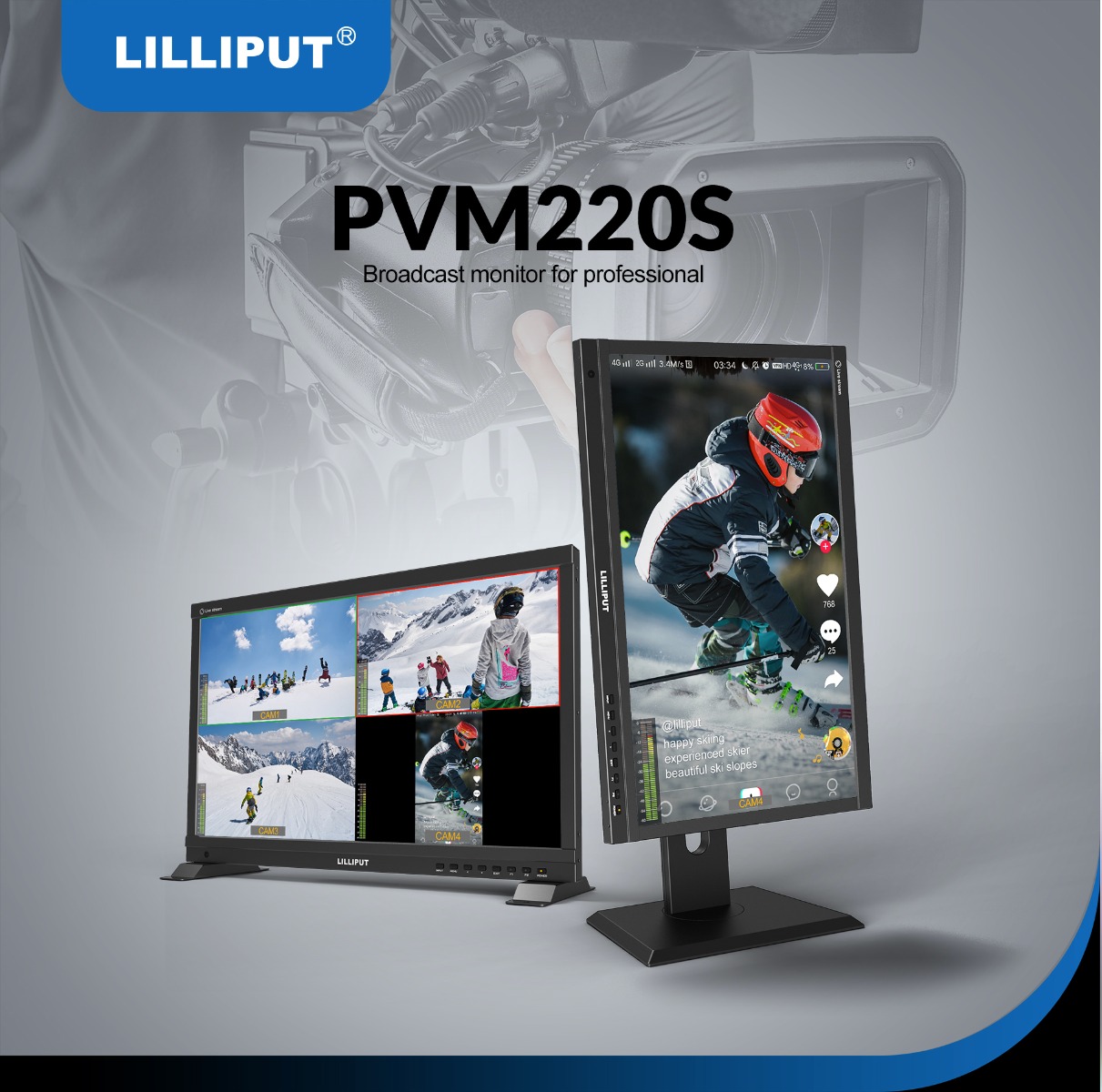

USB Type-C Input,
Vertical Full Screen For Phone
Unique phone mode, adapts to vertical image output from phone camera

Unlike the regular video camera, some phone's video sources are
displayed as vertical images. Multiview mode is innovatively blend
of horizontal and vertical images layout, making live production
more efficient.

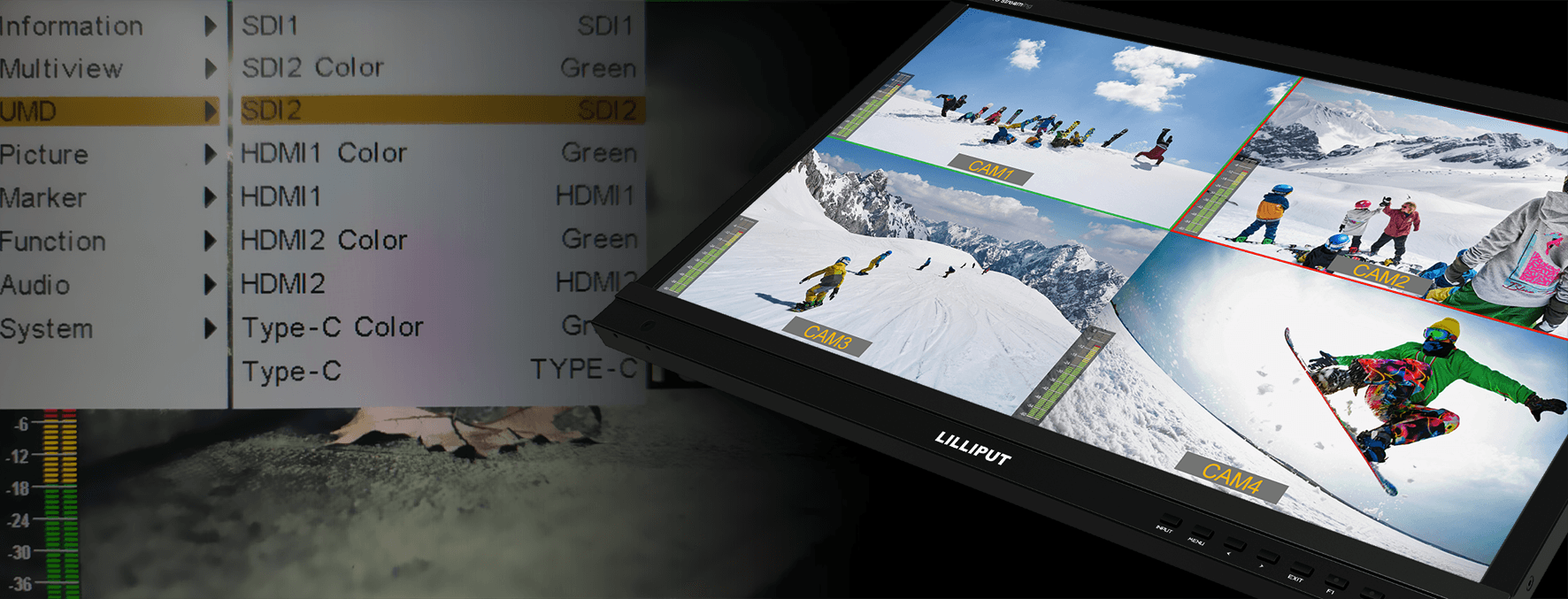

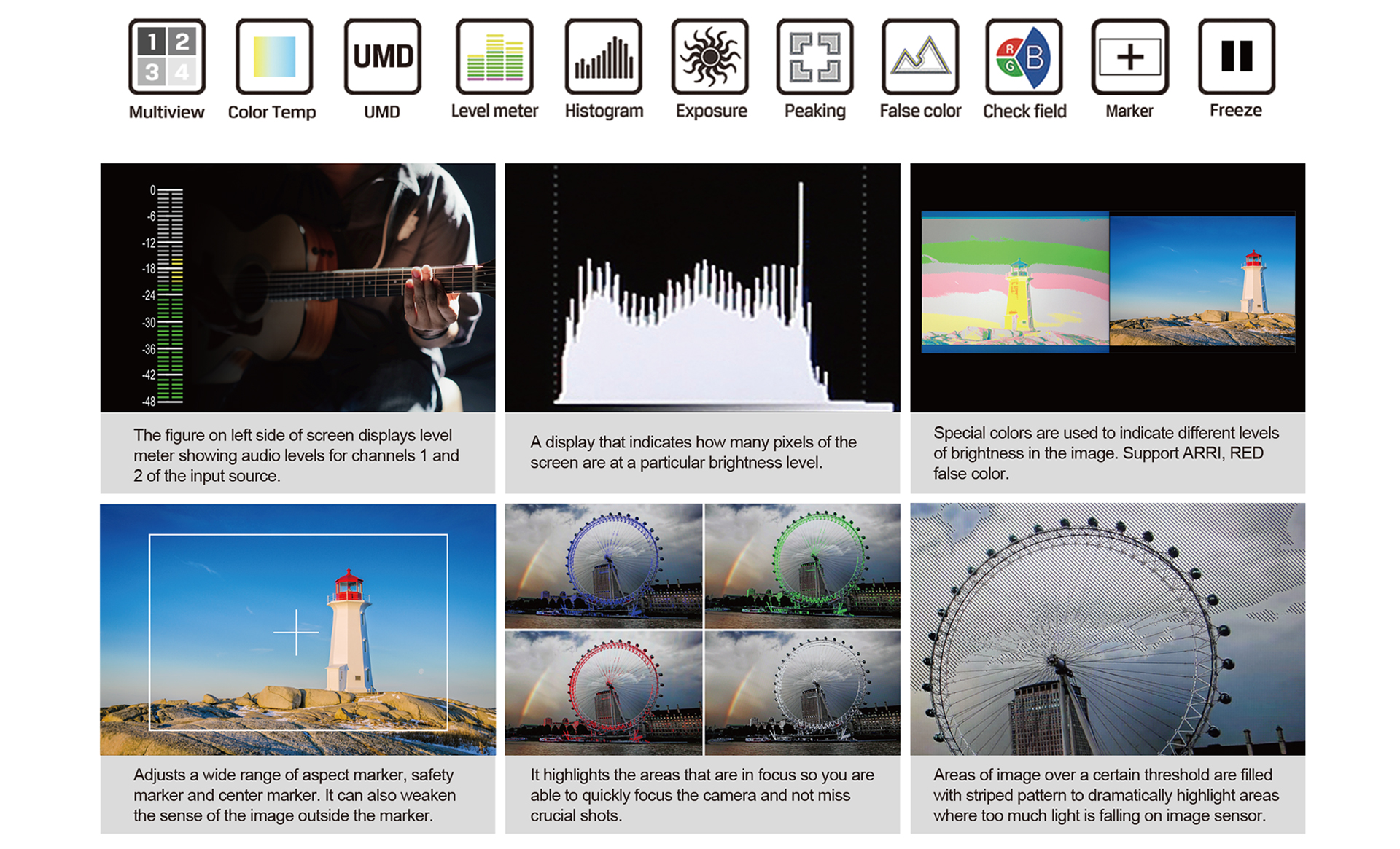

Camera Auxiliary Functions

Plenty of auxiliary functions for live streaming and multi camera productions,
that assist user grasp the scene details in front of camera more thoroughly, such as light, color, layout and so on.

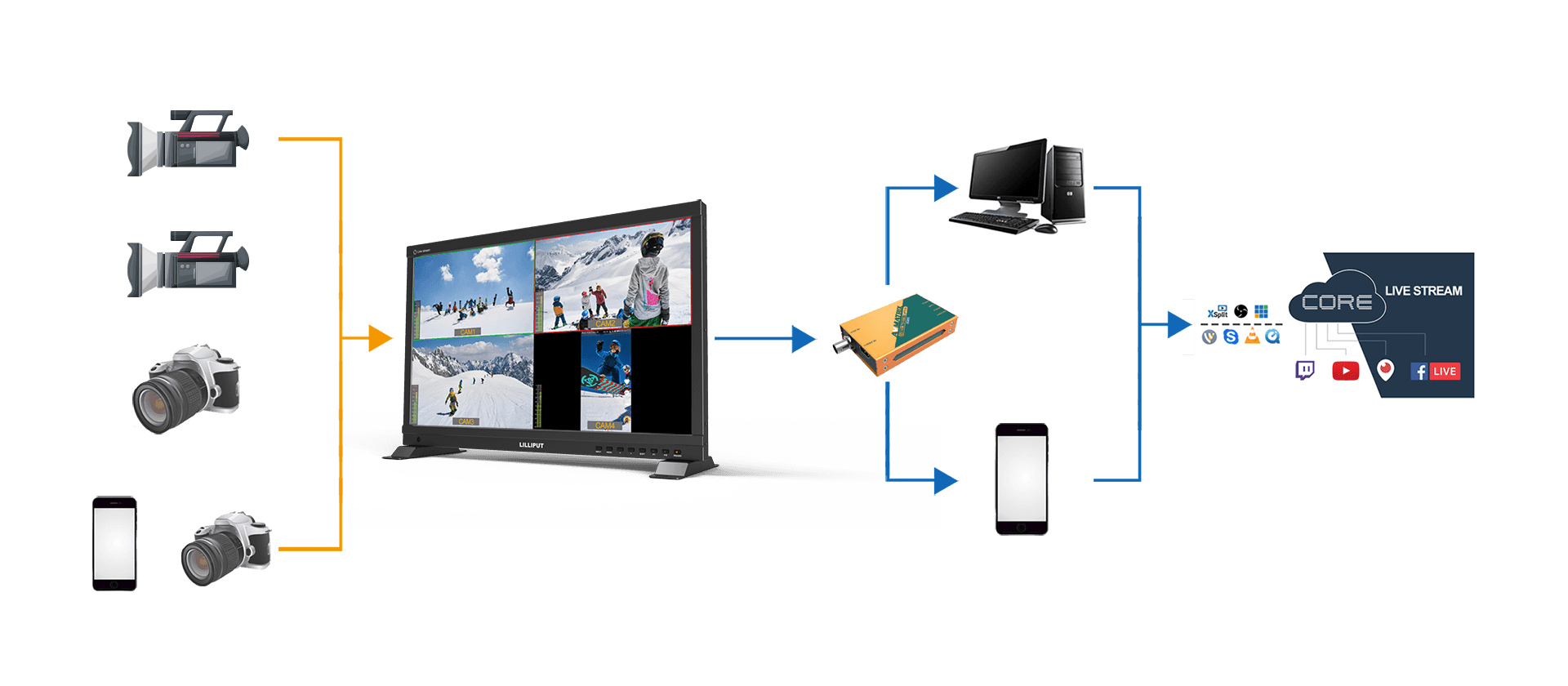

Workflows

Supports up to 4 live video signals, that can use HDMI or SDI outputs for program video. All the live events
can also be cut between PVW and PGM, incredibly doing the work as a video switcher.

Create Professional Programs

Show the world your legendary story through live streaming. Whatever the applications, there will always
be a necessary for an innovative multi camera monitor to help with your video production.


DISPLAY
Panel 21.5"
Physical Resolution  1920×1080
Aspect Ratio  16:9
Brightness  500 nit
Contrast  1500:01:00
Viewing Angle 170°/170° (H/V) 170°/170° (H/V)
VIDEO INPUT
SDI × 2 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more signals...
HDMI × 2  1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more signals...
USB Type-C × 1  1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more signals...
VIDEO OUTPUT
SDI × 2  1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more signals...
PGM HDMI/SDI × 1  1080p 60/50/30/25/24
AUDIO IN/OUT
SDI 2ch 48kHz 24-bit
HDMI  2ch 24-bit
Ear Jack  3.5mm
Built-in Speakers  1
POWER
Input Voltage  DC 12-24V
Power Consumption  ≤33W (15V)
ENVIRONMENT
Operating Temperature  -20°C~60°C
Storage Temperature  -30°C~70°C

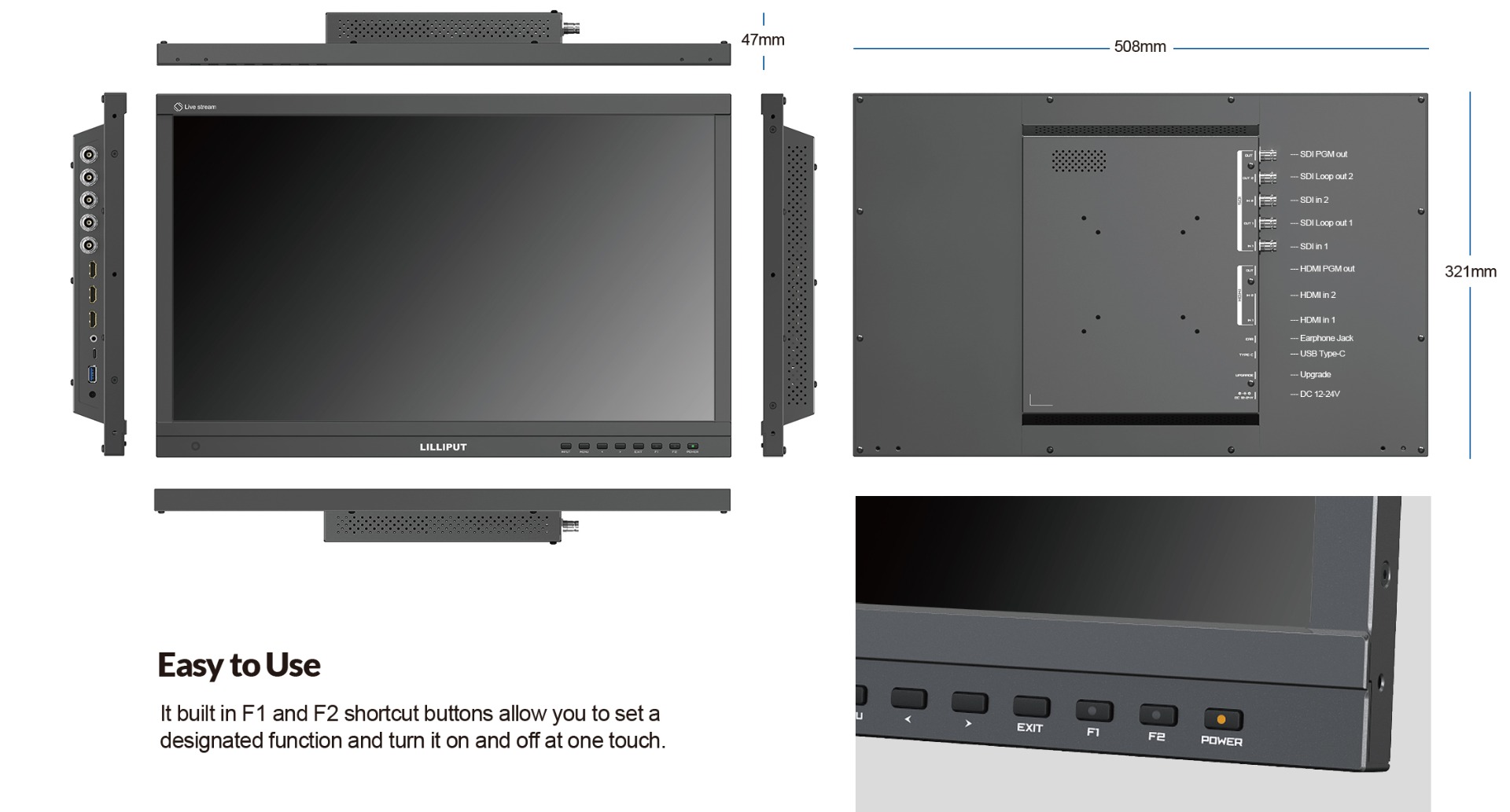

OTHERS
Dimension (LWD)  508mm×321mm×47mm
Weight  5.39kg
