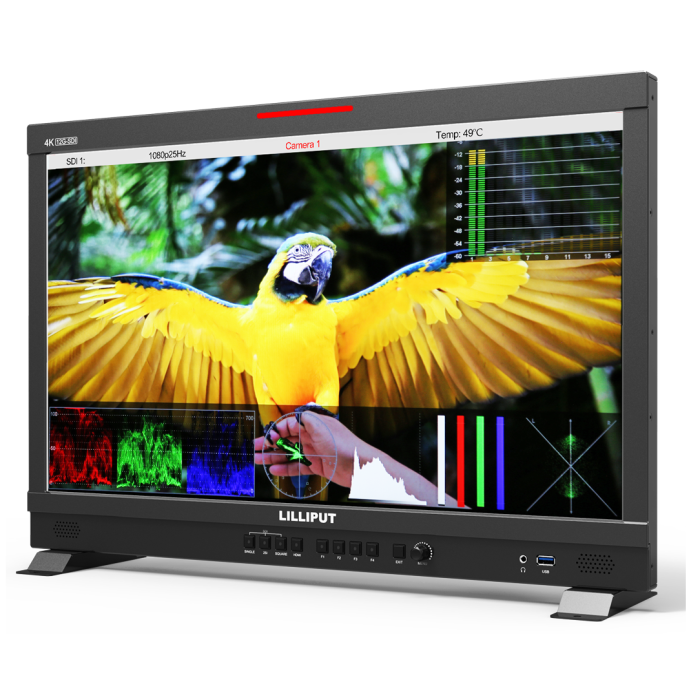

Lilliput Q23 23.8" 12G-SDI 4K HDR Monitor with hardcase

by Lilliput
Raspoloživost: Isporuka 7-10 dana
SKU
LIL-Q23

Lilliput Q23 is a professional production studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications.

2.047,25€/15.425,00 kn 1.637,80€/12.340,00 kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • Lilliput Q24 23.6" 12G-SDI 4K HDR Monitor
  • Power Adapter
  • VESA Mount Plate
  • Base Bracket
  • USB Flash Disk
  • Hard case

● UHD & 4K Panel with 3840x2160 resolution
● Accurate Color Calibration
●Multiple 4K Interfaces
  12G-SDIx2; 3G-SDIx2 (Support Single|Dual|Quad Link)
  HDMI 2.0 (4K 60p)
  12G SFP(Optional)
●Gamma(from 1.8 to 2.8)
●HDR Capability
  ST2084 300|ST2084 1000|ST2084 10000|HLG
●Built-in 3D-LUT (17 default logs and 6 user logs)
●3D-LUT Load
●Waveform | Vector scope | Histagram
●Peaking | False Color | Zebra |Exposure
●Audio Vector(Lissajous) | Level Meter(SDI:16ch;HDMI:8ch)
●LAN | RS422 for Remote Control
●Time Code | UMD | Zoom | User markers | Check field | Aspect Ratio
●Base Mount | Gimbal Bracket | Carrying Case | Rack Mount

DISPLAY Panel 23.8″
Physical Resolution 3840*2160
Aspect Ratio 16:9
Brightness 300 cd/m²
Contrast 1000:1
Viewing Angle 178°/178°(H/V)
HDR ST2084 300/1000/10000/HLG
Supported Log Formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
Look up Table(LUT)support 3D LUT (.cube format)
Technology Calibration to Rec.709 with optional calibration unit
VIDEO INPUT SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
SFP 1×12G SFP+(Fiber module for optional)
HDMI 1×HDMI 2.0
VIDEO LOOP OUTPUT SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
HDMI 1×HDMI 2.0
SUPPORTED FORMATS SDI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT
(48kHz PCM AUDIO)
SDI 16ch 48kHz 24-bit
HDMI 8ch 24-bit
Ear Jack 3.5mm
Built-in Speakers 2
REMOTE CONTROL RS422 In/out
GPI 1
LAN 1
POWER Input Voltage DC 12-24V
Power Consumption ≤65W (15V)
Compatible Batteries V-Lock or Anton Bauer Mount
Input Voltage(battery) 14.8V nominal
ENVIRONMENT Operating Temperature 0℃~40℃
Storage Temperature -20℃~60℃
OTHER Dimension(LWD) 567mm × 376.4mm × 45.7mm
Weight 7.4kg
