Neumann MCM 114 SET DRUMS

by Neumann
Dostupnost: Isporuka 14-20 dana
SKU
SEN-008710

Wired or Wireless Miniature Close Miking
For a Snare, Tom, Percussion Instrument
1 x KK 14 Capsule Head
MCM 100 Output Stage with XLR
SH 150 Flexible Gooseneck
Clip for Drum and Percussion Instruments
3.5mm Cable for Wireless Transmitter
Cardioid, Electret Condenser Mic
153 dB Max SPL
Foam Windscreen

590,00 € 472,00 €

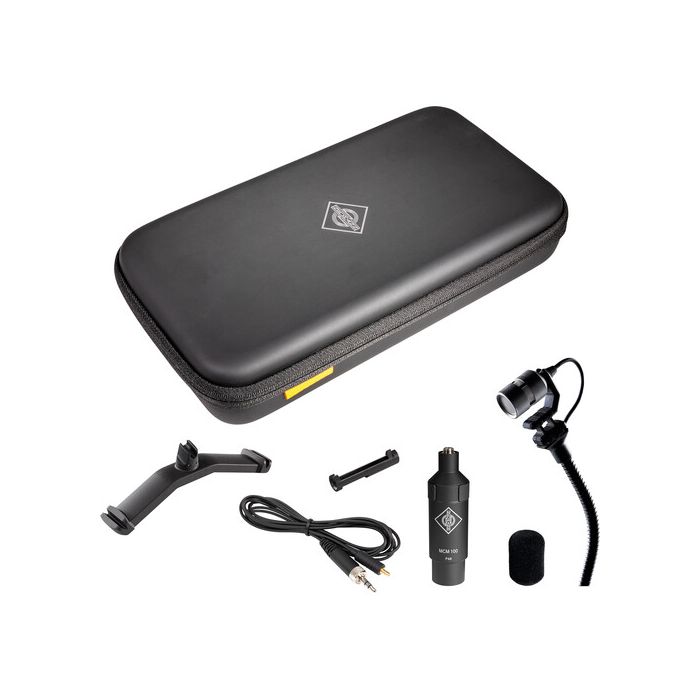

Sadržaj pakiranja

  • Neumann MCM 114 SET DRUMS Cardioid Miniature Clip-On Microphone System
  • Neumann KK 14 Cardioid Capsule for MCM Microphone System
  • Neumann MCM 100 XLR Output Stage Module for MCM Microphone System
  • Neumann SH 150 Flexible Gooseneck for MCM Microphone System (Black)
  • Neumann AC 31 3.5mm TRS Cable for MCM System with Wireless Transmitter or Output Stage Module (5.9')
  • KC1 Cable Braces for Gooseneck
  • Neumann MC 7 MCM Rim Clip for Snare, Tom, and Percussion Instrument
  • Neumann WS 110 Foam Windscreen for MCM Microphone System
  • Soft Case

Aimed at discerning musicians and engineers, concert venues, equipment rental houses, and event-production companies, the Neumann MCM 114 SET DRUMS Cardioid Miniature Clip Mic (MCM) System is a pro-grade instrument microphone configured for close miking a snare, tom, stand tom, timpani, or percussion instrument. Elevating electret technology to Neumann standards, it delivers a staggering 153 dB maximum SPL to capture the details of both loud and very soft instruments without adding distortion or self-noise. The mic securely clips onto your instrument and works for wired and wireless applications with connectivity that supports traditional XLR mic preamps for recording in the studio and wireless transmitters for performing live on stage.

The MCM 114 SET DRUMS system includes a KK 14 cardioid capsule head, flexible 6" gooseneck, and MC 7 clip for mounting the gooseneck on the instrument. There is also an AC 31 cable with 3.5mm locking connectors for connecting the capsule to either the included MCM 100 48V phantom-powered XLR output-stage module or to the locking mini-jack input found on many Sennheiser wireless transmitters. The system's modular construction is designed to ensure a long service life that lasts for years. Manually assembled in Germany to align with Neumann's high standards, the MCM delivers first-rate tonal consistency plus that Neumann aesthetics and handling.

KK 14 Capsule with Exceptional SPL Handling & Ultrawide Dynamic Range

The MCM system is based around the KK 14 miniature capsule head, a 12mm diameter (small-diaphragm) electret-condenser element that delivers a truly natural, neutral, and reliable sound—even in challenging technical or acoustic situations.
The capsule features a cardioid polar pattern that helps minimize the pickup of bleed from other instruments or stage noise, while allowing greater gain before feedback. Capable of handling an extremely high 153 dB maximum SPL with an ultrawide 130 dB dynamic range, the KK 14 is ideal for close-miking virtually any instrument from bombastic drums to delicate strings.

Reliably and Securely Position the Mic on Your Double Bass

The 6" MCM's gooseneck securely hold the detachable KK 14 capsule using a connector that allows for rotation without twisting the cable. Its flexible design enables quick and accurate positioning of the mic for optimal sound capture. The built-in elastic suspension bracket is made of sophisticated plastic for excellent absorption of structure-born noise.
The MCM 114 SET BASS comes with an MC 3 clip to reliably mount the MCM's gooseneck on the strings of a double bass below the bridge. The clip is easy to use and designed to prevent damage to sensitive surfaces on the instrument. The MC 4 clip is also available separately for mounting the gooseneck on the rib/body of your double bass.

Flexible Connectivity for Wired and Wireless Applications

Because it uses electret-condenser technology, the MCM can run on either +48V phantom power from a traditional mic preamp or plug-in power from a compatible wireless transmitter.
With its locking 3.5mm termination, the 6' AC 31 cable can be used to connect the KK 14 to the MCM 100 output stage module for plugging the mic into a mixing board via XLR. The AC 31 cable can also be used to connect the capsule to a wireless transmitter with Sennheiser-compatible mic-input jack.

Neumann offers three more cables to work with other popular wireless transmitters including Lectrosonics, Shure, Zaxcom, Wisycom, and others.

  • AC 32 cable with LEMO 3-pin connector
  • AC 33 cable with Microdot connector
  • AC 34 cable with 4-pin mini-XLR connector

Rugged Modular System Built for Long Service Life

The MCM is a rugged modular system. Neumann assembles the KK 14 capsule by hand and encapsulates it in a lightweight titanium housing. The gooseneck and all the other components are easily replaceable, ensuring long service life for live and stage performances.

Expand Your MCM Modular System with Instrument-Specific Mounts

Neumann offers a comprehensive line-up of instrument-specific magnetic, clip-on, clamp, or strap mounting solutions, allowing you to customize your system for use with a wide variety of instruments.

  • MC 1: Clip to mount the gooseneck on the body of a violin, viola, mandolin, and similar instruments
  • MC 2: Clip to mount the gooseneck on the strings of a cello below the bridge
  • MC 4: Clip to mount the gooseneck on the rib/body of a double bass or similar instrument
  • MC 5: Universal strap clip to mount the gooseneck on an oboe, clarinet, recorder, bassoon, flute, or harp
  • MC 6: Universal clamp to mount the gooseneck on the bell of a trumpet, trombone, saxophone, French horn, or on a percussion instruments or pole stand
  • MC 7: Clip to mount the gooseneck on the rim of a snare, tom, stand tom, or timpani
  • MC 8: Magnetic clip to mount the gooeseneck in an upright piano or grand piano
  • MC 9: Clip to mount the gooseneck to the body of a guitar, ukulele, dobro, acoustic bass, or cello
Microphone
Primary Applications Live Sound, Studio Recording, Broadcast, Location Sound
Form Factor Gooseneck
Intended Sound Sources Drums, Percussion, Snare, Toms
Sound Field Mono
Operating Principle Pressure Gradient
Capsule 1 x Electret Condenser
Polar Pattern Cardioid
Orientation End Address
High-Pass Filter None
Gain Adjustment None
Windscreen Foam (Included)
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 153 dB SPL (Phantom Power)
Impedance 50 Ohms
Load Impedance 1000 Ohms
Sensitivity 3.6 mV/Pa at 1 kHz into 1 Kilohms
Dynamic Range 130 dB A-Weighted
Signal-to-Noise Ratio 63 dB CCIR (Phantom Power)
71 dB A-Weighted (Phantom Power)
Equivalent Noise Level 31 dB CCIR (Phantom Power)
23 dB A-Weighted (Phantom Power)
THD < 0.5% (Phantom Power)
Connectivity
Output Connectors (Analog) 1 x XLR 3-Pin Male (on Detachable Cable)
1 x 1/8" / 3.5 mm TRS Male (Locking, on Detachable Cable)
Headphone Connector None
Cable Length 6' / 1.8 m
Power
Operating Voltage 48 V (Phantom Power)
Operating Current Consumption 3.5 mA
Physical
Color Black
Mounting Instrument Clamp (Included)
Included Case Soft Case
Included Filters None
Construction Material Titanium
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 90%
Storage Temperature -4 to 158°F / -20 to 70°C
Dimensions ø: 0.5 x L: 0.4" / ø: 12 x L: 11 mm (Capsule)
L: 5.9" / L: 150 mm (Gooseneck)
Weight 0.1 oz / 2.3 g (Microphone)
