PortKeys MT22E Production monitor 21.5inch

by PortKeys
Raspoloživost: Isporuka 14-20 dana
SKU
MT22E

MT22E Production Monitor
Provides two-way 3G-SDI inputs and one way SDI output, Four-way HDMI input and output up to 4K
21.5 inch 1000nits
1920*1080 8+2 (FRC) Bit

2.395,75 €/18.050,78kn 1.916,60 €/14.440,62kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • x1 MT22E monitor
  • x1 Folding stand
  • x1 Power cable 12V5A
  • x1 M2 Allan Wrench
  • x8 Crystal Drop Rubber botton

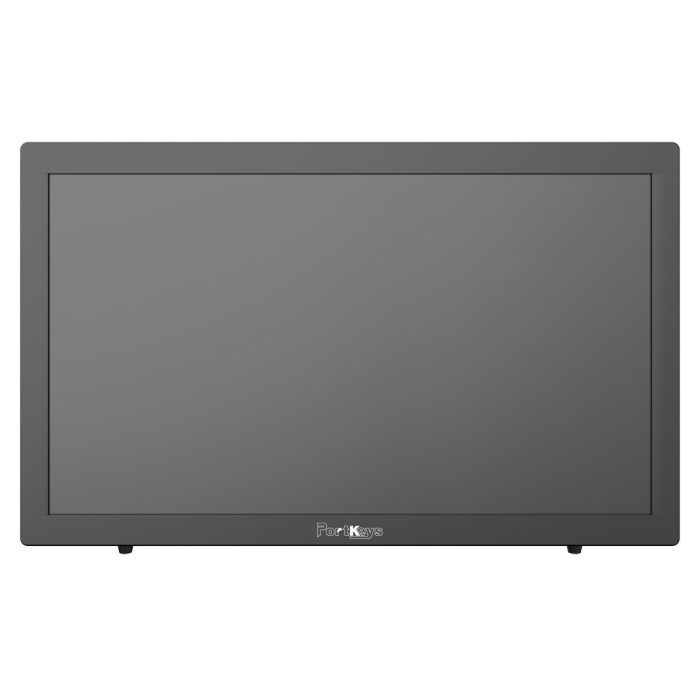

Portkeys MT22e High-bright Monitor

Portkeys MT22e is a 21.5-inch high brightness production monitor with 1000 nit brightness, 1920*1080 resolution, 3000:1 contrast ratio, achieving 10-bit color depth through FRC technology. It is a large monitor with HLG function that can monitor richer colors and details of the picture.

MT22E Features:

  • Support multiple devices to simultaneous monitor
  • Provides two-way 3G-SDI inputs and one way SDI output, Four-way HDMI input and output up to 4K
  • Folding stand
  • Support monitoring from various angles
  • x-rite 709 color gamut automatic color calibration
  • Support use x-rite i1 Display Pro screen color calibration device for one-click calibration
  • Wireless Video Transmission Power Supply Plate
  • Compatible model: XM1000S, CineEye-Pro, Moma400s
  • Provide multiple power supply methods
  • CANNON power interface, D-TAP power interface, and V mount battery plate

Screen Size: 21.5 Inch
Resolution: 1920 x 1080
Brightness: 1000nits

Specifications
Display Size 21.5"
Screen Resolution 1920 x 1080
Viewing Angle Horizontal: 178°Vertical: 178°
Brightness 1000 nit
Contrast Ratio 3000:01:00
Colour Dept 8 + 2 (FRC) bit
Video Input 3G SDI, 4K HDMI, Video, R/L, GPI, F Key
Video Output 3G SDI, HDMI
Signal Convert Convert HDMI in to SDI out, Convert SDI in to HDMI out, Waveform output, 3D LUT output
Upgrade Firmware / Load LUT USB-A
Audio Input XLR 1, XLR 2
Audio Output 3.5mm Headphone Jack
DC Input Power Input: 4 Pin XLR Connector, 4 Pin Aviation Connector 12-24V
  Output: D-Tap 12-24V, DC 5V, USB 5V Wireless Video Transmission Power Supply Plate
Automatic Colour Correction Colour Correction Focus Puller
Maximum Power 40W
Dimension 523 x 320 x 110mm
Weight 5.8kg
