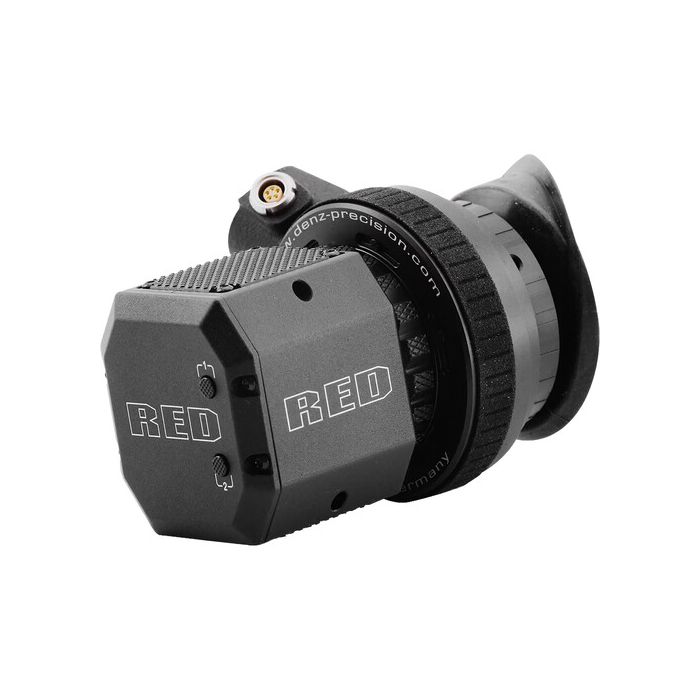

RED Denz Premium Optics for RED Compact EVF

by RED

Dostupnost: Isporuka 7-10 dana

SKU

790-0781

The Denz Premium Optics upgrade for RED® Compact EVF is a quick and seamless option to enhance the RED Compact EVF and DSMC2 RED EVF (OLED).

5.187,50 € 4.150,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Novo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

1x Denz Premium Optics
1x Denz Eye Cup
1x Allen Wrench
2x RED 20mm Wingnut and Shim
1x RED P-Tap-to-5-Pin Power Cable
1x RED 2-Pin-to-5-Pin Power Cable

Opis

The Denz Premium Optics upgrade for RED® Compact EVF is a quick and seamless option to enhance the RED Compact EVF and DSMC2 RED EVF (OLED). This ocular attaches to the integrated bayonet mount on the EVF, replacing the standard optics and providing the following enhancements to the EVF

Higher optical qualities with a sharper image to assist with operating and pulling focus.
Improved off-axis viewing angles.
Increased diopter range of -4 to +3.
An integrated ocular heater (powered by optional 5-Pin cable) for humid or sub-zero conditions to prevent fogging.
A quick connect eye-cup for easy adjustability and light blocking.

NOTES:

The RED Compact EVF is sold separately.
When using the RED EVF Mount and RED EVF Extension Arm, a thumbscrew must be replaced by a wing nut (2x included) to enable full motion of the EVF.
If the supply voltage is too high (> 40V), the electronic circuit of the eyecup might be damaged.
For issues or troubleshooting, contact office@denz-precision.com.

Specifikacije

DIMENSIONS	Height: 3.03 in. (77.00 mm)
	Width: 3.54 in. (90.00 mm
	Depth: 4.09 in. (104.00 mm)
WEIGHT	Approximately 0.88 lbs (400.00 g)
MATERIAL	Aluminum, Plastic
EVF MOUNTING	Via RED Compact EVF/DSMC2 EVF Bayonet Mount
DIOPTER RANGE	–4 to +3 diopter correction range
VOLTAGE	10 – 32 VDC
	Inverse polarity protection safety shutdown at overvoltage and undervoltage
CURRENT CONSUMPTION	Approximately 0.54 A at 12 VDC
	Approximately 0.30 A at 24 VDC
	No residual current when switched off
HEATING POWER	Approximately 7W regardless of supply voltage
	Two temperature settings
	HI for very cold conditions up to -18°C/-0.4°F
	LO for normal conditions and climate
POWER IN	Fully coated optics with >5-Pin 0B (Pin 1 Power/ Positive, Pin 4 Ground/ Negative)
OPERATING TEMPERATURE	–30°C to 50°C (–22°F to 122°F)
STORAGE TEMPERATURE	0% to 85%, non-condensing
