RED DSMC3 RED Touch 7.0" LCD

by RED

Dostupnost: Isporuka 7-10 dana

SKU

730-0029-E

Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD from RED DIGITAL CINEMA.

3.437,50 € 2.750,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Novo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

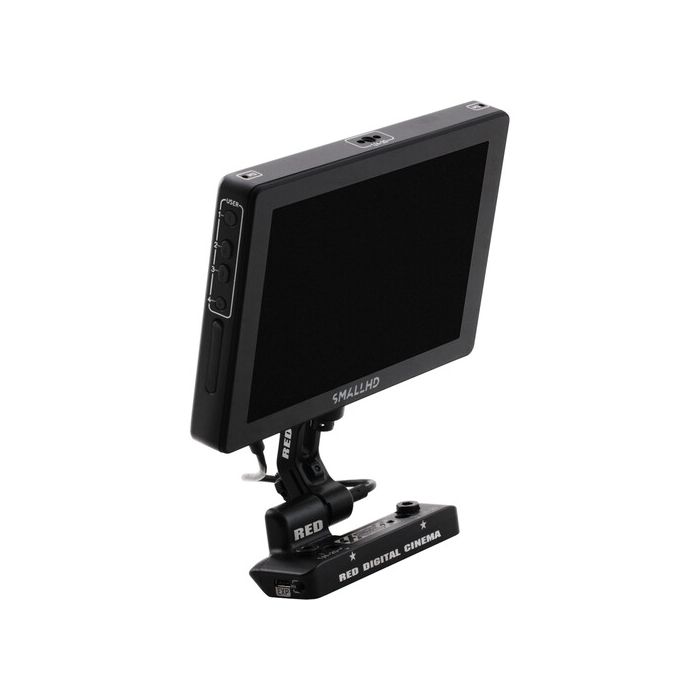

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD
RED Monitor Interface
Arm
DSMC3 RMI Cable

Opis

HD Viewing and Camera Control Monitor
Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras. The rigid hinge and arm enable you to apply greater pressure for positioning the monitor for better viewing. The Touch monitor features 1920 x 1200 resolution, a 1250:1 contrast ratio, and 1300 cd/m² brightness for high-quality imaging.

Direct Pogo Mount
The Touch 7.0" monitor attaches directly to your DSMC3 BRAIN using its pogo mount, which provides video, data, and power to the monitor from the camera. If you need to use the pogo mount for another accessory, the monitor also features a locking USB-C connector that alternately allows you to pass video, data, and power to the camera.

Compatible Cameras:

KOMODO-X
V-RAPTOR
V-RAPTOR XL

Specifikacije

Display
Panel Type	LCD
Display Size	7.0" / 17.8 cm
Screen Resolution	1920 x 1200
Viewing Angle	Horizontal: 160°
	Vertical: 160°
Maximum Brightness	1300 nits / cd/m2
Contrast Ratio	1250:1
Color Gamut	100% DCI-P3
Image Controls	Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Marker Color, Pixel Zoom, Scaling, Screen Markers, Vectorscope, Waveform, Zebra
Optics
Field of View	160°
Inputs / Outputs
Inputs/Outputs	2x Proprietary Video/Data/Power Input/Output
Power Consumption	18.3 W (Maximum)
General
Operating Conditions	32 to 100°F / 0 to 38°C up to 85% Humidity
Storage Conditions	0 to 120°F / -18 to 49°C up to 85% Humidity
Tripod/Accessory Mounting	Top
	5x M3 Female
Material of Construction	Aluminum
Dimensions	7.1 x 4.7 x 1.1" / 180 x 118.7 x 28.8 mm
Weight	1.25 lb / 568.00 g
