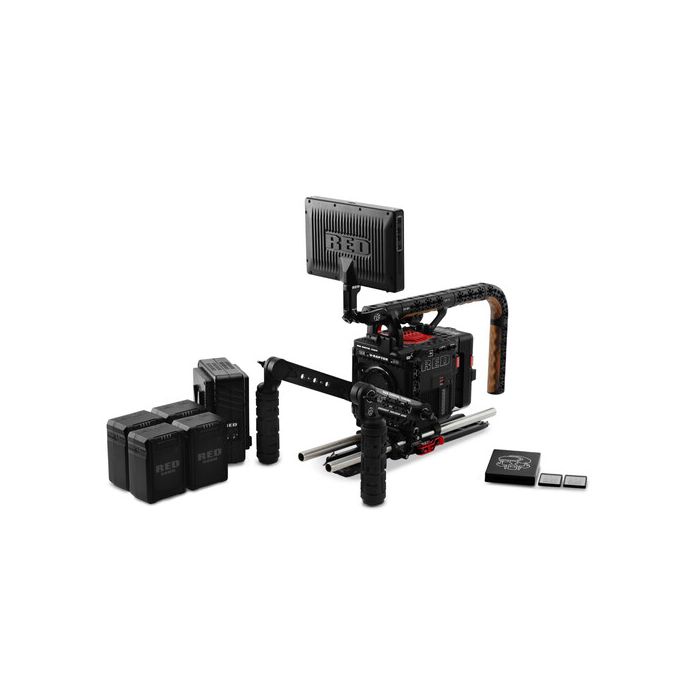

RED V-RAPTOR Production Pack (Gold Mount)

by RED
Raspoloživost: Isporuka 14-20 dana
SKU
710-0366

V-RAPTOR DSMC3 8K VV Camera System
4 x REDVOLT MICRO-V Batteries
Dual V-Mount Charger, RED Touch 7.0 LCD
2 x 2TB PRO CFexpress Cards & Reader

46.725,06€/352.050,00 kn 37.380,05€/281.640,00 kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • 1x V-RAPTOR 8K VV Camera System
  • 1x DSMC3 RED Touch 7” LCD​
  • 2x RED PRO CFexpress 2TB
  • 1x RED CFexpress Card Reader
  • 4x REDVOLT MICRO-G
  • 1x RED Compact Dual Gold Mount Charger
  • 1x V-RAPTOR Tactical Top Plate w/ Battery Adapter (Gold Mount)
  • 1x V-RAPTOR Top Handle w/ Extensions
  • 1x V-RAPTOR Expander Blade
  • 1x V-RAPTOR Quick Release Platform Pack
  • 1x DSMC3 RED 5-Pin to Dual XLR Adapter
  • 1x RED Production Grips
  • 1x V-RAPTOR Side Ribs
  • 1x V-RAPTOR Production Plates

Capture stunning images in resolutions up to 8K VV using the latest DSMC3 camera and a robust complement of accessories with the V-mount V-RAPTOR Production Pack from RED DIGITAL CINEMA. This bundle includes the V-RAPTOR 8K VV + 6K S35 dual-format camera, four REDVOLT MICRO-V 98Wh V-mount batteries, a dual-battery charger, two 2TB PRO CFexpress cards and one card reader, a RED Touch 7" LCD monitor, a top handle with extensions, an expander blade, a quick release platform pack, a 5-pin to dual-XLR adapter, side ribs and production plates, and an AC power supply for the camera.

The V-RAPTOR captures up to 8K VV and 6K Super35 video, and it features an RF lens mount, dual 12G-SDI outputs, REDCODE Raw recording at high frame rates, 1080p streaming, 17+ stops of dynamic range, and phase-detection autofocus. The included batteries and AC adapter keep the camera powered, and the CFexpress cards are designed specifically for the new line of DSMC3 cameras. Read more below about the components in this pack.

RED DIGITAL CINEMA V-RAPTOR 8K VV DSMC3 Camera (Canon RF, Black)

Compact, fast, and full-frame—the black V-RAPTOR 8K VV Camera is an impressive introduction to RED DIGITAL CINEMA's new DSMC3 platform. Sized only slightly larger than the KOMODO but boasting a new sensor, the V-RAPTOR offers multi-format capture in 8K VV, 6K Super35, 4K, 3K Super16, and anamorphic options. This versatility enables you to adapt your format from project to project to suit your choice of a variety of pro cine or still photo lenses. The V-RAPTOR's RF lens mount can be used with numerous lens adapters, and it has a locking ring that provides additional security for use with heavier lenses and steady, wide-open capture. In response to user feedback, RED has added a right-side user interface that brings control to 1st and 2nd ACs right at the camera. Dual 12G-SDI outputs, resolutions including 16-bit REDCODE Raw at significantly higher frame rates, 1080 streaming, 17+ stops of dynamic range, and phase-detection autofocus (PDAF) further boost the V-RAPTOR's suitability for a range of production styles.

New Full-Frame Sensor

The new 35.4MP full-frame sensor at the heart of the V-RAPTOR provides 17+ stops of dynamic range that enable it to excel at low-light capture while offering the lowest noise floor of the RED lineup. And while the V-RAPTOR does not employ a global shutter, its rolling shutter with high-speed readout is almost twice as fast as that of the MONSTRO, all but eliminating motion artifacts. This new sensor also enables phase-detection autofocus (PDAF), a boon for single operators grabbing fast-paced or unpredictable action. To accompany the new sensor, a new fixed OLPF (optical low-pass filter) will enable you to capture RED's signature color quality and sensitivity.


Compact Micro-V Batteries

In keeping with the V-RAPTOR's smaller footprint, power is obtained using RED and Core SWX-developed Micro-V mount batteries or RED-approved batteries from Anton Bauer, bebob, FXlion, Hawk-Woods, IDX, and SWIT. Measuring less than 3" wide, the 98Wh RED Micro-V batteries will power the camera for about one hour, with one battery charging in about 2.5 hours and two in 4 hours on the dual charger. Full-size V-mount and Gold-mount adapters will be available as well for users who already have a supply of those batteries or want longer runtimes.


CFexpress Card Capture

Capture to CFexpress 2.0 Type B cards will enable V-RAPTOR users to avail themselves of more widely available media, although currently, only the RED/Angelbird 660GB card is RED approved. This 660GB card will soon be joined by a 1.3TB card version.

Assistant Interface

A right-side LCD screen user interface offers on-camera control to 1st and 2nd ACs or an operator positioned at that side of the camera. Physical buttons eliminate accidental selections that can occur with touchscreens, and the ability to save user pages lets you customize the interface to your liking. The interface also helpfully only displays the resolutions and frame rates available with your chosen format.

Input and Outputs

Dual 12G-SDI ports enable you to output mirror feeds to two displays, or individual feeds with or without focus peaking, timecode, or other displays, or with two different looks. A USB Type-C port outputs up to 1080p video for streaming or other uses.

High-Speed and REDCODE Options

When slow-motion is your thing, the V-RAPTOR delivers with high-speed frame rates options, including 8K 17:9 at 120 fps, 6K S35 at 198 fps, 4K 17:9 at 240 fps, and 2K 2.4:1 up to a blazing 600 fps.
REDCODE Raw options have been simplified with HQ, MQ, and LQ selections equaling the more popular choices available in RED DSMC2 cameras. Because the 8K sensor captures such massive detail, RED recommends trying MQ or even LQ for most uses, with HQ being ideal for F/X work. Data rates range from 180 MB/s in LQ to 360 MB/s in HQ, so you can plan your media needs accordingly.


DSMC3 Form

The DSMC3 form features several improvements over DSMC2 but offers only limited compatibility with DSMC2 accessories. For example, the KOMODO Outrigger handle is compatible, but POGO-connector compatibility is limited to the new V-RAPTOR version components. One update is a larger fan system with two intake valves that provide better thermal heat exchange (TEC), enabling a wide ambient temperature operating range.


DSMC3 Accessories

Separately available, upcoming V-RAPTOR accessories include a dedicated 7.0 TOUCH monitor, a new expander module, a top plate, a top handle with extension, an Arca-Swiss compatible quick release baseplate system, side handgrips, cage-type side accessory arms, and a 5-pin to dual XLR audio adapter.


RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount)

Add a direct-mount onboard monitor to your DSMC3 camera rig with this DSMC3 RED Touch 7.0" LCD Monitor from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The monitor features a high 322 ppi pixel density, 1920 x 1200 resolution, 1250:1 contrast ratio, and 1300 cd/m² brightness that combine to offer high-quality imaging.

This monitor attaches directly to your DSMC3 BRAIN using the Pogo mount, and it provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB Type-C connector that alternately allows you to pass video, data, and power to the camera. The monitor features a tilt mount that allows it to tilt 180°.



RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card

Certified for RED V-RAPTOR camera systems, the 2TB PRO CFexpress 2.0 Type B Memory Card from RED offers protection from overheating, operates with a reduced power draw, and helps to ensure high bitrate captures. This card can capture all frame rates and resolutions, including Full HD and raw 4K, 6K, 8K, and 12K video. It features a capacity of 2TB and uses the PCIe 3.0 x2 bus to deliver maximum read/write speeds of 800 MB/s.

Designed and manufactured by Angelbird for RED, the PRO CFexpress 2.0 Type B series has been engineered with protection against shock, dust, water, temperature extremes, and x-rays, and has an MTBF (Mean Time Between Failures) rating of 2.4 million hours. Included is lifetime data protection and an activation code for the full limited 3-year warranty. To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.

Compatibility

  • RED V-RAPTOR 8K VV cinema camera
  • RED CFexpress card reader

General Features

  • 2TB capacity
  • Max Read/Write Speed: 800 MB/s
  • Stable Stream
  • CFexpress 2.0 Type B
  • For photos, HD videos, and raw 4K to 12K resolutions
  • Y1 processor designed for raw video and photo content
  • Adaptive Power Management helps preserve battery life and card endurance
  • Host Power Loss Protection
  • Advanced Thermal Management helps protect the card, camera, and stored content
  • Free data recovery service at the hardware and software levels
  • Sticker Free
  • Mean Time Between Failures of up to 2.4 million hours
  • Temperature Sensor, TRIM, ECC, EMS Protection, Built-In Cache, and SMART


Overheating Protection

With Angelbird's adaptive thermal management system, you can feel confident that your data is protected from the threat of potential damage due to camera overheating during long shoots.


AV Pro Line Offers Quality and Performance

The AV Pro product line pushes the limits of speed and performance in the safest possible way. All AV Pro media solutions consider the real-world media needs of the professional creative and feature Stable Stream performance technology, which is ideal for high- definition, lossless (drop-fee) video recording and smooth data processing.

The entire lineup of Angelbird's AV Pro media solutions is built with rock-solid performance protections such as, shock, dust, x-ray, and splash-water proofing, and are tested for safe operating temperatures at extremes of -13 to 185°F.
Free Professional Data Recovery Service
Angelbird offers free professional data recovery service on all its products. In lieu of a self-service software download, Angelbird provides a staff of professionals who will evaluate the issue and safely attempt a secure data-recovery in their lab along with complementary express shipping. This service covers media that has encountered physical damage and/or software issues such as data or file corruption. Furthermore, Angelbird extends a non-disclosure agreement to their customers to ensure that the privacy and confidentiality of their content is also protected.



RED DIGITAL CINEMA CFexpress Card Reader

The CFexpress Card Reader from RED allows for the fast ingestion of the RED PRO 660GB CFexpress media card on systems that support 20 Gb/s USB 3.2 Gen 2x2. Built with a USB Type-C interface, power is received through the USB bus, meaning that no external power sources are required. The reader features a write-protect switch on the back to protect your data.

Compatibility
RED PRO 660GB CFexpress card


RED DIGITAL CINEMA REDVOLT MICRO-V Battery (98Wh, V-Mount)

Power your KOMODO V-RAPTOR camera with the MICRO-V Battery from RED DIGITAL CINEMA. This 98Wh battery features a compact, lightweight form, up to 12A draw, and data transmission of the remaining time and select accessory information. Designed in conjunction with battery-maker Core SWX, the compact REDVOLT BP is compatible with select other cameras when used with a full-size V-mount adapter.

Note:
Not compatible with the KOMODO but may be compatible with DSMC, DSMC2, and RANGER systems when used with a V-mount adapter.

Compatibility

  • RED V-RAPTOR camera
  • Select other cameras using a full-size V-mount adapter
  • Lightweight, Compact Form
  • Ideal for handheld capture
  • Weighs just over 1 lb and measures less than 4" wide
  • In-Camera Display
  • Communicates with your V-RAPTOR and select accessories to offer in-camera status display


RED DIGITAL CINEMA Compact Dual Battery Charger (V-Mount)

Charge two V-mount batteries for use with a DSMC3 cinema camera such as the V-RAPTOR 8K VV while on location with the RED Compact Dual V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this compact charger can charge two V-mount REDVOLT MICRO-V or REDVOLT XL-V batteries at a 3A rate. Designed and manufactured in partnership with Core SWX, the charger can charge two REDVOLT MICRO-V 98Wh batteries in less than five hours. A power cable is included.

Note:
This dual charger was designed in partnership with Core SWX and is compatible with most V-mount batteries. Contact Core SWX for issues or troubleshooting.

Compatibility

  • RED REDVOLT MICRO-V batteries
  • RED REDVOLT XL-V batteries
  • Most V-mount batteries


RED DIGITAL CINEMA V-RAPTOR Expander Blade

Mount the RED V-RAPTOR Expander Blade to your V-Raptor camera to gain video, power, and communication ports, enabling a wide choice in how you configure your camera for professional applications. The Expander Blade attaches to your camera via the camera's 9-pin EXT port and is supported by the included ARCA plate.

Once attached, the Expander plate provides a BNC connector (Genlock video), 5-pin connector for timecode, 4-pin connector for RED CTRL, and 3-pin Fischer for Run/Stop. Please note that the 3-pin Run/Stop is only for trigger, and it does not supply power.

Note:
The V-RAPTOR Expander Module is for DSMC3 cameras only, and it is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.


RED DIGITAL CINEMA V-RAPTOR Quick Release Platform Pack

Designed for V-RAPTOR camera users, the RED V-RAPTOR Quick Release Platform Pack is a sturdy yet compact QR plate release system for mounting and balancing your V-Raptor on a tripod. The platform, or baseplate, features 15mm LWS rod clamps and includes two 15mm rods, allowing you to use standard lens supports and accessories such as matte boxes, follow focus units, lens motors, and more with your V-RAPTOR. The platform slides onto the included dovetail plate and has a lever lock to clamp it in place once you have found the balance point you want.

The platform has a lever lock for clamping the included Arca plate in place, as well as a spring-loaded safety catch to help prevent the Arca plate from accidentally sliding off the platform. The dovetail plate has multiple 1/4"-20 and 3/8"-16 threaded mounting holes along its length for attaching to a tripod, and the combination of the sliding platform, Arca plate, and dovetail with its multiple mounting holes allows you to balance a variety of shooting configurations. In addition to supporting your camera, the QR Platform Pack also supports optional battery adapter plates, the RED V-RAPTOR Expander Blade, and RED Side Ribs for added versatility.

Note:
The V-RAPTOR Quick Release Platform Pack is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
The Arca plate features two 1/4"-20 threaded mounting holes at the front of the plate, and a total of 14 x M4 threaded holes around the front and sides
A locating pin and rubber grip pads along the top of the Arca plate help prevent your camera from twisting on the plate

RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter

Add two XLR inputs to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can provide 48V phantom power and supports both mic and line-level inputs. It mounts to the V-Raptor using a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit also features 6 x M2.5 screw holes for future accessories.

Note:
The DSMC3 RED 5-pin to dual XLR 3-pin adapter is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.

8Sinn Reversible Side Plate for Red V-Raptor (2 Pcs)

Designed specifically for the RED V-RAPTOR, this Reversible Side Plate for RED V-RAPTOR from 8Sinn is a two-piece set of side plates that can be used on the left or right side of the camera. Simply attach each plate using two screws from the only two mounting threads where the plate adheres to the camera, which also prevents unwanted damage from accidentally using screws that may be too long. Multiple 1/4"-20 mounting points are available, along with three 3/8"-16 with ARRI locating points. Optional reduction bushings can also transform the 3/8"-16 threads into 1/4"-20 mounting options.

SENSOR TYPE V-RAPTOR™ 8K VV 35.4 Megapixel CMOS
EFFECTIVE PIXELS 8192 x 4320
SENSOR SIZE 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE 17+ stops
MOUNT TYPE Integrated RF mount with RF lens support
  Supports Canon EF lenses via compatible Canon RF to EF mount adapters
  Accepts other Canon RF mount-based lens adaptors for diverse lens choices
MAX DATA RATES Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]
REDCODE® RAW MAX FRAME RATES 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
  140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
  160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
  192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
  240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
  320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
  480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
BEST AVAILABLE REDCODE® SETTINGS REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
  REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
  REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
  REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
  REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
  REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
  REDCODE® RAW
ACQUISITION FORMATS 8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
  7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
  6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
  5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
  4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
  3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
  2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
APPLE PRORES Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096 x 2160)
  Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)
CONSTRUCTION Aluminum Alloy
WEIGHT 4.03 lbs (without body cap and CFexpress card)
BATTERY TYPE Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
DC POWER INPUT 11-17V via 6-pin DC-IN
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY 0% to 85% non-condensing
COLOR MANAGEMENT Image Processing Pipeline 2 (IPP2)
  Supports 33×33×33 3D LUTs
  Supports import of CDLs
AUDIO Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
  Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
AUTOFOCUS Contrast and Phase Detect
REMOTE CONTROL Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
  Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
  Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload
MONITOR OUTPUTS Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
  12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
  6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
  3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
  1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
  SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS DSMC3™ RED® Touch 7.0” LCD
  Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
  Integrated 2.4" LCD for camera control (no preview video)
RED CONTROL Access full camera controls and live preview from iOS or Android devices
  Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C
