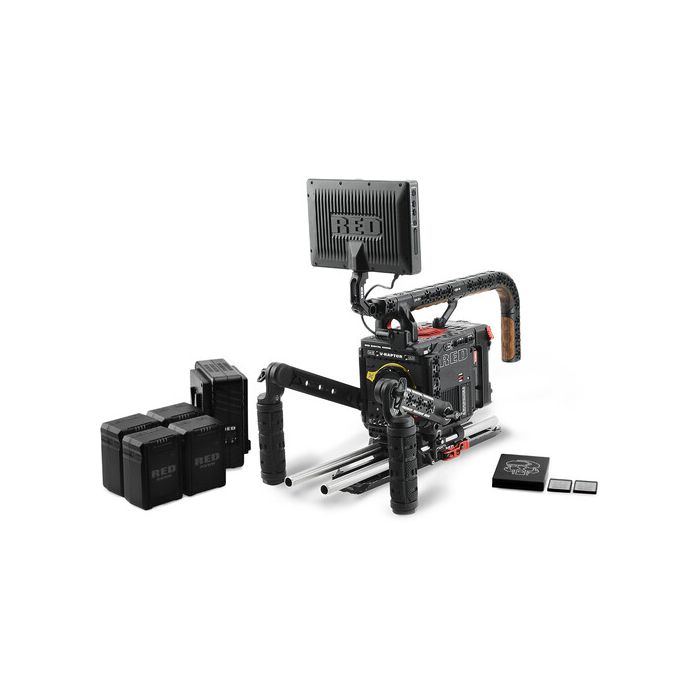

RED V-RAPTOR [X] Z Mount Production Pack (V-Lock)

by RED

Dostupnost: Isporuka 14-20 dana

SKU

710-0435

The V-RAPTOR [X] Z Mount Production Pack from RED pairs the global shutter V-RAPTOR [X] Z Mount 8K VV camera with a locking Nikon Z mount with key accessories.

45.437,50 € 36.350,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Novo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

RED DIGITAL CINEMA V-RAPTOR [X] 8K VV Camera (Nikon Z)
RED DIGITAL CINEMA DSMC AC Power Adapter Pack
2 x RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card
RED DIGITAL CINEMA CFexpress Card Reader
USB Type-C 3.2 Cable
USB Type-A to Type-C Adapter
4 x RED DIGITAL CINEMA REDVOLT MICRO-V Battery (98Wh, V-Mount)
RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge
Rigid Hinge Arm
DSMC3 RMI Cable
RED DIGITAL CINEMA V-RAPTOR Tactical Top Plate with Battery Adapter Plus (V-Mount)
V-RAPTOR Tactical Top Plate
Front Cheese Plate
V-RAPTOR Advanced V-Mount Adapter Plus
Battery Support Bracket
RED DIGITAL CINEMA V-RAPTOR Top Handle with Extensions
Extension (1")
Extension (3")
Extension (5")
Elbow Piece
15mm Monitor Mount
RED DIGITAL CINEMA V-RAPTOR Expander Blade
Arca Plate
RED DIGITAL CINEMA V-RAPTOR Quick Release Platform Pack
Quick Release Platform
Dovetail Mounting Plate (Short)
Dovetail Mounting Plate (Long)
Arca Plate
2 x 15mm Rod
RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter
Right-Angle Mounting Bracket
2 x 1/4"-20 Mounting Screw
RED DIGITAL CINEMA Side Ribs for V-RAPTOR
RED DIGITAL CINEMA Production Grips (Pair)
Compact Dual-Battery Charger (V-Mount)
Production Plates

Opis

RED DIGITAL CINEMA V-RAPTOR [X] 8K VV Camera (Nikon Z)

Z-Mount 8K VV Camera

Continuing to provide the latest digital cinema advances, the V-RAPTOR [X] 8K VV Camera pairs the strengths of the RED DIGITAL CINEMA V-RAPTOR line with the global shutter of the KOMODO camera and a native Nikon Z mount offering adjustable AF speeds, fluid iris control, and customizable lens responses.

Optimal 8K Resolution Performance

The powerful, all-purpose V-RAPTOR [X] Z Mount incorporates 8K resolution, crisp global shutter, optimal low-light performance, and high frame rate functions in a compact, feature-rich body weighing just over 4 lb.

New Large-Format Standard

This DSMC3 flagship camera is the first large-format global shutter camera and the first to offer RED's Global Vision with a suite of tools that provide unprecedented flexibility and dynamic range. Key features shared with the original V-RAPTOR include a single CFexpress Type B card slot that supports up to 8K120 capture and two unique 12G-SDI monitoring outputs. The V-RAPTOR [X] Z Mount also features a redesigned sensor cavity that mitigates stray light and improves contrast, plus improved in-camera audio preamps.

Advanced, Intelligent Focus

In-camera processing and on-sensor, enhanced phase-detection autofocus plus all-new face detection enables the V-RAPTOR [X] Z Mount to offer versatility and confidence to all levels of filmmakers.

Nikon Z Lens Mount

The V-RAPTOR [X] Z Mount's reinforced, locking Nikon Z lens mount has advanced iris, autofocus, and lens response capabilities.
It offers toolless switching to additional RED mounts and compatibility with third-party adapters for a wide range of lenses. Use the V-RAPTOR [X] Z Mount with the RED Z to PL adapter for compatibility with upcoming /i PL lenses.

Dynamic Range

The 17+ stops of dynamic range in standard modes and up to 20+ with Extended Highlights enable the V-RAPTOR [X] Z Mount to deliver both smooth highlight roll-off and uncompromising low-light performance.

Phantom Track

The Phantom Track function streamlines any virtual production workflow using GhostFrame or frame remapping, capturing distinct R3D clips for each subframe slice in addition to enabling monitoring of either slice live on set over each SDI output. This enables your director and talent to work with a green screen background while the VF/X team can simultaneously view the frame without having to view or lock in that background. Phantom Track can also be used when applying dedicated ad overlays during a live broadcast.

Up to 8K at 120 fps

Unmatched frame-rate performance enables V-RAPTOR [X] Z Mount users to leverage creative elements like time-lapse or speed ramping or to extract ultrasharp still photos. Frame rate options include 8K, 6K, 4K, and 2K selections.

Global Shutter

This camera's large-format global shutter accurately captures your subject's motion, no matter how fast they're moving, with no distortion or Jello-like effects sometimes found with a rolling shutter. With the global shutter, you can capture every movement, flash, and burst without compromising image quality, dynamic range, or flexibility in post-production.

RED Global Vision

RED's Global Vision suite of tools uses the global shutter sensor to offer even greater flexibility and ease of use throughout your production process. These tools include Extended Highlights for increasing detail, producing finer HDR finishes or softer, more subtle highlight roll-offs when using SDR. Extended Highlights also offers 3+ stops of additional dynamic range, maintaining color and detail even within extreme highlights.

Built-In Control Display

The integrated side display provides intuitive, easily navigable, comprehensive control, including in-camera format selections, customized buttons, and more.

Virtual Production/Advanced Connectivity

The V-RAPTOR [X] Z Mount uses a DSMC3 platform to offer advanced connectivity solutions like remote control, remote monitoring, in-camera Frame.io integrations, AWS (Amazon Web Services) direct upload, the RED Connect module for live 8K R3D video over IP or live 4K via SMPTE ST 2110, and more. These enhanced features put the V-RAPTOR [X] Z Mount at the forefront of technology used for virtual production.

Live Streaming and Control Pro App

Connect the V-RAPTOR [X] Z Mount using fiber cable and the RED CONNECT module to live stream 8K full-resolution, cinematic video over an IP network. Use the RED Control Pro iOS/Android app and the all-new RED CONNECT technology to unlock the V-RAPTOR [X] Z Mount's capabilities.

All-New Audio Architecture

Newly engineered audio hardware provides cleaner, clearer audio when using external microphones with the V-RAPTOR [X] Z Mount.

Durable, Rugged Design

Designed with water and dust-resistant materials in critical areas of its body, the V-RAPTOR [X] Z Mount is suitable for a wide variety of environments. However, it is not waterproof and should be handled like other high-end electronics.

RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card

Certified for RED V-RAPTOR and KOMODO-X camera systems, the 2TB PRO CFexpress 2.0 Type B Memory Card from RED offers protection from overheating, operates with a reduced power draw, and helps to ensure high bitrate capture. This card can capture all frame rates and resolutions, including Full HD and raw 4K, 6K, 8K, and 12K video. It features a capacity of 2TB and uses the PCIe 3.0 x2 bus to deliver maximum read/write speeds of 1785 MB/s.

Durable Angelbird Build

Designed and manufactured by Angelbird for RED, the PRO CFexpress 2.0 Type B series has been engineered with protection against shock, dust, water, temperature extremes, and x-rays, and has an MTBF (Mean Time Between Failures) rating of 2.4 million hours. Included is lifetime data protection and an activation code for the full limited 3-year warranty. To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.

Compatibility

RED V-RAPTOR 8K VV cinema camera
RED KOMODO-X cinema camera
RED CFexpress card reader

General Features

2TB capacity
Max read/write speed: 1785 MB/s
CFexpress 2.0 Type B
Produces a stable stream

Performance

For photos, HD videos, and raw 4K to 12K resolutions
Y2 processor designed for raw video and photo content
Adaptive Power Management helps preserve battery life and card endurance
Host power loss protection
Sticker-free design prevents media slot jams
Mean Time Between Failures of up to 2.4 million hours
Temperature sensor, TRIM, ECC, EMS protection, built-in cache, and SMART

Overheating Protection

With Angelbird's adaptive thermal management system, you can feel confident that your data is protected from the threat of potential damage due to camera overheating during long shoots.
Advanced thermal management helps protect the card, camera, and stored content.

AV Pro Line Offers Quality and Performance

The AV Pro product line pushes the limits of speed and performance in the safest possible way. All AV Pro media solutions consider the real-world media needs of the professional creative and feature Stable Stream performance technology, which is ideal for high-definition, lossless (drop-fee) video recording and smooth data processing.
The entire lineup of Angelbird's AV Pro media solutions is built with rock-solid performance protections, such as shock, dust, x-ray, and splash-water proofing, and are tested for safe operating temperatures at extremes of -13 to 185°F.

Free Professional Data Recovery Service

Angelbird offers free professional data recovery service on all its products. In lieu of a self-service software download, Angelbird provides a staff of professionals who will evaluate the issue and safely attempt a secure data-recovery in their lab along with complementary express shipping. This service covers media that has encountered physical damage and/or software issues such as data or file corruption. Furthermore, Angelbird extends a non-disclosure agreement to their customers to ensure that the privacy and confidentiality of their content is also protected.

RED DIGITAL CINEMA CFexpress Card Reader

The CFexpress Card Reader from RED allows for the fast ingestion of the RED PRO 660GB CFexpress media card on systems that support 20 Gb/s USB 3.2 Gen 2x2. Built with a USB Type-C interface, power is received through the USB bus, meaning that no external power sources are required. The reader features a write-protect switch on the back to protect your data.

Compatibility

RED PRO 660GB CFexpress card

RED DIGITAL CINEMA REDVOLT MICRO-V Battery (98Wh, V-Mount)

Power your KOMODO V-RAPTOR camera with the MICRO-V Battery from RED DIGITAL CINEMA. This 98Wh battery features a compact, lightweight form, up to 12A draw, and data transmission of the remaining time and select accessory information. Designed in conjunction with battery-maker Core SWX, the compact REDVOLT BP is compatible with select other cameras when used with a full-size V-mount adapter.

Compatibility

RED V-RAPTOR camera
Select other cameras using a full-size V-mount adapter

Lightweight, Compact Form

Ideal for handheld capture
Weighs just over 1 lb and measures less than 4" wide

In-Camera Display

Communicates with your V-RAPTOR and select accessories to offer in-camera status display.

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge

Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD Monitor with Rigid Hinge from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The rigid hinge and arm enable you to apply more pressure for positioning the Touch for optimal viewing. The Touch monitor features 1920 x 1200 resolution, a 1250:1 contrast ratio, and 1300 cd/m² brightness for high-quality imaging.

This monitor attaches directly to your DSMC3 BRAIN using its Pogo mount, which provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB-C connector that alternately allows you to pass video, data, and power to the camera. Note that the DSMC3 Touch monitor is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.

Daylight Viewable

Designed for daylight viewing with 322 ppi, 1920 x 1200 resolution, and 1800 cd/m² brightness.

Rigid Hinge

A rigid hinge system enables you to apply greater pressure when positioning the Touch for reliable viewing.

DCI-P3 Color Gamut

A 1920 x 1200 resolution and wide 100% DCI-P3 color gamut for optimal imaging.

SmallHD Page OS

Runs SmallHD PageOS software that provides full camera control. Features include waveform, vectorscope, histogram, false color, color picker, pixel zoom, and additional functions.

Pogo Mount

Mounts directly onto the BRAIN using the Pogo mount.

USB-C Connector

USB-C connector is used for video, data, and power.

RED DIGITAL CINEMA EXT-to-Timecode Cable (3')

The EXT-to-Timecode Cable enables you to input timecode to your RED DIGITAL CINEMA KOMODO camera. This cable links to the camera via its 9-pin EXT connector and measures 3' including the connectors.

RED DIGITAL CINEMA V-RAPTOR Wing Grip

Use the V-RAPTOR Wing Grip from RED DIGITAL CINEMA to create a low-profile, handheld support option for your camera. This aluminum handle's ergonomic design features both 1/4"-20 and anti-twist 3/8"-16 threads for attaching accessories. The V-RAPTOR Wing Grip can be used on either side of your camera.

RED DIGITAL CINEMA V-RAPTOR Tactical Top Plate with Battery Adapter Plus (V-Mount)

Use the V-RAPTOR Tactical Top Plate with Battery Adapter Plus from RED DIGITAL CINEMA to both securely mount a V-mount battery on your V-RAPTOR BRAIN and power select camera accessories. This plate provides one D-Tap and two 2-pin LEMO ports, a pogo connector, an SMBUS pass-through, an E-Fuse safety system, and multiple 1/4"-20 and 3/8"-16 accessory mounting threads. A 6-pin DC input port can be used to power your camera and accessories simultaneously.

Compatibility

RED V-RAPTOR
V-mount batteries
Note that this plate is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.

Battery Mount and Power Outputs

This top plate and battery plate combo enables you to securely mount a larger battery on your V-RAPTOR, providing longer running times and accessory power. Ports include a 6-pin input, a D-Tap output, and two 2-pin outputs.

Accessory Mounts

The top plate and the front cheese plate both provide a pogo connector and multiple 1/4"-20 and 3/8"-16 accessory threads.

RED DIGITAL CINEMA V-RAPTOR Top Handle with Extensions

The RED DIGITAL CINEMA V-RAPTOR Top Handle with Extensions provides a complete modular top handle solution for the V-RAPTOR, allowing for lightweight or extended wraparound style configurations. It features a dedicated start/stop button, ergonomic bocote wood inlays, and multiple 3/8"-16 and 1/4"-20 mounting points. Additionally, this includes the 1", 3", and 5" top handle extension pieces, an elbow piece and a 15mm Monitor Mount.

RED DIGITAL CINEMA V-RAPTOR Expander Blade

Mount the RED V-RAPTOR Expander Blade to your V-Raptor camera to gain video, power, and communication ports, enabling a wide choice in how you configure your camera for professional applications. The Expander Blade attaches to your camera via the camera's 9-pin EXT port and is supported by the included ARCA plate.

Once attached, the Expander plate provides a BNC connector (Genlock video), 5-pin connector for timecode, 4-pin connector for RED CTRL, and 3-pin Fischer for Run/Stop. Please note that the 3-pin Run/Stop is only for trigger, and it does not supply power.

RED DIGITAL CINEMA V-RAPTOR Quick Release Platform Pack

Designed for V-RAPTOR camera users, the RED V-RAPTOR Quick Release Platform Pack is a sturdy yet compact QR plate release system for mounting and balancing your V-Raptor on a tripod. The platform, or baseplate, features 15mm LWS rod clamps and includes two 15mm rods, allowing you to use standard lens supports and accessories such as matte boxes, follow focus units, lens motors, and more with your V-RAPTOR. The platform slides onto the included dovetail plate and has a lever lock to clamp it in place once you have found the balance point you want.

The platform has a lever lock for clamping the included Arca plate in place, as well as a spring-loaded safety catch to help prevent the Arca plate from accidentally sliding off the platform. The dovetail plate has multiple 1/4"-20 and 3/8"-16 threaded mounting holes along its length for attaching to a tripod, and the combination of the sliding platform, Arca plate, and dovetail with its multiple mounting holes allows you to balance a variety of shooting configurations. In addition to supporting your camera, the QR Platform Pack also supports optional battery adapter plates, the RED V-RAPTOR Expander Blade, and RED Side Ribs for added versatility.

The Arca plate features two 1/4"-20 threaded mounting holes at the front of the plate, and a total of 14 x M4 threaded holes around the front and sides
A locating pin and rubber grip pads along the top of the Arca plate help prevent your camera from twisting on the plate

RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter

Add two XLR inputs to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can provide 48V phantom power and supports both mic and line-level inputs. It mounts to the V-Raptor using a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit also features 6 x M2.5 screw holes for future accessories.

RED DIGITAL CINEMA Side Ribs for V-RAPTOR

The Side Ribs for V-RAPTOR from RED DIGITAL CINEMA are designed to attach directly to the V-RAPTOR Tactical Top Plate. The two side ribs provide a multitude of accessory mounting options with various 1/4"-20 and 3/8"-16 threaded mounting points, as well as a standard rosette on each side rib. Constructed from sturdy 7075 aluminum, the side ribs collectively weigh just under 6 oz.

RED DIGITAL CINEMA Production Grips (Pair)

Use this pair of Production Grips from RED DIGITAL CINEMA to add two-handed support to your V-RAPTOR side ribs or any camera, baseplate, or cage with ARRI-standard rosette mounts. Made of durable aluminum, each handgrip features a contoured rubber grip, an extension arm, and anti-twist 1/4"-20 and 3/8"-16 accessory threads. Together, the grip and extension arm provide two rotation points for setting the grip at the most comfortable angle for your handheld shots.

Specifikacije

RED DIGITAL CINEMA V-RAPTOR [X] 8K VV Camera (Nikon Z)

Imaging
Lens Mount	Nikon Z
Lens Communication	Yes
Image Sensor	40.96 x 21.6 mm (Full-Frame) CMOS
Effective Sensor Resolution	35.4 Megapixel (8192 x 4320)
Image Stabilization	No
Capture Type	Stills & Video
Exposure Control
Shutter Type	Electronic Global Shutter
Advertised Dynamic Range	17 Stops
Focus
Focus Mode	Continuous-Servo AF, Automatic, Single-Servo AF, Manual Focus
Video Capture
Internal Recording	REDCODE RAW
	8192 x 4320 up to 120 fps
	7168 x 3780 up to 140 fps*
	8192 x 3456 up to 150 fps
	6144 x 3240 up to 160 fps*
	7168 x 3024 up to 175 fps*
	5120 x 2700 up to 192 fps*
	6144 x 2592 up to 200 fps*
	5120 x 2160 up to 240 fps*
	4096 x 2160 up to 240 fps*
	4096 x 1728 up to 300 fps*
	3072 x 1620 up to 320 fps*
	3072 x 1296 up to 400 fps*
	2048 x 1080 up to 480 fps*
	2048 x 864 up to 600 fps*
	*Sensor Crops During Recording
	REDCODE HQ/REDCODE LQ/REDCODE MQ
	8192 x 4320 up to 59.94 fps
	6144 x 3240 up to 96 fps*
	4096 x 2160 up to 240 fps*
	2048 x 1080 up to 480 fps*
Video Output	4096 x 2160 up to 60.00 fps
	2048 x 1080 up to 60.00 fps
Fast-/Slow-Motion Support	Yes
Gamma Curve	RED IPP2
Built-In Microphone	Mono
Audio Recording	2-Channel, 24-Bit at 48 kHz
Interface
Media/Memory Card Slot	Single Slot: CFexpress Type B (CFast 2.0)
Internal Storage	No
Video I/O	2x BNC (12G-SDI) Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Headphone Output
	1x 5-Pin LEMO Mic/Line Input (+48 V Phantom Power)
Power I/O	1x LEMO 6-Pin (11 to 17VDC) Input
Other I/O	1x USB-C Video/Data/Control
	1x 9-Pin (RS-232, Genlock) Data/Control Input/Output
	1x 9-Pin (Timecode)
Wireless	Wi-Fi
Mobile App Compatible	No
Global Positioning (GPS, GLONASS, etc.)	No
Monitor
Display Type	Primary Monitor: Fixed 2.4" Non-Touchscreen LCD
Viewfinder
Type	Optional, Not Included
Power
Battery	Micro V-Mount
Environmental
Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 122°F / -20 to 50°C up to 85% Humidity
General
Tripod Mount	1/4"-20 Female (Bottom)
	3/8"-16 Female (Bottom)
Accessory Mounting Thread	28x 1/4"-20
Netflix Approved	Yes
Materials	Aluminum
Dimensions (W x H x D)	6.18 x 4.25 x 3.94" / 157 x 108 x 100 mm
Weight	4.03 lb / 1.8 kg (Body Only)

RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card

Physical
Quantity	1
Card Type	CFexpress Type B
Storage Capacity	2 TB
Bus Type	PCI-Express 3.0
Read Speed	Maximum: 1785 MB/s
	Sustained: 1785 MB/s
Write Speed	Maximum: 1550 MB/s
	Sustained: 1300 MB/s
Operating Conditions	14 to 158°F / -10 to 70°C
Storage Conditions	-4 to 185°F / -20 to 85°C
Certifications	CE, Kcc, RCM, REACH, RoHS, UKCA

RED DIGITAL CINEMA CFexpress Card Reader

Media Card Reader	1x CFexpress Type B (CFexpress 2.0 / PCIe 3.0 x4)
Host Connection	USB-C 3.2 Gen 2x2 via Integrated Cable, USB-A Adapter Included
Power Source	Bus Powered
Dimensions	3.7 x 2.6 x 0.5" / 95 x 65 x 12 mm
Weight	4.2 oz / 120 g

RED DIGITAL CINEMA REDVOLT MICRO-V Battery (98Wh, V-Mount)

Battery
Battery Type	1x V-Mount
Battery Capacity	98 mAh
Output Voltage	14.8 VDC
Battery Chemistry	Lithium-Ion
Power I/O	1x D-Tap/P-Tap Female Output
	1x USB-A Female Output
Accessory Mounting Thread	No
Dimensions	3.9 x 2.8 x 1.9" / 99.8 x 71.6 x 49.2 mm
Weight	1.2 lb / 544.3 g

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge

Display
Panel Type	LCD
Display Size	7.0" / 17.8 cm
Screen Resolution	1920 x 1200
Aspect Ratio	16:9
Viewing Angle	160°
Touchscreen	Yes
Maximum Brightness	1300 nits / cd/m2
Contrast Ratio	1250:1
Color Support	1.07 Billion Colors (8-Bit+FRC)
Pixels Per Inch (ppi)	322 ppi
Finish	Glossy
Color Gamut	100% DCI-P3
Inputs / Outputs
Inputs/Outputs	1x USB-C Camera Input
Power Consumption	18.3 W (Maximum)
General
Operating Conditions	32 to 100°F / 0 to 38°C up to 85% Humidity
Storage Conditions	32 to 248°F / 0 to 120°C up to 85% Humidity
Tripod/Accessory Mounting	Top/Bottom/Right/Left
	1x 1/4"-20 Female
Material of Construction	Aluminum
Dimensions	7.1 x 4.7 x 1.1" / 180 x 118.7 x 28.8 mm
Weight	1.25 lb / 568.00 g

RED DIGITAL CINEMA V-RAPTOR Tactical Top Plate with Battery Adapter Plus (V-Mount)

Physical
Camera Compatibility	RED V-RAPTOR
Plate Front / Battery Mount	V-Mount
Number of Battery Bays	1
Accessory Mounting	1/4"-20 Female
	3/8"-16 Female
Inputs/Outputs	1x LEMO 6-Pin Output
	1x D-Tap/P-Tap Output
	2x LEMO 2-Pin Output
Adapter / Cable	1 x LEMO 2-Pin (Built-In)

RED DIGITAL CINEMA V-RAPTOR Top Handle with Extensions

Environmental
Item Type	1x Handgrip for Top Side
Rotation	No
Built-In Controls	Remote Trigger
Main Attachment	2x 1/4"-20 Male Screw (Included)

	Camera Compatibility
	RED V-RAPTOR
Additional Mounting	Multiple 1/4"-20 Female Thread
	Multiple 3/8"-16 Female Thread
Materials	Aluminum, Wood
Dimensions	6.3 x 2.6 x 2.4" / 159.5 x 66.8 x 60 mm
Weight	8.67 oz / 245.93 g

RED DIGITAL CINEMA V-RAPTOR Expander Blade

Environmental
Item Type	1x Handgrip for Top Side
Rotation	No
Built-In Controls	Remote Trigger
Main Attachment	2x 1/4"-20 Male Screw (Included)

	Camera Compatibility
	RED V-RAPTOR
Additional Mounting	Multiple 1/4"-20 Female Thread
	Multiple 3/8"-16 Female Thread
Materials	Aluminum, Wood
Dimensions	6.3 x 2.6 x 2.4" / 159.5 x 66.8 x 60 mm
Weight	8.67 oz / 245.93 g

RED DIGITAL CINEMA V-RAPTOR Quick Release Platform Pack

General
Compatibility	RED DSMC3 V-RAPTOR
Power
Power Source	Camera
Physical
Mounting	Multiple ARCA
Operating Conditions	32 to 72°F / 0 to 40°C
Storage Conditions	-4 to 122°F / -20 to 50°C
Dimensions	5.2 x 1.9 x 1.3" / 131.5 x 47.5 x 32.5 mm (Expander Blade)
	4.6 x 2 x 0.8" / 117 x 50 x 20 mm (ARCA Plate)
Weight	3.48 oz / 98.75 g (Expander Blade)
	9.3 oz / 262.9 g (Expander Plate and ARCA Plate)

RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter

General
Compatibility	RED V-RAPTOR
Inputs/Outputs
Audio I/O	2x XLR 3-Pin Line/Mic Input
	1x DSMC3 RED 5-Pin Line/Mic Output
Power
Power Source	Camera
Physical
Mounting	Bottom: 1x 3/8"-16
Material of Construction	Aluminum, Rubber
Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 122°F / -20 to 50°C
Dimensions	2.54 x 1.7 x 1.31" / 64.52 x 43.2 x 33.27 mm
Weight	7.9 oz / 224 g

RED DIGITAL CINEMA Side Ribs for V-RAPTOR

General
Compatibility	RED DIGITAL CINEMA Tactical Top Plate
Physical
Mounting	Multiple 1/4"-16 Threads
	3x 3/8"-16 Threads
	1x Standard Rosette
Color	Black
Material of Construction	Aluminum
Dimensions	5.2 x 2 x 1.7" / 133 x 51.5 x 42.6 mm
Weight	5.9 oz / 168.6 g
