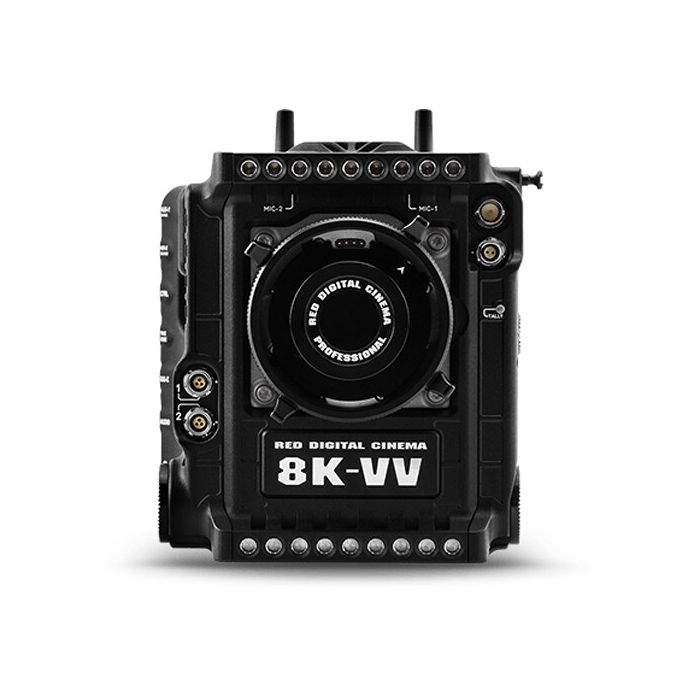

RED V-RAPTOR XL 8K VV (V-Lock)
by RED
Dostupnost:
Isporuka 14-20 dana
SKU
710-0346
35.4MP 8K VV Sensor, up to 8K120 Video
Purpose-Built Unified Body
Interchangeable PL Mount Included
V-Mount Battery Plate
49.125,00 €
39.300,00 €
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- RED DIGITAL CINEMA V-RAPTOR XL 8K VV Cinema Camera (V-Mount)
- V-RAPTOR XL PL Mount
- V-RAPTOR XL PL Mount Shim Pack
- AC Power Adapter (270W)
- 3-Pin XLR to 4-Pin LEMO 2B Power Cable (10')
- RED Logo Sticker
The V-mount V-RAPTOR XL 8K VV Camera from RED DIGITAL CINEMA offers up to 8K VV multiformat video capture, REDCODE raw and Apple ProRes recording, and 1080p streaming in a streamlined form featuring an array of interfaces suitable for high-end crew use. This follow-up to the V-RAPTOR incorporates internal ND filters and an interchangeable lens mount, and it includes an ARRI PL mount. Its industry-standard interface incorporates three 12G/6G/3G-SDI outputs, both 12 and 24V power outputs, timecode and genlock ports, and a V-mount battery plate.
Built-In Pro Interfaces
- Designed for professional crew use with integrated auxiliary power and mounting points for attaching multiple high-end camera accessories
- Built-in wireless genlock and timecode
- Multiple video outputs, including 12G/6G/3G-SDI
Interchangeable Lens Mount
Includes an ARRI PL lens mount which can be swapped for a separately available Canon EF mount, enabling you to make use of a large variety of lenses
Internal ND Filters
Motorized clear and 2 to 7-stop ND filters with 1/3, 1/4, and 1-stop increments provide precision exposure control
Streamlined Form
The built-in interfaces lend the V-RAPTOR XL camera rig a streamlined, accessible form
Imaging | |
Lens Mount | ARRI PL |
Sensor Resolution | Effective: 35.4 Megapixel (8192 x 4320) |
Sensor Type | 40.96 x 21.6 mm (Vistavision) CMOS |
Image Stabilization | None |
Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128) ND Filters |
Internal Filter Holder | No |
Capture Type | Video Only |
Exposure Control | |
Shutter Type | Electronic Rolling Shutter |
Advertised Dynamic Range | 17 Stops |
Internal Recording Modes | REDCODE HQ |
8192 x 4320 up to 59.94 fps | |
6144 x 3240 up to 96 fps | |
4096 x 2160 up to 239.76 fps | |
2048 x 1080 up to 480 fps | |
REDCODE MQ | |
8192 x 4320 up to 59.94 fps | |
6144 x 3240 up to 160 fps | |
4096 x 2160 up to 239.76 fps | |
2048 x 1080 up to 480 fps | |
REDCODE LQ | |
8192 x 4320 up to 119.88 fps | |
6144 x 3240 up to 160 fps | |
4096 x 2160 up to 239.76 fps | |
2048 x 1080 up to 480 fps | |
REDCODE RAW | |
8192 x 4320 up to 119.88 fps | |
7168 x 3780 [140] | |
6144 x 3240 up to 160 fps | |
5120 x 2700 [192] | |
4096 x 2160 up to 239.76 fps | |
3072 x 1620 [320] | |
2048 x 1080 up to 480 fps | |
Sensor Crop While Recording | 8K (8192 x 4320) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw |
8K (8192 x 4320) in 1.25:1 / 1.3:1 / 1.5:1 / 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic | |
7K (7168 x 3780) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
7K (7168 x 3780) in 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic | |
6K (6144 x 3240) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
6K (6144 x 3240) in 1.25:1 / 1.3:1 / 1.5:1 When Recording in Raw / Anamorphic | |
5K (5120 x 2700) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
4K (4096 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
3K (3072 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
2K (2048 x 1080) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
Variable Frame Rates | 8K: Up to 119.88 fps |
8K (Windowed): Up to 150 fps | |
7K: Up to 140 fps | |
7K (Windowed): Up to 175 fps | |
6K: Up to 160 fps | |
6K (Windowed): Up to 200 fps | |
5K: Up to 192 fps | |
5K (Windowed): Up to 240 fps | |
DCI 4K: Up to 240 fps | |
DCI 4K (Windowed): Up to 300 fps | |
3K: Up to 320 fps | |
3K (Windowed): Up to 400 fps | |
DCI 2K: Up to 480 fps | |
DCI 2K (Windowed): Up to 600 fps | |
Gamma Curve | RED IPP2 |
Recording Limit | Unlimited |
Built-In Microphone Type | Mono |
Audio Recording | 2-Channel 24-Bit 48 kHz |
IP Streaming | MJPEG: 1920 x 1080 |
Interface | |
Media/Memory Card Slot | Single Slot: CFexpress Type B (CFast 2.0) |
Video I/O | 3 x BNC (12G-SDI) Output |
1 x BNC (3G-SDI) Output | |
1 x Proprietary Output | |
Audio I/O | 1 x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input |
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output | |
Power I/O | 1 x LEMO 4-Pin (19.5 to 34 VDC) Input |
2 x D-Tap (12 VDC up to 3 A) Output | |
1 x LEMO 2-Pin (12 VDC at 3 A) Output | |
1 x LEMO 2-Pin (12 VDC at 1.5 A) Output | |
1 x LEMO 2-Pin (12 VDC at 1 A) Output | |
2 x Fischer 3-Pin (12 VDC up to 3 A) Output | |
Other I/O | 1 x BNC (Genlock) |
1 x LEMO 5-Pin (Timecode) | |
1 x 9-Pin (Ethernet) Control/Data Input/Output | |
1 x USB-C | |
Wireless | 2.4 / 5 GHz Wi-Fi Video Output |
Global Positioning (GPS, GLONASS, etc.) | None |
Monitor | |
Size | 2.4" |
Display Type | Fixed LCD |
Viewfinder | |
Type | Optional, Not Included |
Focus | |
Focus Type | Auto and Manual Focus |
Environmental | |
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 122°F / -20 to 50°C |
Storage Humidity | 0 to 85% |
General | |
Battery Type | V-Mount |
Tripod Mounting Thread | None |
Material of Construction | Aluminum |
Dimensions (W x H x D) | Not Specified by Manufacturer |
Weight | 7.99 lb / 3.62 kg |
