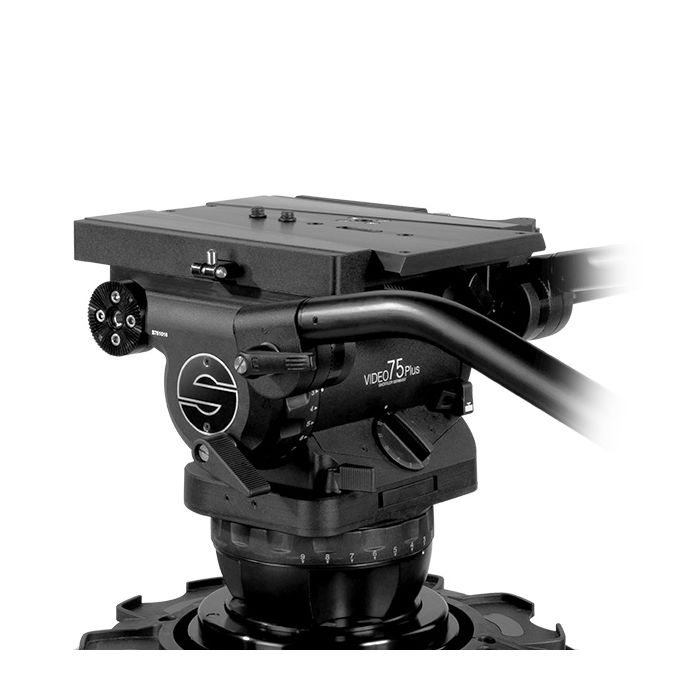

Sachtler Video 75 Plus Studio
by SachtlerIt comes with a threaded connection for a teleprompter bracket, and a maximum load capacity of 85 kg. It's a real all-round talent for the studio and OB.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Sachtler Video 75 Plus Studio Fluid Head
- 1x Right Telescopic Pan Bar
- 1x Left Telescopic Pan Bar
- Quick Release / Wedge Plate
The Video 75 Plus Studio boasts a outstanding payload range of 12 to 85 kg / 25 to 190 lb. Suitable for a variety of camera configurations and flexible applications in both EFP and studio operation, this all-round talent offers users a broad palette of solutions.
The Video 75 Plus Studio displays an 24 step plus Boost Button counterbalance which can be adjusted easily and safely in 12 stages with the well known Sachtler dial. Fine-tuning is achieved via a half step function, which can either be engaged or disengaged. And for even more precise adjustment the balance plate has a sliding range of up to 120mm / 4.7", and up to 145mm / 5.7" for the studio version. This allows you to safely balance the camera at any tilt angle.
The Video 75 Plus Studio fluid head has a modular design, allowing you to change it for different applications. Various configuration options are available like; 150mm Ball Base with the Touch & Go quick release system and camera plate 35 wedge or Flat Base with the V-shaped wedge plate, or you can even mount it on a Mitchell Mount base.
- Frictionless leak proof fluid damping with Nine levels of drag
- A prerequisite for perfect pictures is a panning movement without jerks and vibrations. Sachtler's patented damping system takes everything is stride. The individual modules are frictionless and contain no hydraulic oil. This means they are permanently leak proof.
The damping action of heads is identical across both horizontal and vertical planes and offers you nine steps of drag, for smooth camerawork under the toughest of rough conditions. You can completely disengage the drag for fast panning without affecting the dynamic counterbalance system.
- Touch & Go Quick Release / Automatic Locking System
- Stop wasting time by fumbling around with clumsy attachments, or bother screwing the camera to head and then having to unscrew it again. With the Touch & Go system invented by Sachtler, the camera plate is secured to the camera, while the mating balance plate is mounted on the fluid head.
All you need to do is slip the camera into position, engage the mechanism, and the camera is locked firmly in place, when finished just disengage the latch and go. When you set up the camera for the next shot you still have all the original settings. Also features a safety lock lever that prevents inadvertent disengagement of the camera latch.
- Sliding Balance Plate
- The sliding camera mount and plate with a 4.7-inch (150mm Ball Base) or 5.7-inch (Flatbase) sliding range, allows you to compensates precisely for a variety of configuration weights. Ensuring perfect balance across the horizontal plane. Most importantly, once adjusted, the settings cannot be lost.
- 24 Step dynamic counterbalancing system with Boost Button
- Built with torsion springs the dynamic counterbalancing system compensates for torques as the camera tilts, preventing the camera from inadvertently tipping, and ensuring that it is positioned securely at any tilt angle. Freeing you to concentrate fully on your camerawork.
Its 24-step counterbalance allows adjustments via dial, in 12 stages and fine tune by half step function, and can be activated and deactivated individually. Independent from the damping system, they work silently and without the need for maintenance.
- Safe at any temperature
- Pressure or temperature does not influence the damping system, it has an operating range from
-40°F to +140°F, and works without friction. Shoot wherever you want, from torrid heat to cold climates.
- Vibrationless vertical / horizontal brakes, for maximum safety in fast-paced reporting situations.
- Built-in illuminated bubble for horizontal leveling, uses a conventional battery and ensures easy leveling even under unfavorable lighting conditions.
- Load capacity of: 165 lb.
| Load Capacity | 26 to 187 lbs (12 to 85 kg) |
| Diameter/Thread | Flatbase |
| Counter Balance System | Torsion Springs |
| Counter Balance Range | 24 Steps plus Boost Button |
| Center of Gravity | 150mm |
| Quick Release/Wedge Plate | Yes (Cat #3080) |
| Balance Plate | Yes, 5.7" Sliding Range |
| Tilt Drag | 10 steps, 0 to 10 |
| Tilt Range | +90° to -60° |
| Tilt Lock | Yes |
| Spring Loaded Counter Balance | 10 steps, 0 to 10 |
| Pan Range | 360° |
| Pan Lock | Yes |
| Leveling Bubble/Illuminated | Yes / Illumination |
| Temperature Range | -40° to 140°F |
| Weight | 28.4 lbs |
