Sennheiser ew 100 G4-CI1-1G8

by Sennheiser
Dostupnost: Isporuka 7-10 dana
SKU
SEN-509930

EM 100 G4 Rackmount Receiver, SK 100 G4 Bodypack Transmitter, Ci 1 Instrument Cable
1680 Tunable Frequencies Across 42 MHz

678,75 € 543,00 €

Sadržaj pakiranja

  • GA 3 Rackmount Kit for G3 100/300/500 Series
  • EM 100 G4 Wireless UHF True Diversity Rackmount Receiver
  • Power Supply
  • 2 x Rod Antennas
  • RJ 10 Cable
  • GA 3 Rackmount Kit for G3 100/300/500 Series
  • SK 100 G4 Wireless Bodypack Transmitter
  • 2 x AA Batteries
  • CI1 1/8" Mini to 1/4" Male Jack Guitar Connecting Cable

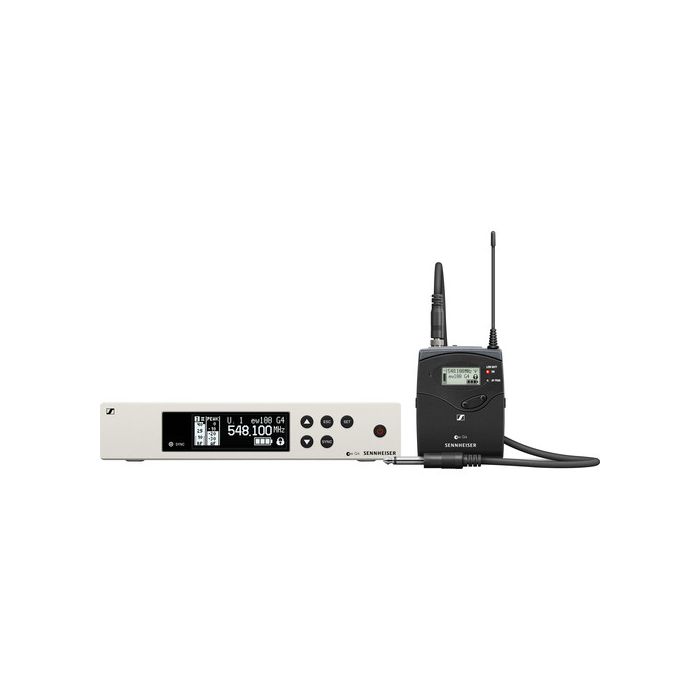

The ew 100 G4 Wireless Instrument System with Ci 1 Guitar Cable from Sennheiser is the latest addition to their evolution family of wireless kits that is fully compatible with all previous series. This system includes an EM 100 G4 UHF diversity rackmount receiver, an SK 100 G4 bodypack transmitter, a Ci 1 instrument cable with 1/4" phone connector, a GA3 rackmount kit, and an RJ10 linking cable. It is designed to provide dependable wireless performance for guitars and other instruments for rehearsals, recording, stage, and other applications.

The transmitter and receiver synchronize channel and frequency at the touch of a button. The bodypack allows you to charge the (optional) rechargeable battery pack while it remains in the transmitter. A high-contrast LCD display allows for easy operation under dimly-lit conditions and its user-friendly menu makes operation quick and easy.

In addition, the ew 100 G4 also includes some handy guitar-specific features. The system's cable emulator feature allows you to adjust virtual cable lengths to get sound-response similar to a cable. Another practical feature for guitarists is the built-in guitar tuner, right on the display. A built-in 5-band EQ allows you to fine tune your sound even further. Bass players, in particular, will be pleased with the enhanced AF frequency response: it starts at 25 Hz, which will especially please players with 5-string bass guitars.

Receiver
Frequency Band G8: (1785 to 1800 MHz)
Type of Receiver EM 100 G4 half-rack mountable true diversity UHF
Receiving Frequency Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching Bandwidth Up to 42 MHz
Nominal/Peak Deviation ±24 kHz / ±48 kHz
Receiver Type True diversity
Sensitivity < 2.5 μV for 52 dBA (with HDX, peak deviation)
Adjacent Channel Selectivity Typically ≥ 65 dB
Intermodulation Attenuation Typically ≥ 65 dB
Blocking ≥ 70 dB
Squelch Low: 5 dB µV
Middle: 15 dB µV
High: 25 dB μV
Pilot Tone Squelch: Can be switched off
Antenna Inputs 2 x BNC sockets
Compander Sennheiser HDX
EQ Presets Switchable, act on line and monitor outputs

Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
Signal to Noise Ratio ≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD) ≤ 0.9%
AF Output 1/4" (6.3 mm) jack socket unbalanced, +12 dBu
XLR socket balanced, +18 dBu
Output Range AF Out: 48 dB (3 dB steps)
Temperature Range 14 to 131°F (-10 to 55°C)
Power Supply 12 VDC, 300 mA
Dimensions (W x L x H) 7.48 x 8.35 x 1.69" (190 x 212 x 43 mm)
Weight 2.16 lb (980 g)
