Sennheiser EW-D CI1 SET (S7-10)
by Sennheiser134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

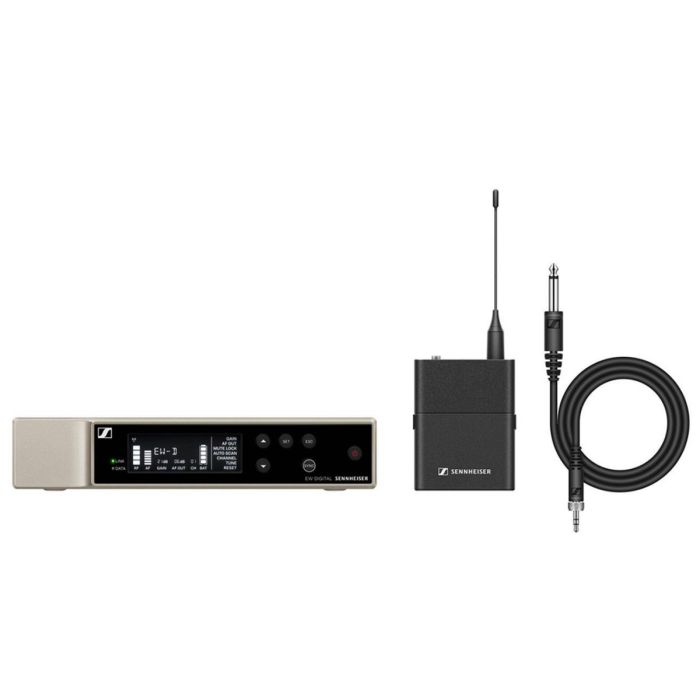

Sadržaj pakiranja
- EW-D EM rack receiver
- EW-D SK bodypack transmitter
- CI 1 instrument cable
- 2 rod antennas
- power supply with country adapters
- rackmount set
- 4 rubber feet
- quick guide
- safety guide
- manufacturer declaration sheet
Raising the bar
Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market.
Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.
Equidistant Spacing – simpler than it sounds
Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems.
Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other.
This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.
Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.
| Frequency range | 662 - 693.8 MHz | ||||
| THD, total harmonic distortion |
≤ -60 dB for 1 kHz @ -3 dBfs input level |
||||
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) | ||||
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs | ||||
| Operating relative humidity | 5 - 95 % (non-condensing) | ||||
| Dimensions | 212 x 44 x 189 mm | ||||
| Weight | approx. 1000 g (without antennas and power supply) | ||||
| Current consumption | ≤ 300 mA | ||||
| Audio output level | 18 dBu max. | ||||
| Transmission power | BLE: max. 10 mW EIRP | ||||
| Input voltage range | 11 - 13 V ⎓ | ||||
| Dimensions | 63 x 80 x 20 mm (without antenna) | ||||
| Weight | approx. 120 g | ||||
| Power supply | 2 AA batteries 1.5 V (alkaline manganese) | ||||
| or BA 70 rechargeable battery pack | |||||
| Current consumption | < 300 mA | ||||
| Input voltage range | 2.0 - 4.35 V | ||||
| Transmission power | Audio link: 10 mW | ||||
| ERP (Range Y1-3): 12 mW ERP | |||||
| BLE: max. 10 mW EIRP | |||||
