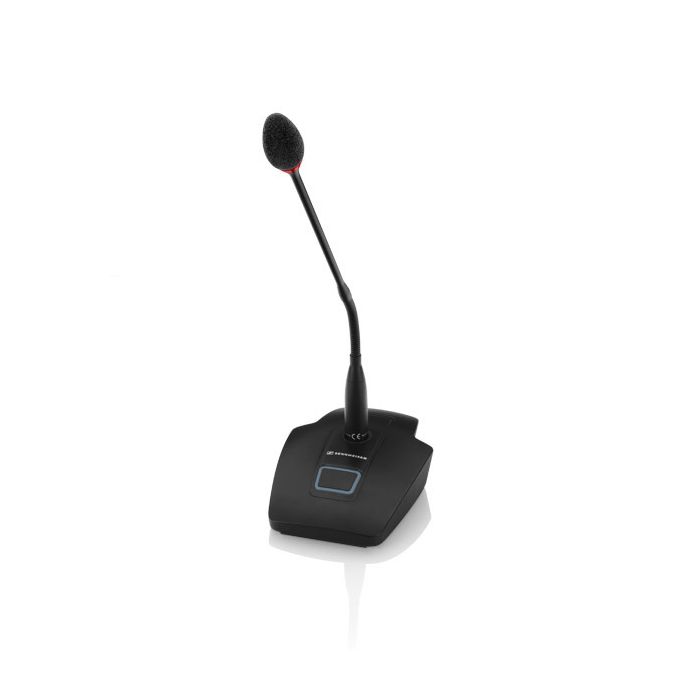

Sennheiser MAT 153-S B

by Sennheiser
Raspoloživost: Isporuka 14-20 dana
SKU
SEN-505626

The MAT 153-S is a sturdy, wired table stand that provides a stable base for XLR-5 gooseneck microphones. It has a user-friendly microphone button with a two-color status display that provides quick visual feedback on whether the microphone is active or muted.

1.500,00 kn 1.200,00 kn

Sadržaj pakiranja

  • MAT 153-S table stand

Featuring a rugged housing, the functionally and unobtrusively designed MAT 153 provides a solid ground for gooseneck microphones with lighting ring.

Connector:
MIC IN: XLR-5F
MIC OUT: XLR-3M
3x terminal

  • Powered with standard XLR-3 cable

Color
black
LED light ring: red / green
Connector
Mic in:
XLR-5F, Pin assignment: 1 = gnd, 2 = hot (+), 3 = cold (−), 4 = LED (−), 5 = LED (+)
Connector
Mic out:
XLR-3M, Pin assignment: 1 = gnd, 2 = +, 3 = −
Connector
Clip contact:
Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
Weight
approx. 1,206 g
Current consumption
3.7 mA
Output voltage
Logic out:
high level output voltage > 2.4 V, low level output voltage < 0.4 V
Output voltage
Logic in:
high level input voltage > 2.0 V, low level input voltage < 0.8 V
