Sennheiser XSW 1-ME3-BC
by SennheiserSK-XSW Bodypack Transmitter
EM-XSW 1 UHF Receiver
ME3-II Headmic
Antenna-Switching Diversity Reception
Automatic Frequency Management
Selectable UHF Frequencies
Up to 10 Compatible Channels
Integrated Antennas
2 x AA Batteries are Included
NT 12-5 CW Power Supply
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Sennheiser XSW 1-ME3-A UHF Headmic Set (BC: 670-694 Mhz)
- Sennheiser ME 3-II Headmic with Cardioid Capsule for Wireless Systems
- Foam Windshield
- NT12-5 CW Power Supply
- 2 x AA Batteries

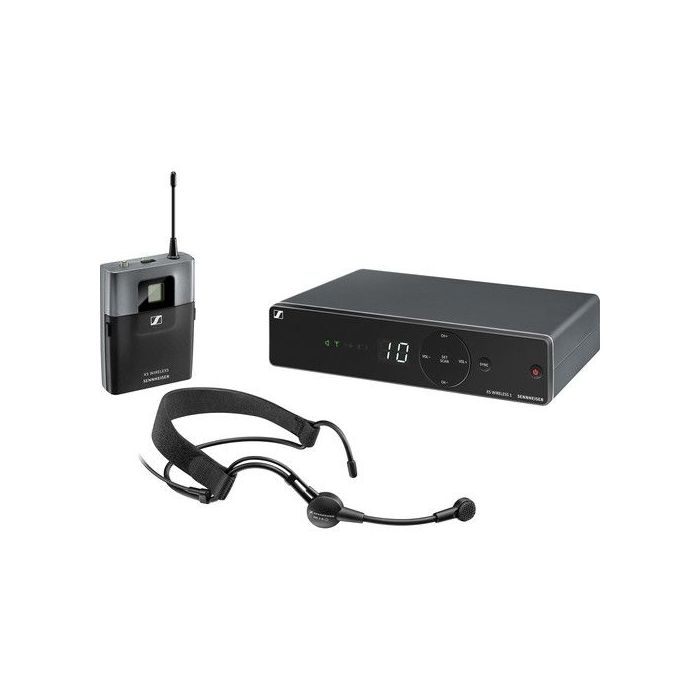

The XSW 1-ME3-A UHF Headmic Set from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to keep your hands free and capture audio for live sound applications and performers who dance and sing.
The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and a headset microphone. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.
- Featuring Sennheiser's evolution ME 3-II headmic
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
- Diversity reception
| Modulation | Wideband FM |
| Frequency Range | BC: 670-694 Mhz |
| Switching Bandwidth | Up to 24 MHz |
| Signal to Noise Ratio | ≥ 103 dBA |
| Total Harmonic Distortion | ≤ 0.9% |
| Temperature Range | Operation: 32 to 104°F (0 to +40°C) |
| Storage | -4 to 158°F (-20 to 70°C) |
| Transmitter Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Principle | Double superheterodyne |
| Diversity | Antenna switching diversity via internal antennas |
| Sensitivity | < 3 μV at 52 dBA RMS S/N (at peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |
| Max Output Voltage | At Peak Deviation, 1 kHz AF 1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu XLR Socket (balanced): +12 dBu |
| Adjustment Range | Audio: 45 dB, adjustable in 5-dB steps |
| Power Supply | 12 VDC nominal, 300 mA |
| Squelch | Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Material of Construction | ABS housing |
| Dimensions | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) |
| Weight | 12 oz (340 g) |
| Output Power | 10 mW |
| Frequency Response | Line: 50 Hz to 16 kHz Mic: 50 Hz to 16 kHz |
| Audio Input | 1/8" (3.5 mm) jack socket |
| Input Voltage | Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain |
| Power Supply | 2 x AA batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Adjustment Range | Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps |
| Material of Construction | Rugged ABS housing |
| Dimensions | 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm) |
| Weight | 3.4 oz (95 g) |
| Microphone Type | Condenser, pre-polarized |
| Sensitivity | 1.6 mV/Pa |
| Polar Pattern | Cardioid |
| Max SPL | 150 dB |
| Package Weight | 2.81 lb |
| Box Dimensions (LxWxH) | 13.7 x 13.6 x 3.45" |
