Sennheiser XSW 2-865-GB
by SennheiserFor Live Sound Applications
e865 Evolution Microphone Capsule
True Diversity Receiver
Up to 12 Compatible Channels
External Antennas
Automatic Frequency Synchronization
Remote Channel for Easy Setup
Tunable Over a Range of UHF Frequencies
Includes Rackmount Kit
AA Batteries, Power Supply & Pouch
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja

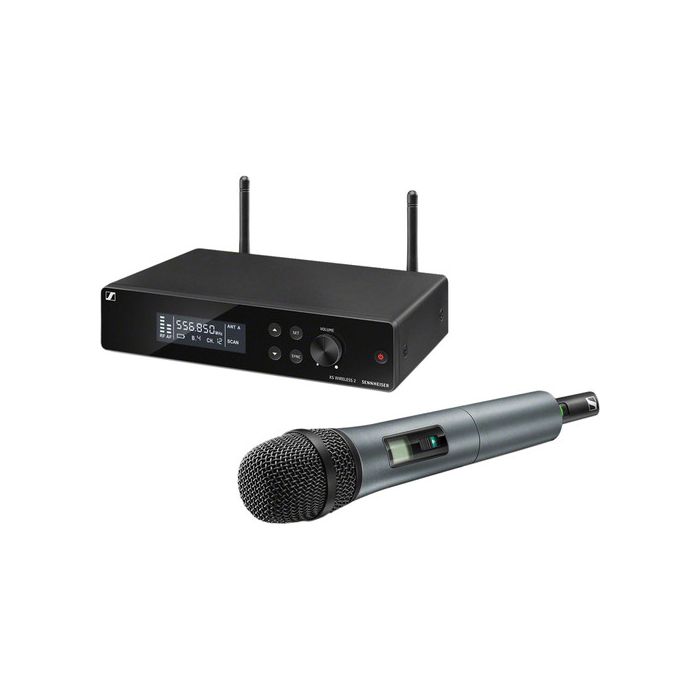

- Sennheiser XSW 2-865-GB Wireless Handheld Microphone System with e865 Capsule (GB: 606-630 MHz)
- EM-XSW 2 Receiver
- SKM 865-XSW Handheld Transmitter
- Sennheiser MZQ1 Microphone Clamp for SKM100, 300 and 500
- NT 12-5 CW Power Supply
- Rackmount Kit
- Protective Pouch
- 2 x AA Batteries
The XSW 2-865-GB Wireless Handheld Microphone System with e865 Capsule features a true diversity receiver, and a handheld transmitter with an intuitive LCD display. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for singers and presenters.
The unit has automatic frequency management and synchronization so you don't have to scramble to find an available channel. The transmitter's e865 capsule uses a supercardioid polar pattern, which is part of the evolution series and designed for withstanding tougher, live-stage conditions.
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization
Remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels
| Modulation | Wideband FM |
| Frequency Range | GB: 606-630 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Frequencies | Adjustable in 25-kHz steps 8 frequency banks, each with up to 12 factory-preset channels |
| Signal to Noise Ratio | ≥ 103 dBA |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Temperature Range | Operation: 32 to 104°F (0 to +40°C) Storage: -4.0 to 158°F (-20 to +70°C) |
| Transmitter Synchronization | 2.4 GHz, low power OQPSK (only active during synchronization) |
| Principle of Operation | Double superheterodyne |
| Diversity Method | True diversity |
| Sensitivity | < 3 µV at 52 dBA rms S/N at (peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |
| Maximum AF Output Voltage | At peak deviation, 1 kHz AF 1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBu XLR Socket (Balanced): +12 dBu At peak deviation, 1 kHz AF) |
| Adjustment Range | Audio: 40 dB, adjustable in 5-dB steps |
| Power Supply | Nominal Input: 100 to 240 VAC 50/60 Hz Input Current: 200 mA (Max.) Nominal Output: 12 VDC 300 mA |
| Squelch | Adjustable from 3 dBμ V to 28 dBμ V (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Housing Material | Rugged metal housing |
| Dimensions | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) |
| Weight | 24 oz (680 g) |
| RF Output Power | 10 mW |
| AF Frequency Response | 80 Hz to 16 kHz |
| Power Supply | 2 x AA size batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Microphone Type | Condenser, pre-polarized |
| Input Sensitivity | Capsule: 1.8 mV/Pa |
| Polar Pattern | Supercardioid |
| Sensitivity Adjustment | Range: 0 to -30 dB, adjustable in 10-dB steps |
| Housing Material | Rugged ABS housing |
| Dimensions | 10.2 x 2.0" (260 x 50 mm) approximate |
| Weight | 8.6 oz (245 g) approximate |
| Package Weight | 5.185 lb |
| Box Dimensions (LxWxH) | 13.75 x 13.6 x 3.45" |
