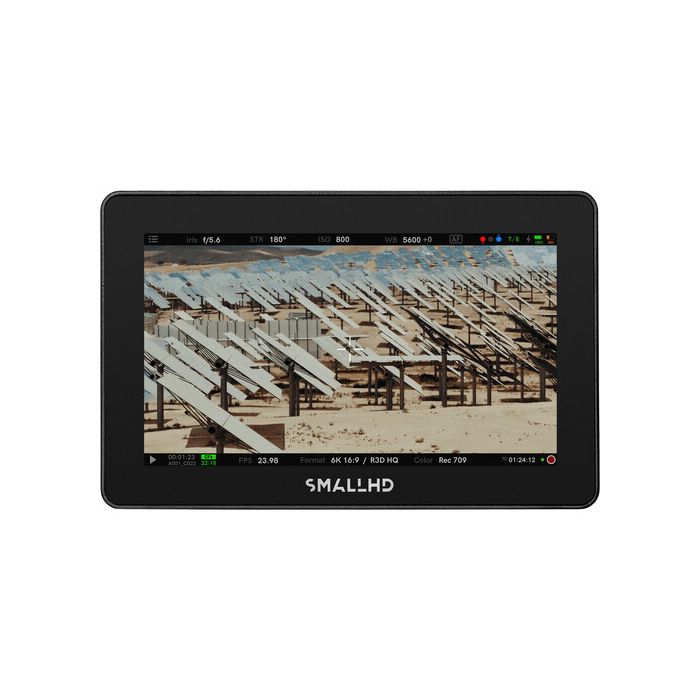

SmallHD Cine 5
by SmallHD5" 1920 x 1080 Touchscreen Display
2000 cd/m², 10-Bit LCD Panel, DCI P3
2-Pin Locking Power Input
5-Pin Locking USB for RED Camera Control
Side-Mounted Joystick, Back Button
Waveform / RGB Parade / Vectorscope
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- 1 x SmallHD CINE 5 Touchscreen On-Camera Monitor
Monitor your camera with the CINE 5 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 5" display suitable for indoor or outdoor use, the CINE 5 monitor supports various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.
The CINE 5 features a bright 2000 cd/m², 1920 x 1080 LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 5, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap, and the CINE 5 also adds a joystick on the side and a button on the back for ease of use. There is a 5-pin USB output to utilize optional RED camera control. The monitor can be powered using its 2-pin power input.
Key Features
Slim, lightweight, daylight-viewable, 5" touchscreen on-camera monitor with 2000 cd/m² brightness.
HDMI-to-SDI and SDI-to-HDMI cross conversion is supported.
Supports 10-bit 4:2:2 DCI-P3 color
The included PageOS 5 Toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), Advanced Teradek RT Overlays, and more. The PageOS 5 UI offers quick and repeatable setups and full control over all parameters and display tools.
Power via 2-pin power input.
Four 1/4"-20 mounting points on top, left, right, and back.
Optional RED camera control.
RED Control Features
Run/stop
Color controls
Exposure controls
Status
Color temperature
Video format
Playback
Shutter
Menu control
Software Features
Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch-zoom
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Dual zebra: Customizable
Waveform: Luma and RGB, customizable with region of interest highlighting
Vectorscope: Yes
RGB parade: Customizable
Histogram: Luma and RGB
Image capture: With dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
Image overlay: Opacity slider and blink setting
Audio meters: HDMI and SDI up to eight channels
Panel Type | LCD |
Display Size | 5.0" / 12.7 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:09 |
Touchscreen | Yes |
Maximum Brightness | 2000 cd/m2 |
Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
Pixels Per Inch (ppi) | 440 ppi |
Color Gamut | 100% DCI-P3 |
Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra |
Video I/O | 1 x HDMI 2.0 Input |
1 x HDMI 2.0 Loop Output | |
1 x BNC (3G-SDI) Input | |
1 x BNC (3G-SDI) Loop Output | |
Embedded Audio | HDMI: 8-Channel |
SDI: 8-Channel | |
Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | None |
Power I/O | 1 x LEMO 2-Pin (34 VDC) Input |
Other I/O | 1 x LEMO 5-Pin 2.0 Output |
Media/Memory Card Slot | None |
Video Format | HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC) |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080i: 120/119.88/100/60/59.94/50 | |
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 | |
576p: 200/100/50 | |
480p: 240/239.76/120/119.88/100/60/59.94 | |
480i: 240/239.76/120/119.88/100/60/59.94 | |
576i: 200/100/50 | |
SDI (10-Bit 4:2:2 YCC) | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 120/119.88/100/60/59.94/50 | |
720p: 60/59.94/50/30/29.97/25/24/23.98 | |
576i: 50 | |
480i: 59.94 | |
Video Signal Conversion | SDI to HDMI |
UHD 4K: 30/29.97/25/24/23.98 | |
1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98 | |
1080i: 120/119.88/100/60/59.94/50 | |
720p: 240/239.76 | |
HDMI to SDI | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080i: 120/119.88/100 | |
720p: 60/59.94/50/30/29.97/25/24/23.98 | |
480i: 59.94 | |
576i: 50 | |
Mounting | 4 x 1/4"-20 Female |
Material of Construction | Aluminum |
