SmallHD Cine 7 ARRI Kit

by SmallHD
Dostupnost: Isporuka 14-20 dana
SKU
MON-CINE7-ARRI

7" 1920 x 1200 Touchscreen Display
ARRI Camera Control Kit, Control Cable
1800 cd/m², 10-Bit IPS LCD Panel
8GB SD Card, Sun Hood, Power Cable

3.138,50 € 2.510,80 €

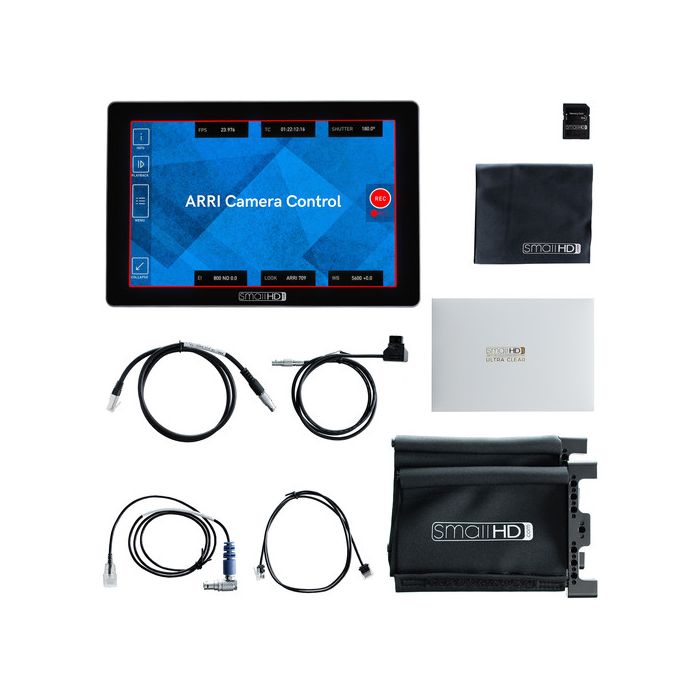

Sadržaj pakiranja

  • SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series)
  • SmallHD 2-Pin LEMO to D-Tap Power Cable (36")
  • SmallHD Dual L-Series Battery Plate for 702 Touch & Cine 7 Monitors
  • SmallHD Sun Hood for 702 Touch and Cine 7 Monitors
  • SmallHD Cine 7 Monitor Camera Control Kit for ARRI ALEXA Mini/Mini LF/AMIRA Cameras
  • UltraClear Screen Protector
  • 8GB SD Card
  • SmallHD Microfiber Cleaning Cloth

SmallHD Cine 7 Overview

Use the lightweight Cine 7 Touchscreen On-Camera Monitor ARRI Kit from SmallHD to provide professional monitoring for your ARRI ALEXA Mini, Mini LF, or AMIRA camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Cine 7 monitor, an L-series battery mount, a sun hood, a screen protector, an 8GB SD card, and the ARRI control kit that includes software, as well as control and power cables.

The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

The ARRI control software loads onto the monitor and allows you to control ARRI camera functions on your ARRI ALEXA Mini, Mini LF, or AMIRA camera such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The included control cables allow the monitor to connect to the camera.

The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive Swipe OS3, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery mount enables you to power the unit.

Features

  • Daylight-viewable, 7" touchscreen on-camera monitor with 1800 cd/m² brightness
  • ARRI camera control kit includes control and power cables as well as the ARRI control software
  • ARRI software works with ALEXA Mini, Mini LF, or AMIRA cameras to control functions such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more
  • Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
  • Supports up to 1080p60 video via full-size HDMI and 3G-SDI inputs
  • HDMI-to-SDI and SDI-to-HDMI cross conversion is supported
  • Uses SmallHD Swipe OS3 to organize and save customized function and settings pages
  • Power with an L-series battery plate
  • Four 1/4"-20 mounting points on top, left, right, and back
  • An 8GB SD card, screen protector, sun hood, and cleaning cloth are included

Software

  • Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
  • DSLR scale: Canon 5D Mk II and Canon 7D
  • Custom scale: Underscan only
  • Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
  • Image flip: Auto and manual
  • Image rotation: Auto and manual
  • Color focus assist: Adjustable style and intensity
  • Peaking: Adjustable intensity
  • False color: Spectrum, ARRI-style, and customizable
  • Dual zebra: Customizable
  • Waveform: Luma and RGB, customizable with region of interest highlighting
  • Vectorscope: Yes
  • RGB parade: Customizable
  • Histogram: Luma and RGB
  • Image capture: With dedicated button and image gallery
  • Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
  • LUT import: Via SD card or USB storage device
  • Image overlay: Opacity slider and blink setting
  • Audio meters: HDMI and SDI up to 8 channels
SmallHD Cine 7 Specs
Display
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Screen Area 5.95 x 3.72" / 15.11 x 9.45 cm
Resolution 1920 x 1200
Aspect Ratio 16:10
Touchscreen Yes
Maximum Brightness 1800 cd/m2
Contrast Ratio 1000:01:00
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 322 ppi
Color Gamut 100% DCI-P3
Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
Video I/O 1 x Micro-HDMI Input
  1 x Micro-HDMI Output
  1 x BNC (3G-SDI) Input
  1 x BNC (3G-SDI) Input/Output
Embedded Audio HDMI: 8-Channel
  SDI: 8-Channel
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x LEMO 2-Pin (34 VDC) Input
Other I/O 1 x Micro-USB 2.0
Wi-Fi None
Format Support
Video Format HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080i: 120/119.88/100/60/59.94/50
  720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
  576p: 200/100/50
  480p: 240/239.76/120/119.88/100/60/59.94
  480i: 240/239.76/120/119.88/100/60/59.94
  576i: 200/100/50
  SDI (10-Bit 4:2:2 YCC)
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080PsF: 30/29.97/25/24/23.98
  1080i: 120/119.88/100/60/59.94/50
  720p: 60/59.94/50/30/29.97/25/24/23.98
  576i: 50
  480i: 59.94
Video Signal Conversion SDI to HDMI
  UHD 4K: 30/29.97/25/24/23.98
  1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98
  1080i: 120/119.88/100/60/59.94/50
  720p: 240/239.76
  HDMI to SDI
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080i: 120/119.88/100
  720p: 60/59.94/50/30/29.97/25/24/23.98
  480i: 59.94
  576i: 50
Power
DC Input Power 6 to 16 VDC at 2.5 A
Battery Type 1 x L-Series
Mounting
Mounting 4 x 1/4"-20 Female
Environmental
Certifications CE, IC, RoHS
  *as per Manufacturer
Operating Temperature 30 to 100°F / -1 to 37°C
Storage Temperature 0 to 120°F / -17 to 48°C
General
Dimensions 7.1 x 4.7 x 1.3" / 18 x 11.9 x 3.3 cm
Weight 20 oz / 567 g
Packaging Info
Package Weight 3.62 lb
Box Dimensions (LxWxH) 10.2 x 8.5 x 5.8"
